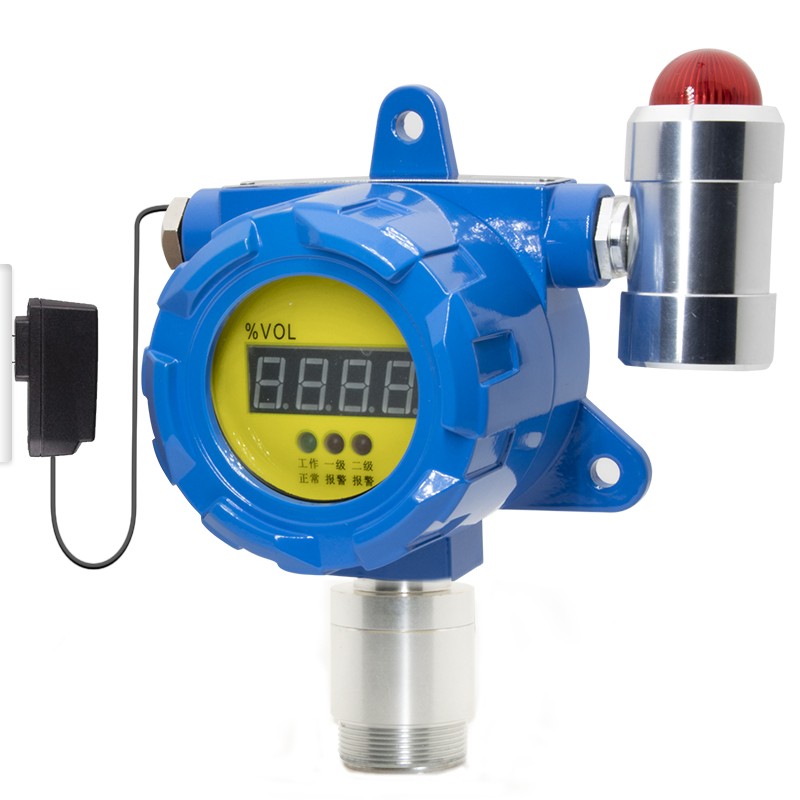

Fixed Gas Detector | BH-60

$ 94.87

Categories: Samsung Lcd/Led,

Description Fixed Gas Detector | BH-60 Product type BH-60 fixed gas detector/transmitter Explosion-proof grade Ex db IIC T6 Gb Response time ≦30S Power supply DC24V±10% Working temperature -20℃～50℃ Output current 4-20mA Working humidity 0-95%RH Contact output Free contact output, max power 1kW Single input 4~20mA and RS485 Installation method Wall-mounted Shell material Aluminum Dimensions 190x150x95mm（L×W×H） Model Range Resolution L-alarm H-alarm CO 0-1000ppm 1ppm 50ppm 150ppm O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol H2 0-1000ppm 1ppm 50ppm 150ppm H2S 0-100ppm 0.1ppm 10ppm 20ppm CH4 0-5%vol 0.01%vol 1%vol 2.5%vol C2H4O 0-100ppm 1ppm 10ppm 20ppm EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL HC 0-2%vol 0.01%vol 0 0 C2H6O 0-100ppm 1ppm 10ppm 20ppm NH3 0-100ppm 1ppm 10ppm 20ppm CL2 0-50ppm 0.1ppm 5ppm 10ppm O3 0-20ppm 0.1ppm 5ppm 10ppm SO2 0-20ppm 0.1 5ppm 10ppm PH3 0-20ppm 0.1ppm 5ppm 10ppm CO2 0-5%vol 0.01%vol 1%vol 2%vol NO 0-250ppm 1ppm 50ppm 150ppm NO2 0-20ppm 0.1ppm 5ppm 10ppm HCN 0-50ppm 0.1ppm 5ppm 10ppm HCL 0-50ppm 0.1ppm 5ppm 10ppm HF 0-10ppm 0.1ppm 3ppm 5ppm C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm Fixed Gas Detector | BH-60
