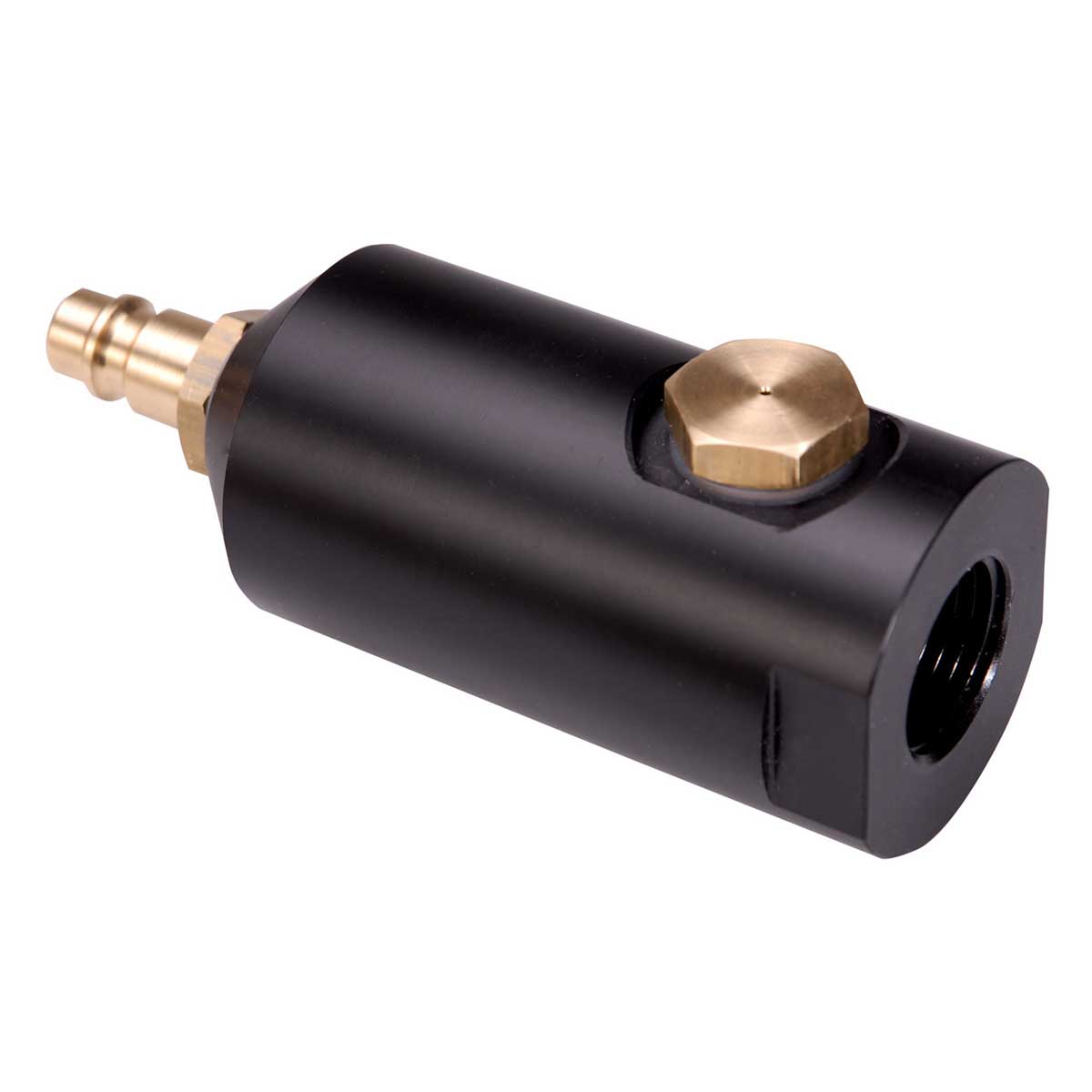

Description Dew Point Measurement Chambers MEASURING RANGE LDP-FCPB1 : -40 to 85 °C LDP-FCSB1 : -50…100 °C PRESSURE RESISTANCE LDP-FCPB1 : 16 Bar LDP-FCSB1 : 35 Bar AIR FLOW 1 l/min. @ 8 bar (LDP-FCB1) CONNECTION G1/2“ thread Compressed air fitting DN 7.2 (only LDP-FC) 2 x G 1/4“ thread (only LDP-MC) HOUSING Base unit LDP-FCPB1: POMBrass (fixed valve / quick connector) Base unit LDP-FCSB1: Stainless steel 1.4301 Brass (fixed valve / quick connector) DIMENSIONS 40 x 106 mm WEIGHT 140 g / 100 g Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost. Dew Point Measurement Chambers
