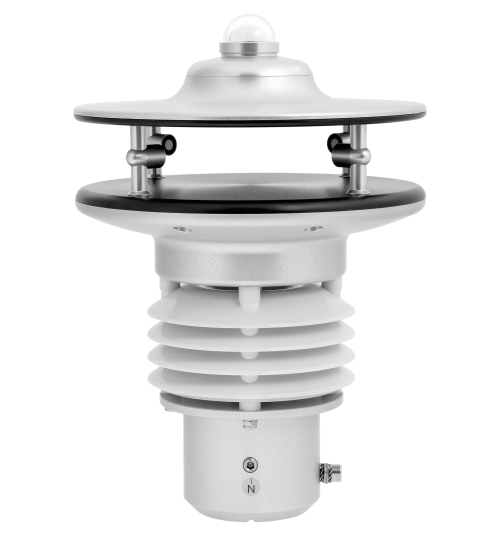

7 Parameter Weather Sensor | u[sonic]WS7

$ 92.87

Compare

Categories: Samsung Lcd/Led,

Description 7 Parameter Weather Sensor | u[sonic]WS7 Professional Line u[sonic]WS7 Id-No.: 00.16480.001000 Meas. range wind direction: 0…359.9° Meas. range wind speed: 0…65 m/s Meas. range air temperature: -40… 70 °C Meas. range rel. humidity: 0…100 % Meas. range barometric pressure: 300…1100 mbar Meas. range global radiation: 0…2000 W/m2 • global radiation within range of 285…3000 nm Accuracy wind direction: 1 m/s) RMSE Accuracy wind speed: ± 0.2 m/s RMSE (v < 10 m/s) • ± 2 % RMSE (10 < v < 65 m/s) Accuracy air temperature: ± 0.1K (0…60 °C) • ± 0.2K (-40…0 °C) > 2 m/s Accuracy rel. humidity: typ. ± 1.5 % (0…80 %) • ± 2 % (> 80 %) Accuracy barometric pressure: ± 0.5 mbar Resolution wind direction: 0.1° Resolution wind speed: 0.1 m/s Resolution air temperature: 0.1 °C Resolution rel. humidity: 0.1 % Resolution barometric pressure: 0.1 mbar Resolution global radiation: 0.2 W/m2 Non-linearity: Trigger threshold: 0.1 m/s Output: RS 485 · RS 422 (optional ·please specify when ordering: Id-No.: 97.16470.000422 Configuration RS 422 output) Protocols: NMEA 0183 Modbus RTU (optional ·please specify when ordering: Id-No.: 97.16470.000001 Configuration Modbus) SDI-12 (optional ·please specify when ordering: Id-No.: 97.16470.000002 Configuration SDI-12) -other protocols on request Interface: RS485 / 422 • SDI-12 (optional) Measuring rate: 0.1…10 Hz Operating conditions: -40… 70 °C (with heating: -50… 70) • 0…100 % r. h. Strongest wind impact velocity: 100 m/s Supply voltage: without heating: 6…60 VDC • with heating : 24 V AC/DC ± 20 % Current consumption: sensor: typ. 50 mA at 24 VDC • with heating: max. 10 A at 24 V AC/DC Meas. element global radiation: thermopile with high-quality thermo-electric cells Meas. principle global radiation: thermoelectric Heating data: factory configurable: 60 W Dimensions: Ø 199 mm • height 284 mm Housing: seawater resistant aluminium Protection class: IP 66 • IP 67 Weight: approx. 3.4 kg Standards: Salt fog: EN 60945 • Low voltage guideline: 72/23 EWG EMC standards / Electrical safety: DIN EN 60945 • DIN EN 61000-4-2, 3, 4, 6, 11 Accessories (order separately): 32.16470.060000 sensor cable, 15 m, 8-pol. M16-plug 7 Parameter Weather Sensor | u[sonic]WS7

7 Parameter Weather Sensor | u[sonic]WS7
