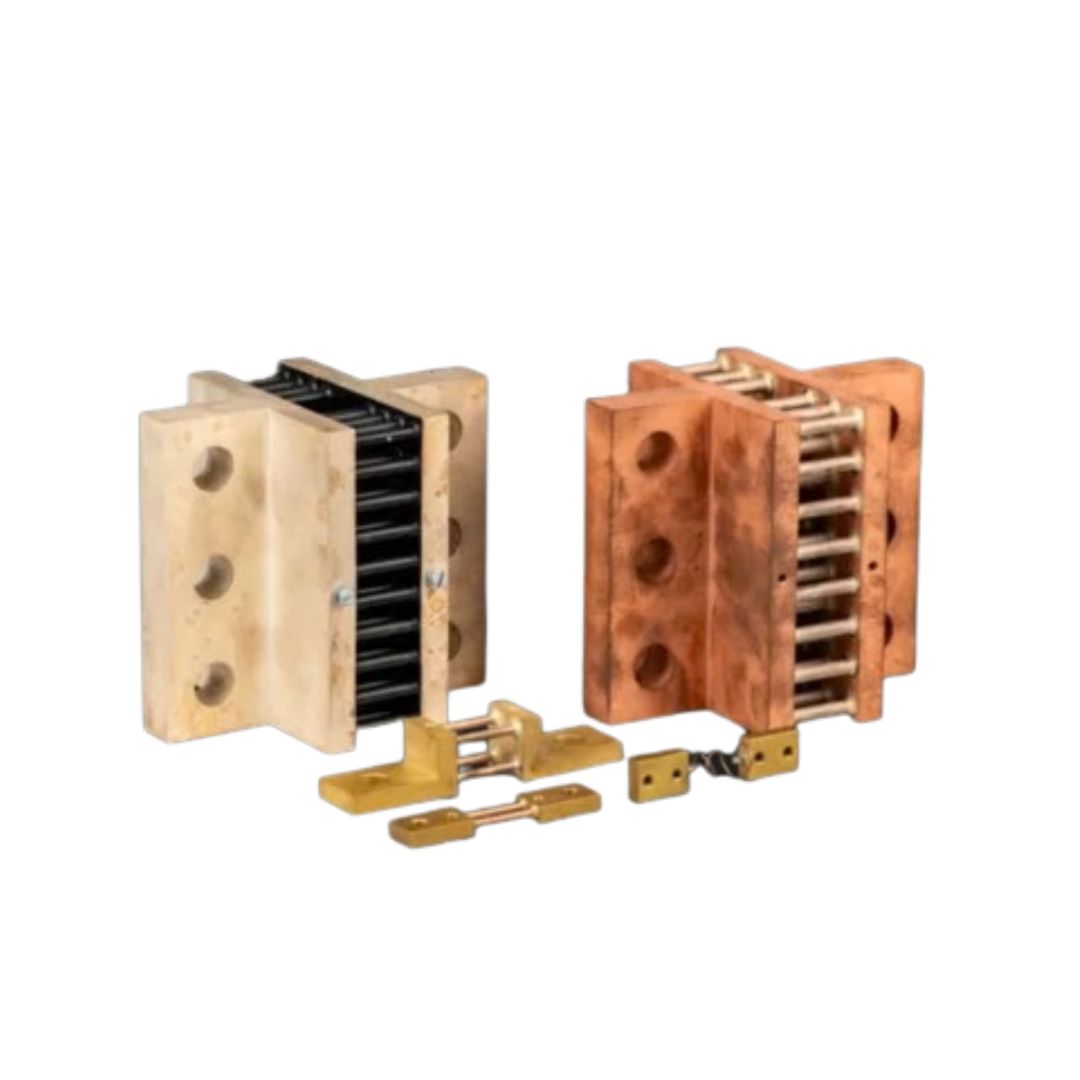

Description Shunts | SHU-B Specifications Material Resistor manganin Connector, SHU-B1 brass Connector, SHU-B2 brass/copper Connector, SHU-B3 copper Connections Current path see dimension drawings Voltage path M5 x 8 Safety Protection class IP00 Connector shape SHU-B1 flat profile, standard with insulating base (1…25 A) flat profile, optionally with insulating base (30…400 A) SHU-B2 L-section SHU-B3 T-section Standard designs Voltage drop 60 mV, 100 mV, 150 mV, 300 mV Overload withstand 1.2-fold rated current, permanently 5-fold rated current, max. 5 s (≤2000 A) 2-fold rated current, max. 5 s (>2000 A…10 000 A) Rated current 1…15 000 A Accuracy class 0.5 (optionally class 0.2 or 0.1) Insulating base 1…25 A (standard) 30…400 A (optional) Insulation cover cap available as accessory 1…400 A (60 mV) 1…25 A (100 mV) 1…25 A (150 mV) Operating conditions Operating temperature -10… 55°C | 14…131°F Storage temperature -25… 65°C | -13…149°F Humidity (no condensation) ≤75% Climatic conditions climatic class 3 according to VDE/VDI 3540 Applied standards DIN 43703 shunt dimensions EN 60051-1 Direct acting indicating analogue electrical measuring instruments and their accessories. Part 1: Definitions and general requirements common to all parts EN IEC 60051-8 Direct acting indicating analogue electrical measuring instruments and their accessories. Part 8: Special requirements for accessories Shunts | SHU-B
