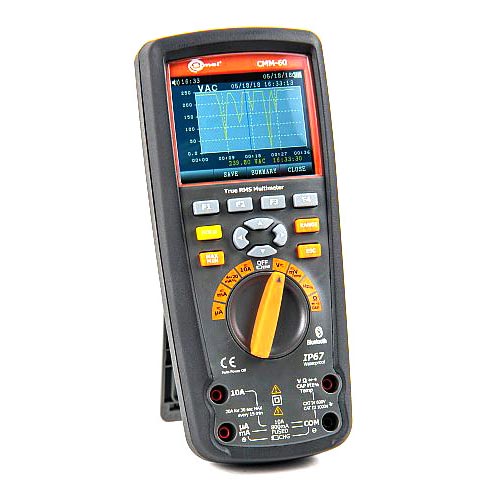

Description DC voltage measurement Range Resolution Accuracy 50.000 mV 1 0.001 mV ±(0.05% m.v. 20 digits) 500.00 mV 1 0.01 mV ±(0.025% m.v. 5 digits) 5.0000 V 0.0001 V 50.000 V 0.001 V 500.00 V 0.01 V ±(0.05% m.v. 5 digits) 1000.0 V 0.1 V ±(0.1% m.v. 5 digits) 1 Use REL mode to compensate offsets Internal impedance >10 MΩ VDC Overload protection: 1000 V DC/AC RMS True RMS (TRMS) voltage measurement Range Resolution Accuracy 50.000 mV 1 0.001 mV f = 50/60 Hz ±(0.3% m.v. 25 digits)f < 1 kHz ±(0.5% m.v. 25 digits)f < 5 kHz ±(3% m.v. 25 digits) 500.00 mV 1 0.01 mV 5.0000 V 0.0001 V 50.000 V 0.001 V 500.00 V 0.01 V 1000.0 V 0.1 V Frequency range 50…10 000 Hz All AC voltage ranges are specified from 5% to 100% of the range Internal impedance >10 MΩ VDC Overload protection: 1000 V DC/AC RMS Measurement of AC DC voltage Range Resolution Accuracy 50.000 mV 0.001 mV f < 1 Hz: ±(1% m.v. 25 digits)f < 10 kHz ±(3,5% m.v. 25 digits) 500.00 mV 0.01 mV 5.0000 V 0.0001 V 1 50.000 V 0.001 V 500.00 V 0.01 V 1000.0 V 0.1 V 1 Over f = 5 kHz – additional error of 1% DC measurement Range Resolution Accuracy 500.00 μA 0.01 μA ±(0,1% m.v. 20 digits) 5000.0 μA 0.1 μA 50.000 mA 0.001 mA 500.00 mA 0.01 mA ±(0,15% m.v. 20 digits) 10.000 A 0.001 A ±(0,3% m.v. 20 digits) 20 A for max. 30 sec. at reduced accuracy AC measurement (TRMS) Range Resolution Accuracy 500.00 μA 0.01 μA f = 50/60 Hz ±(0,6% m.v. 25 digits)f < 1 kHz ±(1,5% m.v. 25 digits)f < 10 kHz ±(3% m.v. 25 digits) 5000.0 μA 0.1 μA 50.000 mA 0.001 mA 500.00 mA 0.01 mA 10.000 A 0.001 A 20 A for max. 30 sec. at reduced accuracy Frequency range 50 Hz…10 kHz All AC voltage ranges are specified from 5% to 100% of the range Measurement of AC DC Range Resolution Accuracy 500.00 μA 0.01 μA ±(1,0% m.v. 25 digits) 5000.0 μA 0.1 μA 50.000 mA 0.001 mA 500.00 mA 0.01 mA 10.000 A 0.001 A ±(1,5% m.v. 40 digits) Frequency range 0…1000 Hz 20 A for max. 30 sec. at reduced accuracy Measurement of alternating voltage for frequency >5 kHz Range Resolution Accuracy 50.000 mV 0.001 mV ±(5.0% m.v. 40 digits) 500.00 mV 0.01 mV 5.0000 V 0.0001 V 50.000 V 0.001 V 10.000 V 0.001 V ±(6.0% m.v. 40 digits) Frequency band 5…100 kHz Measurement of resistance Range Resolution Accuracy 50.000 Ω 1 0.001 Ω ±(0.5% m.v. 20 digits) 500.00 Ω 1 0.01 Ω ±(0.05% m.v. 10 digits) 5.0000 kΩ 0.0001 kΩ 50.000 kΩ 0.001 kΩ 500.00 kΩ 0.01 kΩ ±(0.1% m.v. 10 digits) 5.0000 MΩ 0.0001 MΩ ±(0.2% m.v. 20 digits) 50.000 MΩ 0.001 MΩ ±(2% m.v. 20 digits) 1 When using REL mode to compensate offsets (mode recommended in case of problems with resetting) Measurement of capacitance Range Resolution Accuracy 5.000 nF 1 0.001 nF ±(2 % m.v. 40 digits) 50.00 nF 1 0.01 nF 500.0 μF 0.1 nF 5.000 μF 0.001 μF 50.00 μF 0.01 μF 500.0 μF 0.1 μF ±(5 % m.v. 40 digits) 10.00 mF 0.01 μF 1 With a foil capacitor or better, using relative mode REL Δ for resetting the rest Measurement of frequency – electronics Range Resolution Accuracy 50.000 Hz 0.001 Hz ±(0.01 % m.v. 10 digits) 500.00 Hz 0.01 Hz 5.0000 Hz 0.0001 kHz 50.000 Hz 0.001 kHz 500.00 Hz 0.01 kHz 5.0000 Hz 0.0001 MHz 10.000 Hz 0.001 MHz Sensitivity: the minimum value of effective voltage is 0.8 V at 20% to 80% of the duty cycle and <100 kHz the minimum value of effective voltage is 5 V at 20% to 80% of the duty cycle and <100 kHz Measurement of frequency – electricity Range Resolution Accuracy 40.00 Hz…10.000 kHz 0.01 Hz…0.001kHz 0.5 % m.v. Sensitivity: 1 V RMS Duty cycle measurement (filling) Range Resolution Accuracy 0.10…99.90% 0.01% ±(1.2 % m.v. 2 digits) Pulse width: 100 μs…100 ms Frequency: 5 Hz…150 kHz Measurement of current loop 4-20mA% Range Resolution Accuracy -25.00…125.00% 0.01% ±(50 digits) 0 mA=-25% 4 mA = 0% 20 mA = 100% 24 mA = 125% Temperature Measurement Range Resolution Accuracy -50.0…1000.0oC 0.1oC ±(1.0% m.v. 2.5oC) -58.0…1832.0oF 0.1oF ±(1% m.v. 4.5oF) The accuracy of the temperature probe is not taken into account. Electrical safety: Insulation: double, according to EN 61010 – 1 and IEC 61557 Measurement category: IV 600 V / III 1000 V in accordance to EN 61010 – 1:2004 Other technical data: Power supply: rechargeable battery Li-Pol 7,2 V Diode test: I = 0,9 mA, U0 = 3,2 V DC Continuity test: I < 0,35 mA, sound signal for R < 25 Ω Overrange indication: OL displayed Measurement rate: 20 readings per minute Input impedance: >10 MΩ (V DC), >9 MΩ (V AC) Display: color TFT with resolution 320×240 pixels 3,5”, 50 000 counts Dimensions: 220 x 97 x 58 mm Weight (with batteries): 342 g Fuses: mA, µA ranges: 0,8 A/1000 V ceramic fast blow; 10 A range: 10 A/1000 V ceramic fast blow Auto power-OFF: adjustable 5…60 minutes EN 61010-1, UL 61010-1:2004, CAN/CSA C22.2 No. 61010-1, UL 61010B-2-031, EN 61326-1, EN 61326-2-2 Quality standard: ISO 9001 Nominal conditions: Operate temperature: 5.. 40°C Humidity < 80% for ≤ 31°C, decreasing linearly to 50% at 40°C Storage temperature: -20… 60°C Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost.
