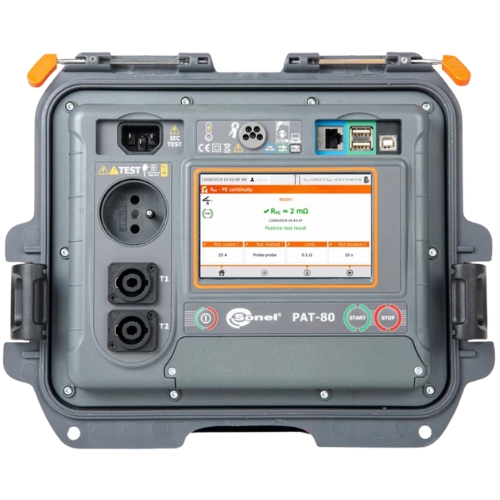

Description Battery Operated PAT Tester | PAT80 Measurement functions Range Resolution Accuracy ±(% m.v. digits) Resistance of protective conductor (PE) PAT-80: I = 200 mA PAT-85: I = 200 mA / 10 A / 25 A up to 19.99 Ω from 1 mΩ from ±(3% m.v. 4 digits) Insulation resistance PAT-80: UISO = 250 V / 500 V PAT-85: UISO = 100 V / 250 V / 500 V / 1000 V up to 599.9 MΩ from 1 kΩ ±(5% m.v. 8 digits) Current (clamp measurement) up to 24.9 A from 1 mA ±(5% m.v. 5 digits) Visual test ✓ Continuity check of protective conductor (PE) ✓ Insulation resistance measurement at three points ✓ IEC cable test ✓ Functional test Apparent power S up to 3.99 kVA from 1 VA ±(5% m.v. 3 digits) Active power P up to 3.99 kW from 1 W ±(5% m.v. 3 digits) Reactive power Q up to 3.99 kvar from 1 var ±(5% m.v. 3 digits) Power Factor (PF) up to 1.00 0.01 ±(10% m.v. 5 digits) Current consumption for power measurement up to 15.99 A 0.01 A ±(2% m.v. 3 digits) THD for voltage and current up to 99.9% 0.1% ±(5% m.v. 5 digits) Cosφ up to 1.0 0.1 ±(5% m.v. 5 digits) Leakage current measurement PE leakage current and differential leakage current up to 19.9 mA 0.01 mA ±(5% m.v. 2 digits) Substitute leakage current up to 19.9 mA 0.01 mA ±(5% m.v. 2 digits) Touch leakage current up to 4.999 mA 0.001 mA ±(5% m.v. 3 digits) RCD and PRCD switch test Measurement of RCD parameters according to IEC 61557 up to 300 ms 1 ms ±(2% m.v. 2 digits) Measurement of RCD tripping current IA for sinusoidal residual current (AC type) up to 30 mA 0.1 mA ±5% IΔn Measurement of power network parameters Voltage up to 265.0 V 0.1 V ±(2% m.v. 2 digits) Frequency up to 55.0 Hz 0.1 Hz ±(2% m.v. 2 digits) Technical data Technical data TFT 5.6″ 800 x 480 px Power supply 195…265 V, 50 / 60 Hz mains NiMH 7.2 V / 2 Ah rechargeable battery Load current max. 16 A (230 V) Safety and work conditions Measuring category according to EN 61010 II 300 V Ingress protection IP40 Type of insulation according to EN 61010-1 and IEC 61557 double Dimensions 318 x 257 x 152 mm Weight ca. 5 kg Operating temperature -10… 50°C Storage temperature -20… 70°C Humidity 20…80% Nominal temperature 20… 25°C Reference humidity 40%…60% Altitude a.s.l. Memory and communication Memory of measurement results min. 4 GB Data transmission USB 2.0, Wi-Fi, LAN Other information Quality standard – development, design and production ISO 9001 ; ISO 14001 ; ISO 45001 The product meets the EMC (emission for industrial environment) requirements according to standards EN 61326-1 ; EN 61326-2-2 Battery Operated PAT Tester | PAT80
