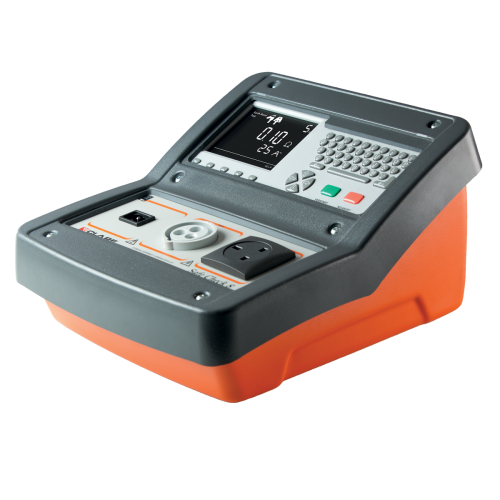

Description Electrical Safety Tester | SafeCheck 8 Technical Specification: Flash/Hipot Test (Class I) Test Voltage Class l 1.25kV AC Display Range 0.1 – 10mA AC Resolution 0.01mA Accuracy /- 5% /- 2 digits Pass Levels 500V, 1250V AC Flash/Hipot Test (Class I) Test Voltage Class ll 2.5kV AC Display Range 0.1 – 10 mA AC Resolution 0.01mA Accuracy /- 5% /- 2 digits Pass Levels Selectable up to 10mA DC Insulation Test Test Voltage 250/500V Display Range 0.1 – 99.99MΩ Accuracy /- 5% /- 2 digits (up to 19.99MΩ) Earth/Ground Bond Test Test Voltage 6VAC (open circuit) Test Current 25A, 10A, 4A, 100mA AC into short circuit Range 0.04Ω – 20Ω Resolution 1mΩ Accuracy /- 5% /- 2 digits Pass Levels User selectable Substitute Leakage (Short to Case Test) Test Voltage 40VAC o/c Display Range 0.1 – 20.0mA AC Resolution 0.01mA Accuracy /- 10% /- 2 digits (1.00 – 20mA) Pass Levels Selectable up to 15mA Earth Leakage Display Range 0.1 – 20.0mA AC Resolution 0.01mA Accuracy /- 10% /- 2 digits (1.00 – 20mA) Pass Levels Selectable up to 10mA Power/Run/Load Tests Resolution 0.01kVA Measured Load 0 – 4kVA Accuracy /- 10 of reading, /- 2 digits IEC Power Cord Test Test Voltage 40VAC Detects Good, Open, Short, Reversed Dimensions and Weight Dimensions 450 x 410 x 155mm / 17.7 x 16.1 x 6.1” (w x h x d) Weight Approx 8.8kg / 20lbs Electrical Supply Voltage Selectable 115V / 230V 50 or 60Hz Operating Temperature 0°C to 40°C Storage Temperature -10°C to 50°C EN50191 Compliant when used with appropriate accessories* Standard Accessories (supplied with SafeCheck 8) HT probe 3 pin guard link connector Earth bond clip Instruction manual Calibration certificate Optional Acccessories: Barcode scanner Desk Test n Tag printer (supplied with 100 x 50mm labels) Desk Test n Tag printer (supplied with 35 x 45mm labels) Three phase adaptor Fault Simulator PATGuard 3 Elite software: Download your 30 day free trial at www.seaward.com/PG3 Services: 1 year warranty (subject to product registration with Seaward). Calibration: For more information on calibration and services go to www.seaward.com/service. Electrical Safety Tester | SafeCheck 8
