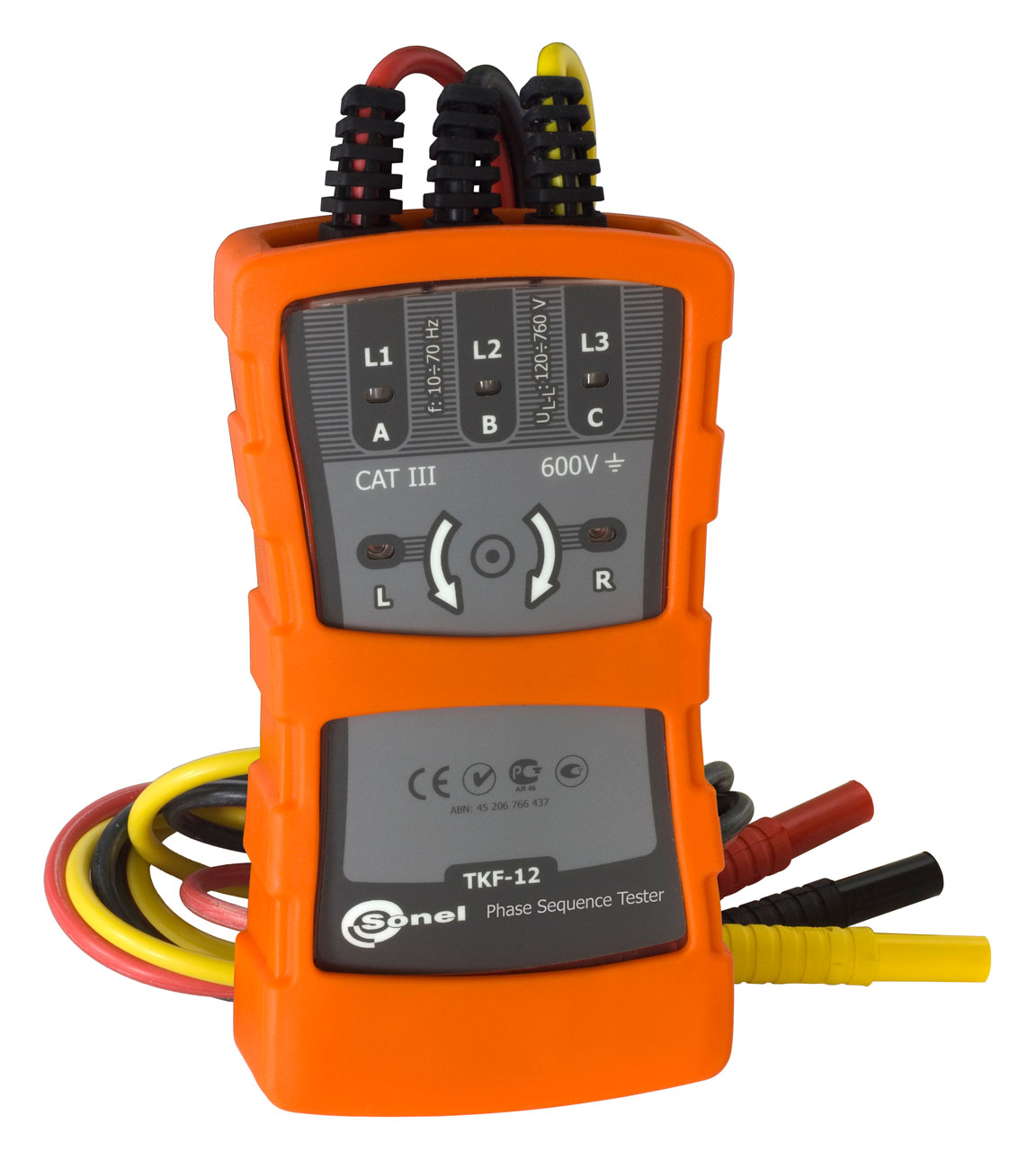

Description Phase Sequence Tester and Indicator TKF-12 Phase sequence indication (direction of field rotation) in the power network with rated phase-to-phase voltage (120…690 V) AC by LED signalisation Operation in the power network with frequency range 10…70 Hz Indication of the voltage presence in the particular phases by neon lamps signalization Power supply from the tested network (continuous operation to 15 minutes for max. voltage) Protection against faulty indication of field rotation Electric security: type of insulation: double, according to EN 61010 – 1 measurement category: CAT III 600 V acc. to EN 61010 – 1 protection class acc. to EN 60529: IP42 Rated operational conditions: rated phase-to-phase voltage range: 120…690 V AC maximum operation phase-to-phase voltage: 760 V AC frequency range: 10…70 Hz operating temperature: -10… 45°C storage temperature: -20… 60°C Other technical data: power supply: from the tested electrical installation, up to 15 min for max. voltage dimensions: 130 x 70 x 35 mm weight (without test leads): approx. 200g Phase Sequence Tester TKF-12
