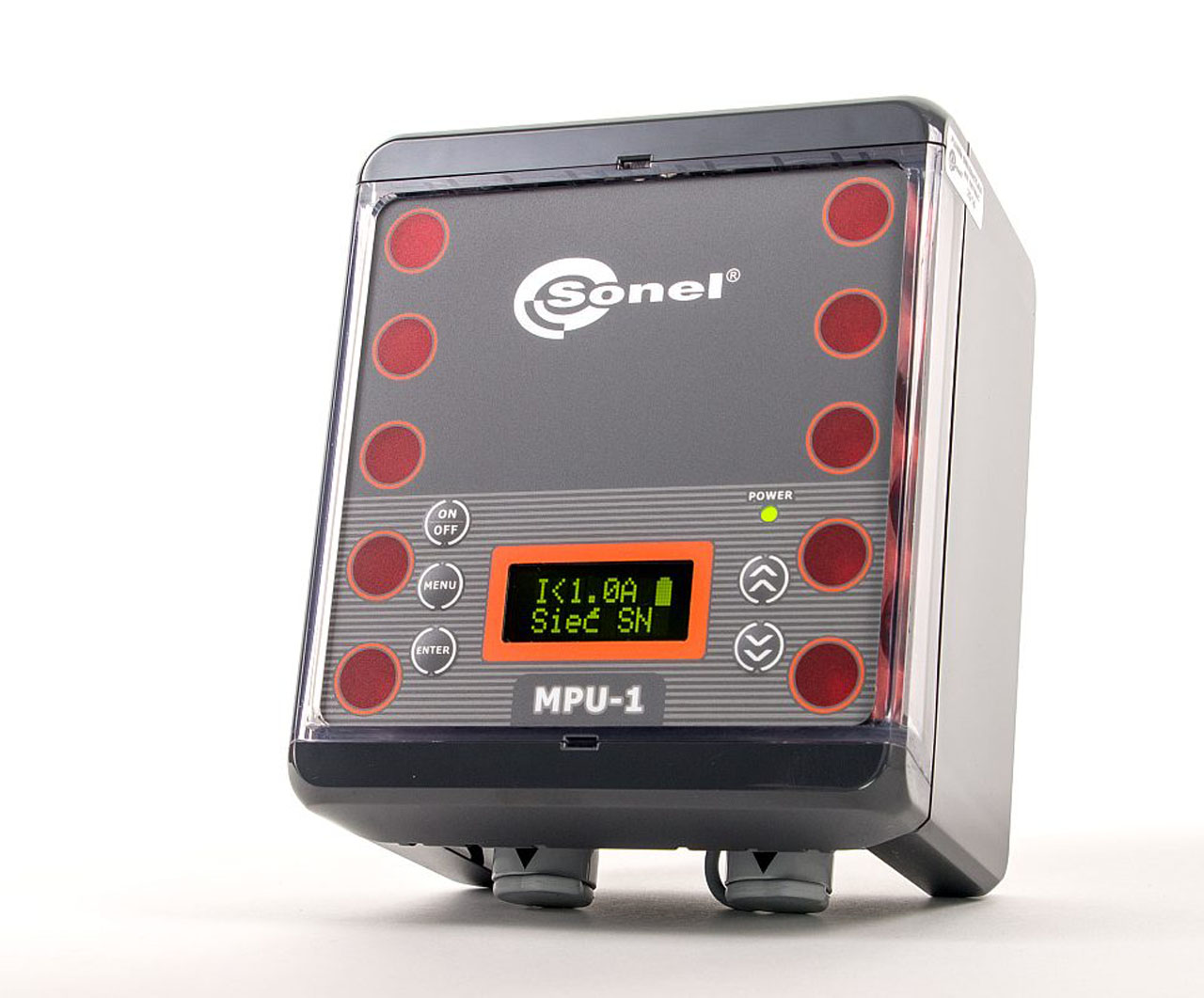

Description Leakage Current Alarm Signaler MPU-1 Leakage current measurement with clamp: Display range Resolution Accuracy 0,1..9,9 A 0,01 A ±(5% w.m. 2 digits) 10..299 A 0,1 A ±(5% w.m. 2 digits) frequency: 50Hz or 60Hz F-1 clamps Technical specifications: Insulation type Measurement category Degree of housing protection acc. to EN 60529: IP67 Max. noise voltage AC DC, for which measurement is possible: 24 V Max. measured noise voltage: 100 V Power supply: SONEL battery package NiMH 9,4V 2,4Ah Operating time for standby mode: >20h Operating time for alarm mode: >3h Dimensions: 125 x 150 x 95 mm Weight (including battery): ok. 1,1 kg Working temperature: -10.. 50 ˚C Charger working temperature: 10.. 35 ˚C Reference temperature: 23 ±2 ˚C Storage temperature: -20.. 80 ˚C Relative humidity: 20..85% Relative nominal humidity: 40..60% Altitude (above sea level): <2000m Quality standard: design and manufacturing are ISO 9001 compliant The product meets EMC requirements (immunity for industrial environment) according to the following standards: EN 61326-1:2006 and EN 61326-2-2:2006 Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost. Leakage Current Alarm Signaler MPU-1
