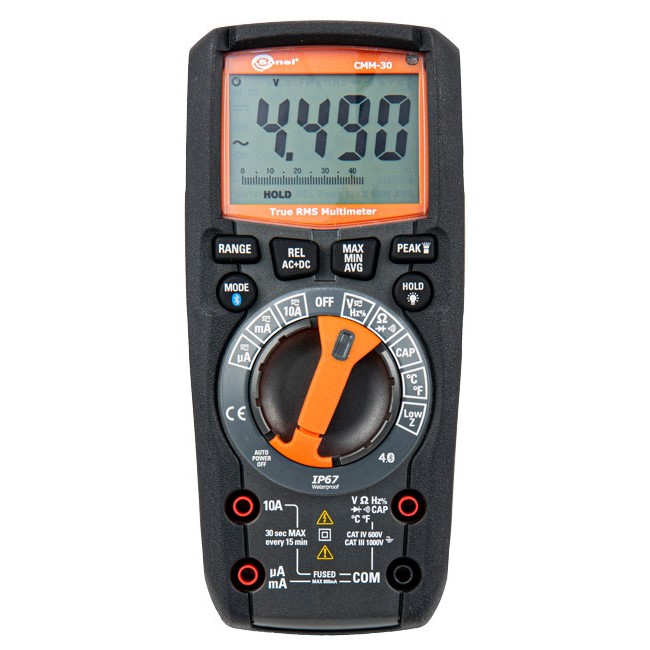

Description Industrial Multimeter with Bluetooth CMM30 Technical Specifications AC current measurement (True RMS) Range Resolution Accuracy 600,0 μA 0,1 μA ±(1,0% m.v. 3 digits) 6000 μA 1 μA 60,00 mA 0,01 mA 600,0 mA 0,1 mA 10,00 A 0,01 A ±(2,0%m.v. 8digits) All AC current ranges are specified from 5% – 100% of range AC voltage frequency: 45 – 400 Hz DC Current measurement Range Resolution Accuracy 600,0 μA 0,1 μA ±(1,0%m.v. 3 digits) 6000 μA 1 μA 60,00 mA 0,01 mA 600,0 mA 0,1 mA 10,00 A 0,01 A ±(1,5%m.v. 3digits) AC Voltage measurement (True RMS) Range Resolution Accuracy 6,000 V 0,001 V ±(1,0% m.v. 5 digits) 60,00 V 0,01 V 600,0 V 0,1 V 1000 V 1 V ±(1,2% m.v. 5 digits) All AC voltage ranges are specified from 5% to 100% of range Input impedance: 10 MΩ AC voltage frequency: 45 – 1000 Hz DC Voltage measurement Range Resolution Accuracy 600,0 mV 0,1 mV ±(0,5% m.v. 8 digits) 6,000 V 0,001 V ±(0,8% m.v. 5 digits) 60,00 V 0,01 V 600,0 V 0,1 V 1000 V 1 V ±(1,0% m.v. 3 digits) Input impedance: 10 MΩ AC DC Voltage measurement Range Resolution Accuracy 6,000 V 0,001 V ±(1,5% m.v. 20 digits) 60,00 V 0,01 V 600,0 V 0,1 V 1000 V 1 V ±(1,5% m.v. 5 digits) Input impedance: 10 MΩ AC voltage bandwidth: 45 – 400 Hz Low impedance measurement Range Resolution Accuracy 6,000 V 0,001 V ±(3,0% m.v. 30 digits) 60,00 V 0,01 V 600,0 V 0,1 V 1000 V 1 V ±(3,0% m.v. 5 digits) All AC voltage ranges are specified from 5% to 100% of range Input impedance: 3 kΩ AC voltage frequency: 45 – 400 Hz Resistance measurement Range Resolution Accuracy 600,0 Ω 0,1 Ω ±(1,5% m.v. 5 digits) 6,000 kΩ 0,001 kΩ 60,00 kΩ 0,01 kΩ 600,0 kΩ 0,1 kΩ 6,000 MΩ 0,001 MΩ 60,00 MΩ 0,01 MΩ ±(2,0% m.v. 10 digits) Capacitance measurement Range Resolution Accuracy 60,00 nF 0,01 nF ±(5,0% m.v. 35 digits) 600,0 nF 0,1 nF ±(3,0% m.v. 5 digits) 6,000 µF 0,001 µF 60,00 µF 0,01 µF 600,0 µF 0,1 µF 6000 µF 1 µF ±(5,0% m.v. 5 digits) Frequency measurement Range Resolution Accuracy 9,999 Hz 0,001 Hz ±(1,0 % m.v. 5 digits) 99,99 Hz 0,01 Hz 999,9 Hz 0,1 Hz 9,999 kHz 0,001 kHz Sensitivity: >8 V RMS Duty cycle measurement Range Resolution Accuracy 20,0 – 80,0% 0,1% ±(1,2 % m.v. 2 digits) Pulse width: 100 µs – 100 ms. Frequency: 5Hz – 10kHz. Sensitivity: >8 V RMS Temperature measurement Range Resolution Accuracy -20 – 760 ºC 0,1 lub 1 ºC ±(1,0% m.v. 5 ºC) -4 – 140 ºF 0,1 lub 1 ºF ±(1,0% m.v. 9 ºF) “m.v.” means measured value of standard. Safety Specifications: Type of insulation: Double, according to EN 61010 – 1 and IEC 61557 Measurement category: CAT III 600 V acc. to EN 61010-1:2004 Protection class acc. to EN 60529: IP67 Bluetooth: Version: v4.0 EDR Frequency range: 2400 MHz – 24833,5 MHz (ISM band) Protective band: 2 MHz < f <3.5 MHz Modulation method: GFSK | 1 Mbps | 0.5 Gauss Signal bandwidth: -82 … -20 dBm Minimum transmission power: -18 … 4 dBm Other: Power supply: 4 x battery AAA 1,5 V Diode test: I = 1,0 mA | U0 < 3 V DC Continuity test: sound signal for R < 30 Ω Over range indication: symbol 0L Sampling rate: 3 times per second Input impedance: 10 MΩ (V AC/DC) Display: backlit LCD, counts 6000 with icons Dimensions: 170 x 75 x 48 mm Weight (with batteries): 418 g Fuses: range mA, µA: 0,8 A/1000 V fast, range A: 10 A/1000 V fast Auto power OFF: 15 minutes Accordance with following standards: EN 61010-1 | EN 61010-031 | EN 61010-2-033 | EN 61326-1 | EN 61326-2-2 Quality standard: ISO 9001 Environmental Specifications: Temperaturę range: 0 .. 40oC, Humidity: < 75% Storage temperature: -20 … 60°C at humidity < 80% Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost.
