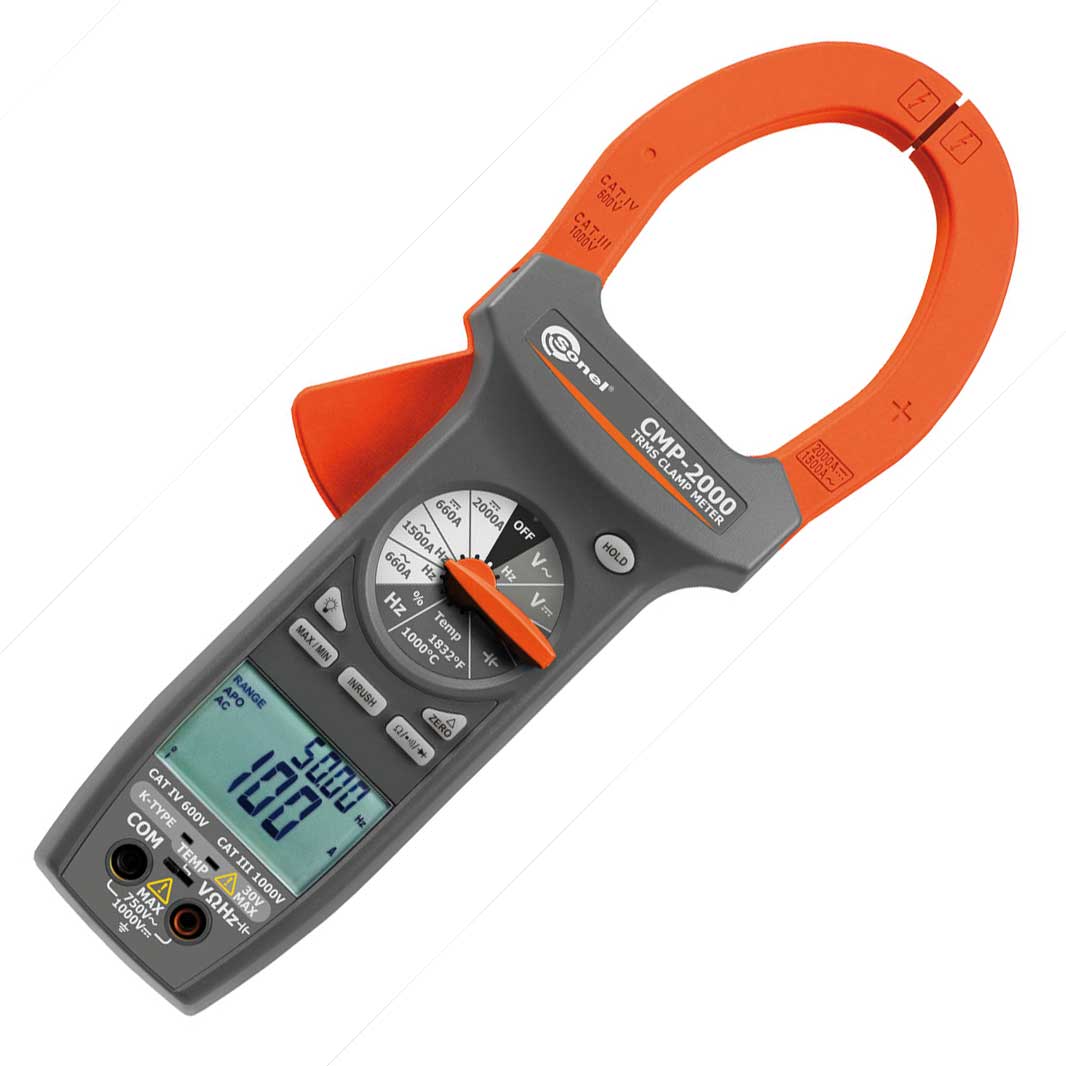

Description Electric security: measurement category: CAT IV 600 V acc. to EN 61010 – 1 protection class acc. to EN 60529: IP20 Other technical data: power supply, 9 V battery type 6LR61 display: 6600 counts, backlit LCD continuity test: threshold 30 Ω diode test: test current of 0,8 mA , typical open circuit voltage 3,2 V DC, typical low battery indication: BAT displayed over range indication: ‘OL’ displayed temperature sensor: type K thermocouple, input impedance: ca.10 MΩ (V DC and V AC) AC bandwidth: 50…500 Hz auto power OFF: 30 minutes dimensions: 281 x 108 x 53 mm weight: 570 g (with battery) accordance with following standards: EN 61010 – 1, EN 61010 – 2-032 Rated operational conditions: able to open the clamp: Ø 57 mm wire 70 x 18 mm bus bar operating temperature: 0… 50 °C storage temperature: -20… 60 °C, operating altitude: max 2000 m DC current measurement Range Resolution Accuracy 0,0…659,9 A 0,1 A ±(2,0% m.v. 5 digits) 660…2000 A 1 A ±(3,0% m.v. 5 digits) for 660…1000 A ±(5,0% m.v. 5 digits) for 1000…2000 A AC current measurement (TRUE RMS) Range Resolution Accuracy 0,0…659,9 A 0,1 A ±(2,0% m.v. 10 digits) for 50…60 Hz ±(3,0% m.v. 10 digits) for 61…400 Hz 660…1500 A 1 A ±(2,5% m.v. 10 digits) for 50…60 Hz i 660…1000 A ±(3,5% m.v. 10 digits) for 61…400 Hz and 660…1000 A ±(5,0% m.v. 10 digits) for 50…400 Hz and 1000…1500 DC voltage measurement Range Resolution Accuracy 0,000…6,599 V 0,001 V ±(0,5% m.v. 2 digits) 6,60…65,99 V 0,01 V 66,0…659,9 V 0,1 V 660…1000 V 1 V AC voltage measurement (true RMS) Range Resolution Accuracy 0,000…6,599 V 0,001 V ±(1,5% m.v. 8 digits) for 50…500 Hz 6,60…65,99 V 0,01 V 66,0…659,9 V 0,1 V 660…750 V 1 Resistance measurement Range Resolution Accuracy 0,0…659,9 Ω 0,1 Ω ±(1,0% m.v. 5 digits) 0,660…6,599 kΩ 0,001 kΩ 6,60…65,99 kΩ 0,01 kΩ 66,0…659,9 kΩ 0,1 kΩ 0,660…6,599 MΩ 0,001 MΩ ±(2,0% m.v. 5 digits) 6,60…66,00 MΩ 0,01 MΩ ±(3,5% m.v. 5 digits) Capacitance measurement Range Resolution Accuracy 0,0…6,599 nF 0,001 nF ±(3,0% m.v. 30 digits) 6,60…65,99 nF 0,01 nF ±(3,0% m.v. 10 digits) 66,0…559,9 nF 0,1 nF ±(3,0% m.v. 30 digits) 6,600…59,999 µF 0,001 µF ±(3,0% m.v. 10 digits) 66,00…659,99 µF 0,01 µF 660…659,999 µF 0,100 µF 0,660…6,600 mF 0,001 mF Frequency measurement Range Resolution Accuracy 10…65,99 Hz 0,01 Hz ±(0,1% m.v. 5 digits) 66,0…659,9 Hz 0,1 Hz 0,660…6,599 kHz 0,001 kHz 6,60…65,99 kHz 0,01 kHz 66,0…659,9 kHz 0,1 kHz 0,660…1,000 MHz 0,001 MHz Temperature measurement Range Resolution Accuracy -20…0°C 1°C ±(2,0% m.v. 3°C) 0…399°C ±(1,0% m.v. 2°C) 400…1000°C ±(2,0% m.v. 3°C) -4…31°F 1°F ±(2,0% m.v. 6°F) 32..749°F ±(1,0% m.v. 4°F) 750…1832°F ±(2,0% m.v. 6°F) Duty cycle measurement ange Resolution Accuracy 5…95% 0,1% ±(2,0% m.v. 10 digits) “m.v.”- measured value
