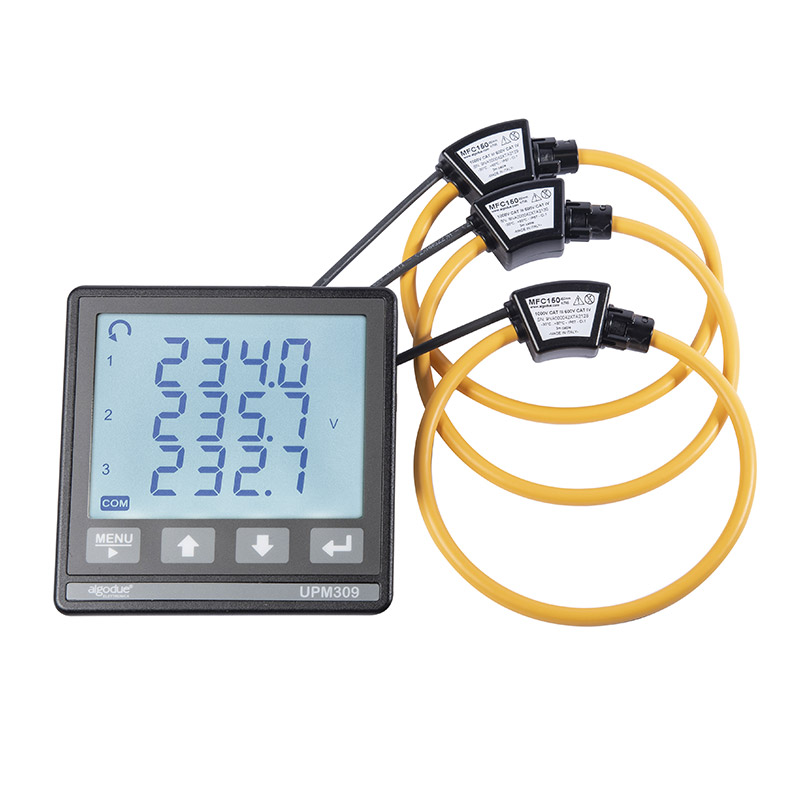

Three-Phase Network Analyser Kit – Overview This kit is used for the measurement and recording of the electrical parameters. It is suitable for consumption analysis and control and has an excellent quality/price ratio. The UPM309 power meter is the ideal instrument for establishing the measurement points on the plant and can be managed remotely. Data generated creates consumption profiles, recorded values trends, alarms and events reports, costs calculation as well as critical values identification. The Kit consists of a network analyser and 3 Rogowski coils. The use of Rogowski coils for current measurement allows quick installation on existing plants. The instrument can also be fit for the current consumption without replacing the transducer. Three-Phase Network Analyser Kit – Features DIN 96×96 ultra-compact version, only 39 mm depth Fully bi-directional four-quadrant measurements Main electrical parameters measured and displayed 4 available KITs: 30, 45, 70, 90 cm coil length 3 selectable current scales Possibility to connect by PT Up to 8 MB for data recording Can record all energy counters Up to 24 parameters selectable MODBUS RTU communication by RS485 port / MODBUS TCP communication by Ethernet port Can manage the instrument in remote mode with WintoolNET software or by Web interface 2 digital outputs, 1 digital input Accuracy class 0.5 according to IEC/EN 61557-12 for active power/energy
