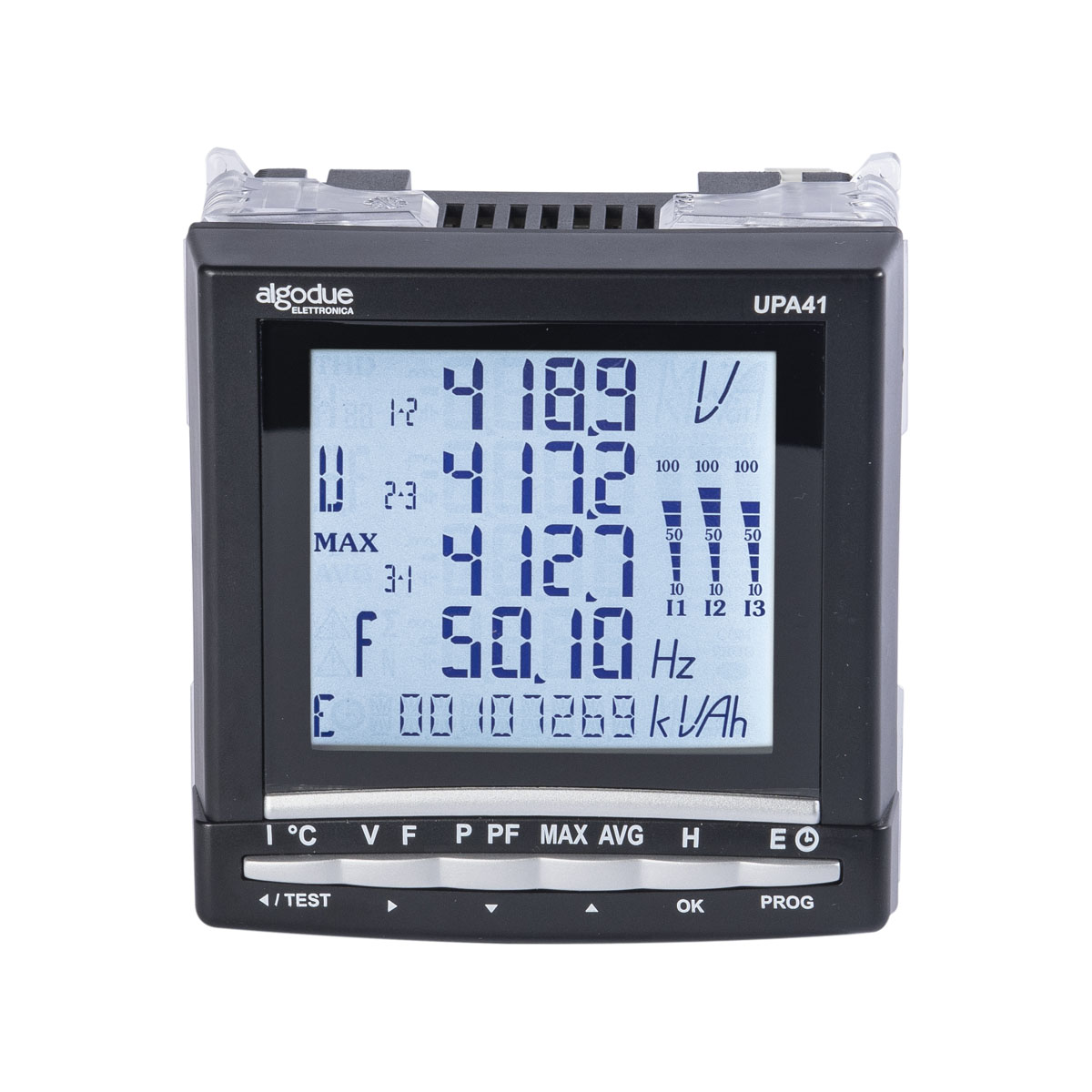

Three Phase Energy Network Analyzer- Overview The UPA41 are performance metering & monitoring devices, that provide all the measurements required to complete energy efficiency projects and to assure the monitoring of electrical distribution. It is suitable for consumption analysis and control, with an excellent quality/price ratio. The large backlit multiple-display screen with 6 hotkeys makes the instrument easy to use. Provided with a correction function for CT wiring errors. The instrument can be equipped with additional modules that give flexibility to the product. Modules for RS485 communication, additional digital or analogue inputs/outputs and temperature detection can be used to increase its range of functionality. The instrument is compliant with IEC 61557-12. It guarantees performance levels and satisfactory performance from the PMDs under the environmental conditions typical of industrial and tertiary applications. Three Phase Energy Network Analyzer – Features DIN 96×96 compact version Main electrical parameters measured and displayed for a cost-effective consumption analysis For current transformers (optional) Programmable VT Wiring error detection Display of predictive power values Available optional plug-in modules for communication, inputs/outputs, temperature Active energy class 0,5 S according to IEC 62053-22 Compliant with IEC 61557-12, the reference standard for PMDs (Performance Metering & monitoring Devices) UL listed product – UL no. E231725 Measurement of the neutral current (N) Datasheet
