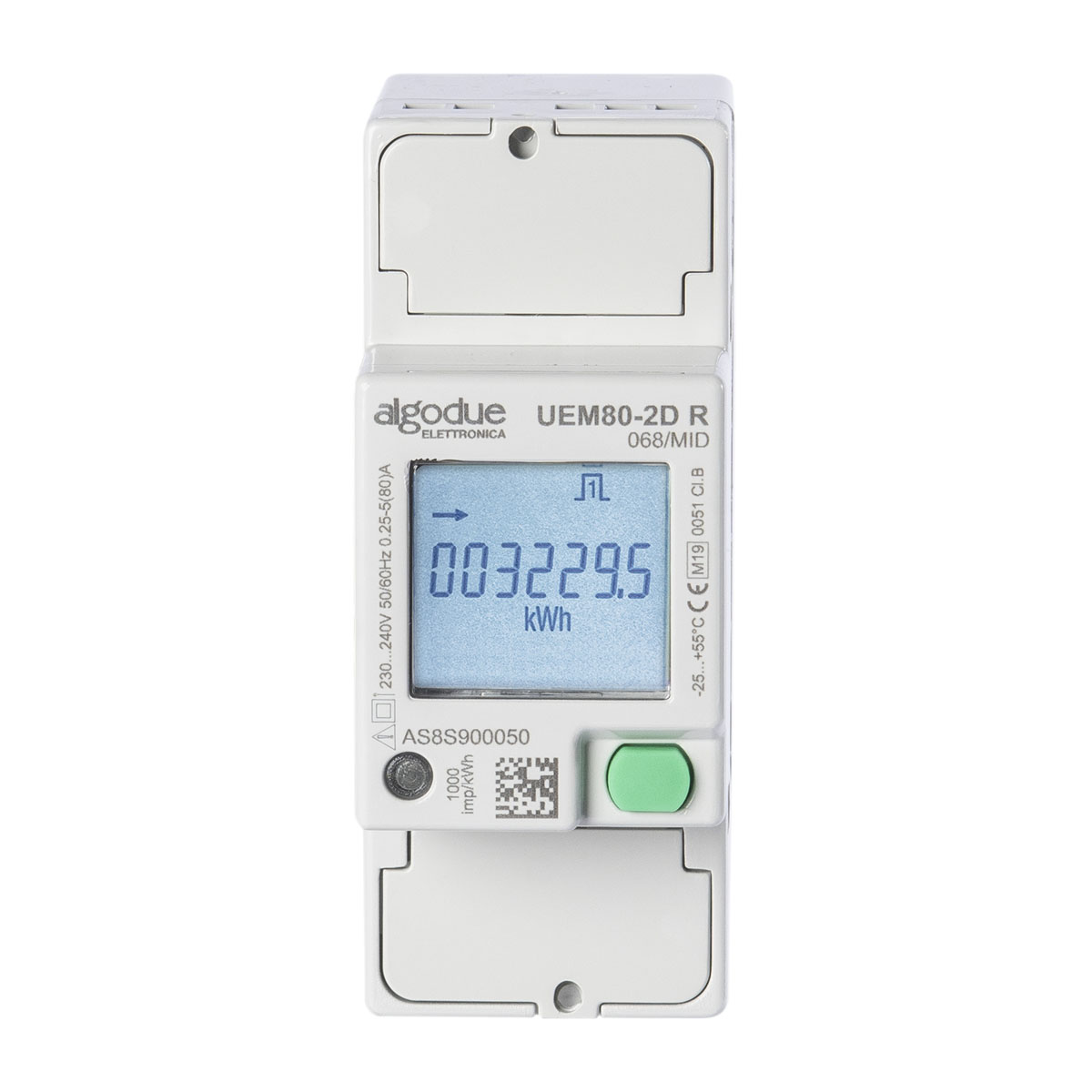

Single-Phase 80A Energy Meter with built-in communication – Overview The UEM80-2D Energy meter is for industrial and domestic applications, with built-in communication, depending on the model. Besides measuring energy, the meter can measure many electrical parameters and makes them available on the built-in communication ports. The LCD display shows the energy and instantaneous power. The COM port allows managing the connected meter remotely. Despite transmitting data over RS485, M-Bus or Ethernet the device has a dedicated application for remote management as provided: Modbus Master software – for energy meter management by PC in RS485 Modbus or Ethernet network. M-Bus Master software – for energy meter management by PC in M-Bus network. Web server – built-in interface for energy meter management by PC in Ethernet network. It enables data recording with manual or automatic data transferring where data is sent to a remote server at the set schedule. This Single-Phase Energy meter is built according to EN 50470-1 standard. Active energy is compliant with IEC 62053-22 class 0,5 S, but for MID certified devices it moreover fulfils class C requirements according to EN 50470-3. The accuracy of reactive energy is compliant with IEC/EN 6205323 class2. A wide backlit LCD display with clear graphics makes reading easy. Metrological LED on the front panel and sealable terminal covers. The analysis of the MTBF values, the accurate selection of components, and the reduction of the internal working temperatures together with strict production and control standards guarantee a product with excellent quality and long-lasting reliability. Single-Phase 80A Energy Meter with built-in communication- Features UEM80-2D R for RS485 Modbus RTU/ASCII communication UEM80-2D M for M-Bus communication UEM80-2D E for Ethernet (Modbus TCP) communication Direct connection up to 80 A Fully bi-directional 4-quadrant measurements for all energies and powers Class B according to EN 50470-3 (MID) 8 MB for data recording and automatic/manual data transferring (only ETHERNET model) S0 output for energy pulse emission LCD display with 7 main digits Available with MID certification Datasheet CONTACT US FOR MORE OPTIONS
