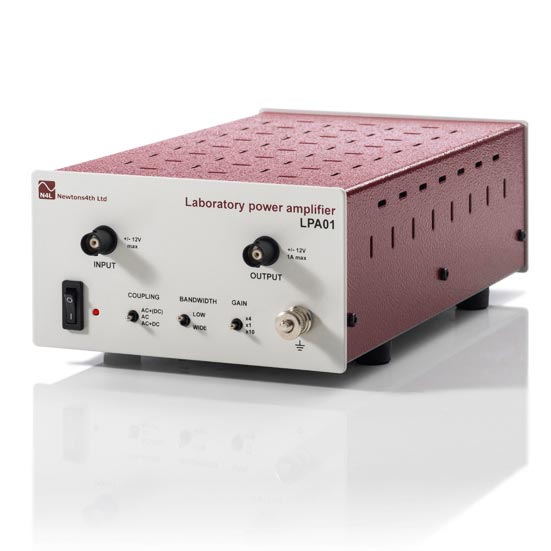

Power Amplifier ±12Vpk 1MHz – Overview The Power Amplifier LPA01 range of power amplifiers from N4L is robust and reliable for use in a variety of industrial and laboratory applications. Designed originally for use with Phase Sensitive Multimeters, the LPA01 can also be used anywhere where there is a need to boost a signal either in voltage or current. They combine DC accuracy with wide bandwidth to faithfully reproduce complex waveforms, driving loads that may be capacitive, inductive, or resistive. Optionally, the DC component can be eliminated with AC coupling or can be reduced with AC (DC) coupling. To limit high-frequency noise, the input bandwidth can be reduced with a linear phase, 2nd order, low pass filter for low-frequency applications. Power Amplifier ±12Vpk 1MHz – Features DC accurate and wide bandwidth 1A Peak output current @ up to ±14V peak (LPA01). High slew Stable into a wide range of loads. Isolated to 40V common mode to reject ground loop The robust metal enclosure will fit underneath QuanteQ or Veqtor to boost output Switch selectable coupling options: AC, AC DC, or AC with reduced Switch selectable precision gain Switch selectable Datasheet
