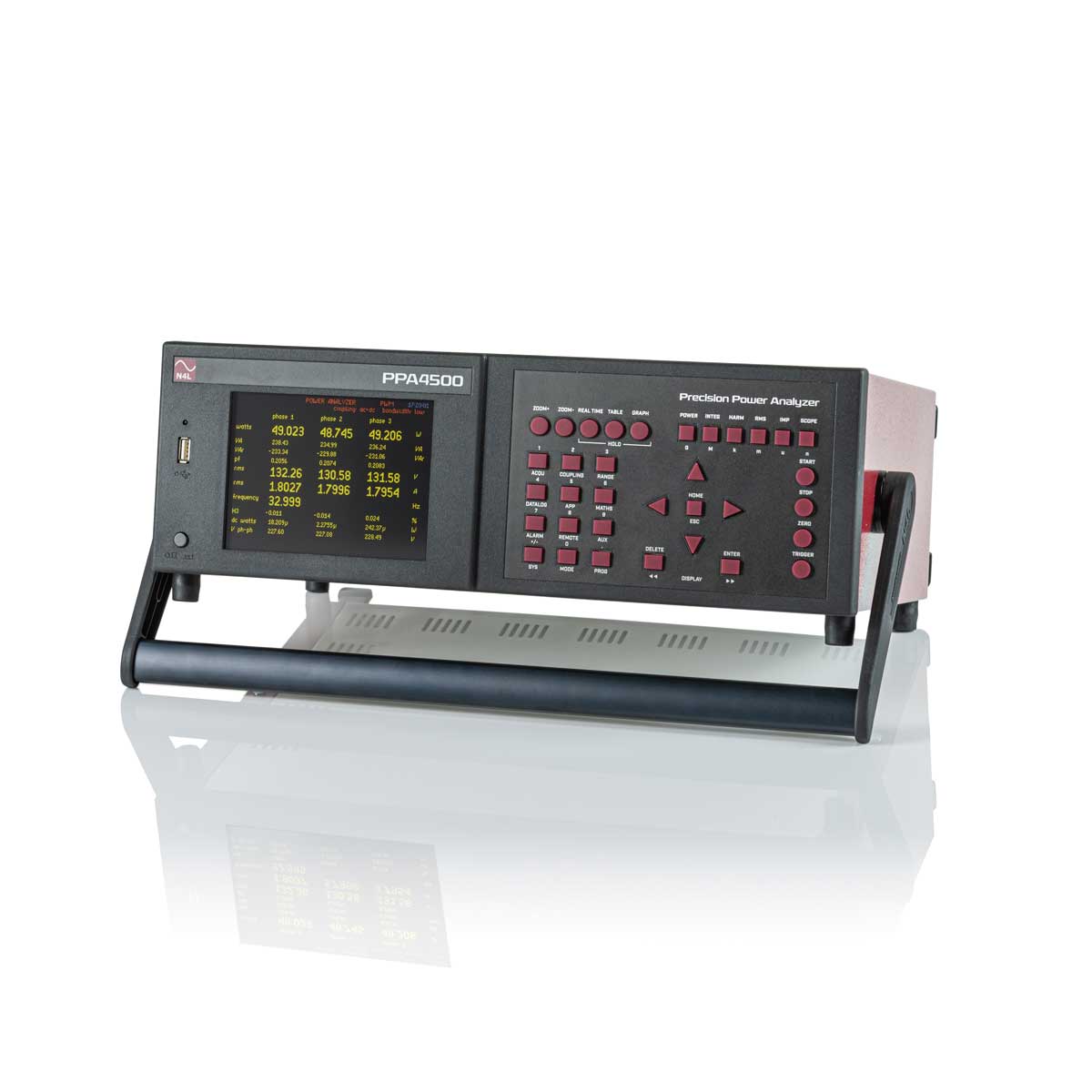

High-Performance Power Analyzer | PPA4500

$ 97.65

Compare

Categories: Samsung Lcd/Led,

Description High-Performance Power Analyzer | PPA4500 Technical Specifications Frequency Range Bandwidth PPA4500(30Arms) | PPA4500-LC(10Arms) DC : 10mHz ~ 2MHz PPA4500-HC(50Arms) : DC, 10mHz ~ 1MHz Voltage Input Internal Ranges Normal : 1Vpk ~ 3000Vpk (8 ranges = 1V | 3V | 10V | 30V | 100V | 300V | 1KV | 3KV) (240Vrms within 300Vpk range, using 20% over range) Internal Voltage Input Impedance 3Mohm in parallel with 5pF | 90pF common mode to chassis Internal Accuracy Normal : 0.03% Rdg 0.04% Rng (0.004% x kHz) 5mV External Voltage BNC Input Ranges 1Vpk ~ 3Vpk [BNC Connector 3Vpk Max Input] 8 Ranges = 1mV | 3mV | 10mV | 30mV | 100mV | 300mV | 1V | 3V External Voltage Input Accuracy 0.03% Rdg 0.04% Rng (0.004%xkHz) 3uV Current Input PPA4500-LC 10Arms Shunt, 4mm Safety Connectors 10mApk ~ 30Apk (10Arms) (8 ranges = 10mA, 30mA, 100mA, 300mA, 1A, 3A, 10A, 30A) PPA4500 30Arms Shunt, 4mm Safety Connectors 100mApk ~ 300Apk (30Arms) (8 ranges = 100mA, 300mA, 1A, 3A, 10A, 30A, 100A, 300A) PPA4500-HC 50Arms Shunt, 50A Screw Type Safety Terminals 300mApk ~ 1000Apk (50Arms) (8 ranges = 300mA, 1A, 3A, 10A, 30A, 100A, 300A, 1KA) Internal Shunt Accuracy PPA4500-LC : 0.03% Rdg 0.04%Rng 0.004%xkHz 30uA PPA4500 : 0.03% Rdg 0.04% Rng 0.004%xkHz 300uA PPA4500-HC : 0.03% Rdg 0.04% Rng 0.004%xkHz 900uA External Current BNC Input Ranges 1Vpk ~ 3Vpk [BNC Connector 3Vpk Max Input] 8 Ranges = 1mV | 3mV | 10mV | 30mV | 100mV | 300mV | 1V | 3V External Current Input Accuracy 0.01% Rdg 0.038% Rng (0.004%/kHz) 3uV Phase Accuracy Degrees PPA4500-LC(10Arms) / PPA4500(30Arms) : 0.005deg (0.01deg/kHz) PPA4500-HC(50Arms) : 0.01deg (0.02deg/kHz) Power Accuracy Normal [0.04% 0.05%/pf (0.01%×kHz)/pf] Rdg 0.04%VA Rng 40Hz ~ 850Hz [0.03% 0.04%/pf (0.01%×kHz)/pf] Rdg 0.03%VA Rng General Crest Factor 20 (Voltage and Current) Sample Rate 1Ms/s on all channels | Real time No-Gap IEC Compliant Modes Fully Compliant: IEC62301/EN50564 Standby Power Mode Application Modes PWM Motor Drive | Transformer |20 Ballast | Inrush | Standby Power CMRR – Common Mode Rejection Ratio 250V @ 50Hz – ≥ 1mA (150dB) 100V @ 100kHz – ≥ 3mA (130dB) Measurement Parameters W | VA | Var | pf | V & A – rms | rectified mean | AC | DC | Peak | Surge | Crest Factor | Form Factor | Star to Delta Conversion | Delta to Star Conversion Frequency (Hz) | Phase (deg) | Fundamentals | Impedance Harmonics | THD | TIF | THF | TRD | TDD Integrated Values | Datalog | Sum, and Neutral Values Datalog (Up to 4 user-selectable measurement functions (60 with PC software) Datalog window No-Gap analysis | Minimum Window 2ms Memory RAM up to 16 000 records into flash RAM (Non-Volatile) Communication Ports Standard: RS232 | LAN | USB | Extension (Aux) Options: GPIB Standard Accessories Leads Power | RS232 | USB Connection Cables 36A 1.5m long 4mm stackable terminals. 1x red | 1x yellow | 2x black per phase (1x red, 1x black per phase with HC version) Connection Clips 4mm terminated alligator clips – 1x red | 1x yellow, and 2x black per phase (1x red | 1x black per phase with HC version) Instruction manual User manual | Communications manual Other documents Calibration certificate | Quick start guide Mechanical and Environmental Display 320×240 dot full-color TFT| White LED-backlit Dimensions 130H x 400W x 315D mm excluding feet Weight 5.4kg (1 Phase) | 6kg (3 Phase) Safety Isolation 1000Vrms or DC (CATII) | 600Vrms or DC (CATIII) Power Supply 90 ~ 265Vrms 50 ~ 60Hz 40VA Max Operating Conditions 5 deg – 40 deg ambient temperature (or air intake temperature when rack-mounted)| 20-90% Non-condensing relative humidity. High-Performance Power Analyzer | PPA4500
