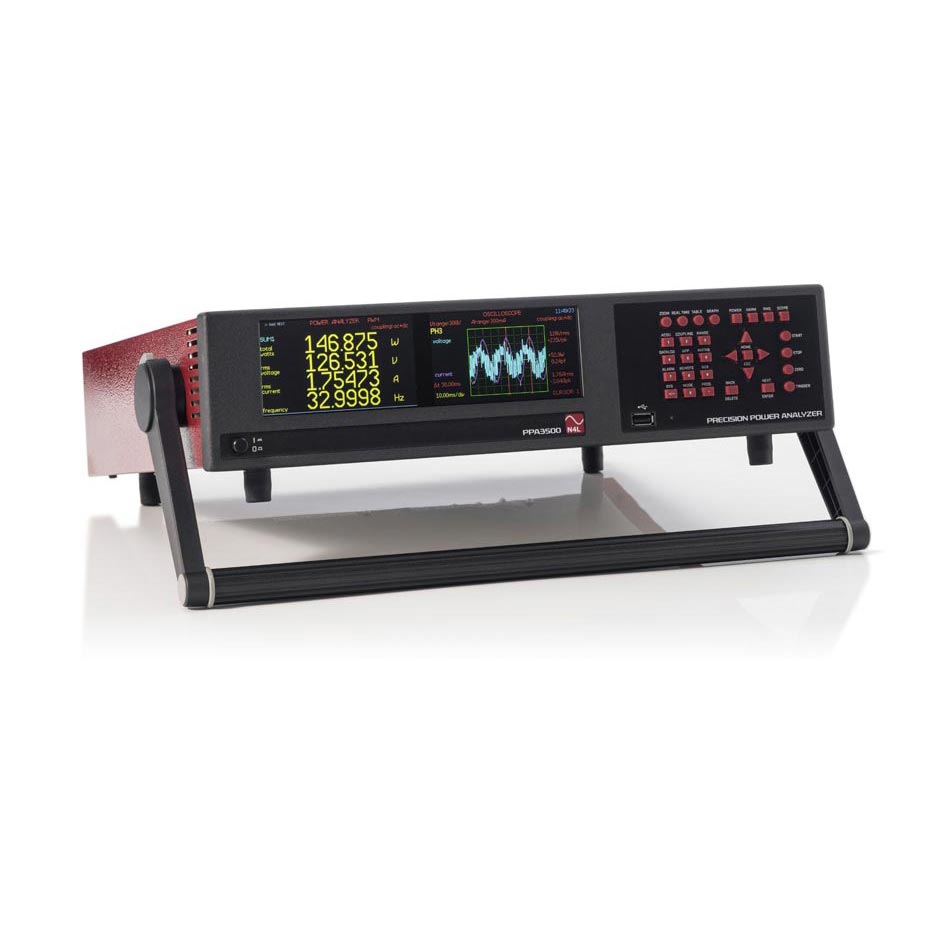

Benchtop Power Analyzer up to 8 Phase Analysis | PPA3500
Benchtop Power Analyzer up to 8 Phase Analysis | PPA3500
$ 91.07
Add to cart
Compare
Categories:
Samsung Lcd/Led
,
Description Benchtop Power Analyzer up to 8 Phase Analysis | PPA3500 Parameter Frequency Range Bandwidth DC, 10mHz ~ 1MHzRange 1 2: DC, 10mHz ~ 100kHz Voltage Input Internal Ranges Normal : 100mVpk ~ 2500Vpk (10 ranges = 100mV, 300mV, 1V, 3V, 10V, 30V, 100V, 300V, 1KV, 3KV) Internal Accuracy 1V~3000Vpk: 0.04% Rdg 0.1% Rng (0.005% x kHz) 5mV100mV ~ 300mV : 0.04% Rdg 0.1% Rng (0.01% x kHz) 1mV External Voltage BNC Input Ranges 1mVpk ~ 3Vpk [BNC Connector 3Vpk Max Input] 8 Ranges = 1mV, 3mV, 10mV, 30mV, 100mV, 300mV, 1V, 3V External Voltage Input Accuracy 0.04% Rdg 0.1% Rng (0.005% x kHz) 3uV Current Input PPA3500 LC – Low Current 20Arms Shunt, 4mm Safety Connectors 10mApk ~ 300Apk (20Arms) (10 ranges = 10mA, 30mA, 100mA, 300mA, 1A, 3A, 10A, 30A, 100A, 300A) PPA3500 30Arms Shunt, 4mm Safety Connectors 30mApk ~ 1000Apk (30Arms) (10 ranges =30mA, 100mA, 300mA, 1A, 3A, 10A, 30A, 100A, 300A, 1KA) Internal Shunt Accuracy 20Arms 100mA~300Apk: 0.04% Rdg 0.1% Rng 0.005% x kHz) 300uA10mA~30mApk : 0.04% Rdg 0.1% Rng 0.01% x kHz) 100uA Internal Shunt Accuracy HC 30Arms 300mA~1kApk: 0.04% Rdg 0.1% Rng 0.005% x kHz) 900uA30mA~100mApk : 0.04% Rdg 0.1% Rng 0.01% x kHz) 300uA External Current BNC Input Ranges 1mVpk ~ 3Vpk 8 Ranges = 1mV, 3mV, 10mV, 30mV, 100mV, 300mV, 1V, 3V External Current Input Accuracy 0.04% Rdg 0.1% Rng (0.005%/kHz) 3uV Phase Accuracy Range 3~10 0.005deg (0.01deg x kHz) Range 1 2 0.005deg (0.02deg x kHz) Power Accuracy Range 3~10 [0.1% 0.1%/pf (0.01% x kHz)/pf] Rdg 0.05% VA Rng Range 1 2 [0.1% 0.1%/pf (0.02% x kHz)/pf] Rdg 0.05% VA Rng 40Hz ~ 850Hz [0.06% 0.1%/pf (0.01% x kHz)/pf] Rdg 0.03% VA Rng General Crest Factor 20 (Voltage and Current) Sample Rate 1Ms/s on all channels, real-time No-Gap IEC Compliant Modes IEC62301 Standby Power Application Modes PWM Motor Drive, Ballast, Inrush, Power Transformer, Standby Power CMRR – Common Mode Rejection Ratio 250V @ 50Hz – ≥ 1mA (150dB) 100V @ 100kHz – ≥ 3mA (130dB) Measurement Parameters W, VA, Var, pf, V & A – RMS, rectified mean, AC, DC, peak, surge, crest factor, form factor, star to delta voltage, ve Pk, -ve Pk Frequency (Hz), Phase (deg), Fundamentals, Impedance Harmonics, THD, TIF, THF, TRD, TDD Integrated Values, Datalog, Sum and Neutral Values Datalog (Up to 4 user-selectable measurement functions (30 with PC software) Datalog window No-Gap analysis, Minimum Window 5ms Memory RAM up to 5M records Communication Ports RS232 Baud rate up to 38.4kbps, RTS/CTS flow control LAN 10/100 Base-T Ethernet auto sensing GPIB IEEE488.2 Compatible. USB USB 2.0 and 1.1 Compatible Analogue Output Bipolar ±10V (BNC) Speed Input BNC Bipolar ±10V or Pulse count 1Hz to 1MHz 0.01% Rdg Torque BNC Bipolar ±10V or Pulse count 1Hz to 1MHz 0.01% Rdg Standard Accessories Leads Power, RS232, USB Connection Cables 36A 1.5m long 4mm stackable terminals. 1x red, 1x yellow, 2x black per phase Connection Clips 4mm terminated alligator clips – 1x red, 1x yellow and 2x black per phase CD – ROM CommView2 (RS232 / USB / LAN) Command line, script-based communication software Documents Communications Manual, Calibration certificate, Quick start guide Mechanical and Environmental Display 972×272 dot full-colour Super Wide Screen TFT, White LED Backlit Dimensions 92H x 404W x 346D mm excluding feet Weight 5.9kg (3 Phase), 8.8kg (6Phase) Safety Isolation 1000Vrms or DC (CATII), 600Vrms or DC (CATIII) Power Supply 90 ~ 265Vrms, 50 ~ 60Hz, 50VA Max Operating Conditions 23⁰C ± 5⁰C Ambient Temperature ( or air intake temperature when rack-mounted ), 20-90% Non-Condensing Relative Humidity. Temperature coefficient ±0.01% per ⁰C of reading at 5-18⁰C and 28-40⁰C Benchtop Power Analyzer up to 8 Phase Analysis | PPA3500
