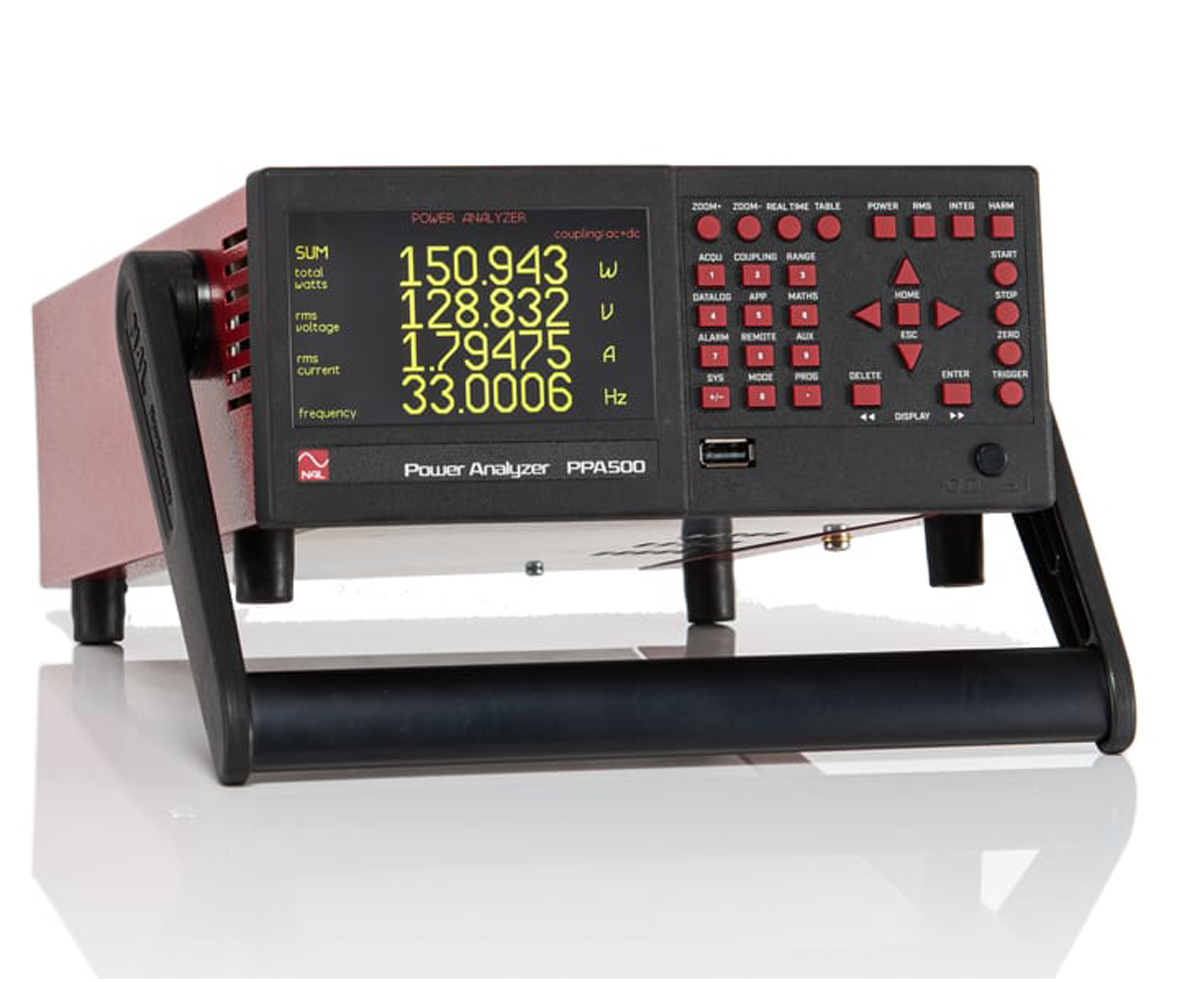

Power Analyzer Compact Three Phase – PPA500

$ 93.30

Compare

Categories: Samsung Lcd/Led,

Description Power Analyzer Compact Three Phase – PPA500 Parameter Frequency Range Bandwidth DC, 10mHz ~ 500kHz x10 DC, 10mHz ~ 100kHz Voltage Input Internal Ranges Normal : 1Vpk ~ 2500Vpk (8 ranges = 1V, 3V, 10V, 30V, 100V, 300V, 1KV, 3KV) x10 100mVpk ~ 300Vpk (8 ranges = 100mV, 300mV, 1V, 3V,10V,30V,100V,300V) Internal Accuracy Normal : 0.05% Rdg 0.1% Rng (0.005%xkHz) 5mV x10 : 0.05% Rdg 0.1% Rng (0.01%xkHz) 1mV External Voltage BNC Input Ranges 1mVpk ~ 3Vpk [BNC Connector 3Vpk Max Input] 8 Ranges = 1mV, 3mV, 10mV, 30mV, 100mV, 300mV, 1V, 3V External Voltage Input Accuracy 0.05% Rdg 0.1% Rng (0.005%xkHz) 5uV Current Input PPA500 20Arms Shunt, 4mm Safety Connectors Normal : 100mApk ~ 300Apk (20Arms) (8 ranges = 100mA, 300mA, 1A, 3A, 10A, 30A, 100A, 300A) x10 : 10mApk ~ 30Apk (8 ranges = 10mA, 30mA, 100mA, 300mA, 1A, 3A, 10A, 30A) PPA500-HC 30Arms Shunt, 4mm Safety Connectors Normal : 300mApk ~ 1000Apk (30Arms) (8 ranges = 300mA, 1A, 3A, 10A, 30A, 100A, 300A, 1KA) x10 : 30mApk ~ 100Apk (8 ranges = 30mA, 100mA, 300mA, 1A, 3A, 10A, 30A, 100A) Internal Shunt Accuracy 20Arms Normal : 0.05% Rdg 0.1% Rng (0.005% x kHz) 500uA x10 : 0.05% Rdg 0.1% Rng (0.01% x kHz) 100uA Internal Shunt Accuracy HC 30Arms Normal : 0.05% Rdg 0.1% Rng (0.005% x kHz) 1mA x10 : 0.05% Rdg 0.1% Rng (0.01% x kHz) 300uA External Current BNC Input Ranges 1mVpk ~ 3Vpk 8 Ranges = 1mV, 3mV, 10mV, 30mV, 100mV, 300mV, 1V, 3V External Current Input Accuracy 0.05% Rdg 0.1% Rng (0.005%/kHz) 5uV Phase Accuracy Normal 0.01deg (0.01deg/kHz) x10 0.01deg (0.02deg/kHz) Power Accuracy Normal [0.1% 0.1%/pf (0.01%/kHz)/pf] Rdg 0.1% VA Rng x10 [0.1% 0.1%/pf (0.02%/kHz)/pf] Rdg 0.1% VA Rng 40Hz ~ 850Hz As above with range error reduced from 0.1% V,A,VA Rng to 0.05% V,A, VA Rng General Crest Factor 20 (Voltage and Current) Sample Rate 1Ms/s on all channels, real time No-Gap IEC Compliant Modes IEC62301/EN50564 Standby Power Mode Application Modes Ballast, Inrush, Standby Power CMRR – Common Mode Rejection Ratio 250V @ 50Hz – ≥ 1mA (150dB) 100V @ 100kHz– ≥ 3mA (130dB) Measurement Parameters W, VA, Var, pf, V & A – rms, rectified mean, AC, DC, peak, surge, crest factor, form factor, star to delta conversion, delta to star conversion Frequency (Hz), Phase (deg), Fundamentals, Impedance Harmonics, THD, TIF, THF, TRD, TDD Integrated Values, Datalog, Sum and Neutral Values Datalog (Up to 4 user selectable measurement functions (60 with PC software) Datalog window No-Gap analysis, Minimum Window 10ms Memory RAM up to 16,000 records Communication Ports RS232, LAN, USB, Extension (Aux) Standard Accessories Leads Power, RS232, USB Connection Cables 20A (Std Version) or 30A (HC version) 1.5m long 4mm stackable terminals. 1x red, 1x yellow, 2x black per phase Connection Clips 4mm terminated alligator clips – 1x red, 1x yellow and 2x black per phase Instruction manual User manual, Communications manual Other documents Calibration certificate, Quick start guide Mechanical and Environmental Display 480×272 dot full colour TFT, White LED backlit Dimensions 92H x 215W x 312D mm excluding feet Weight 3.3kg (1 Phase), 4kg (3 Phase) Safety Isolation 1000Vrms or DC (CATII), 600Vrms or DC (CATIII) Power Supply 90 ~ 265Vrms, 50 ~ 60Hz, 40VA Max Operating Conditions 5 deg to 40 deg ambient temperature (or air intake temperature when rack mounted), 20-90% Non-condensing relative humidity. Power Analyzer Compact Three Phase – PPA500

Power Analyzer Compact Three Phase – PPA500
