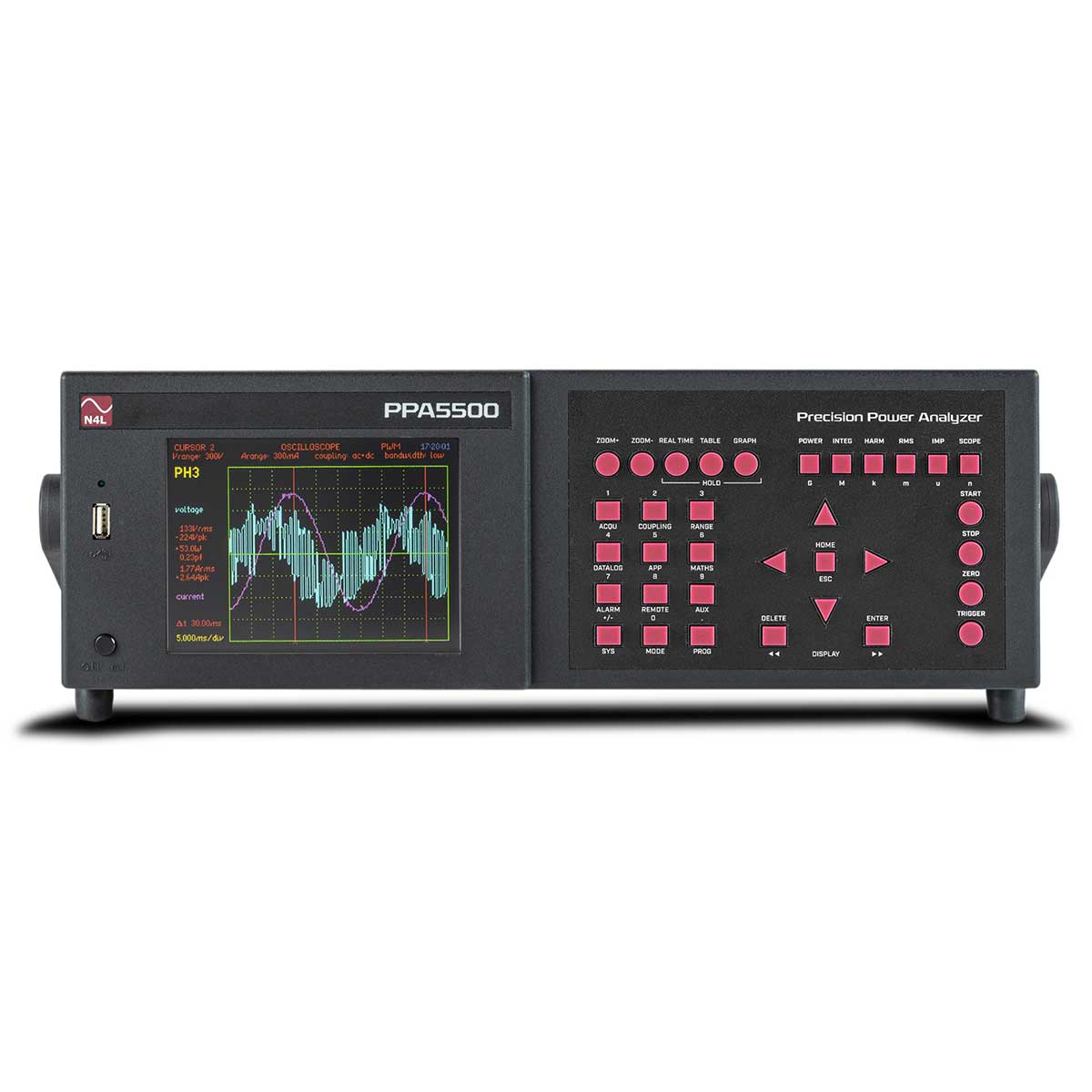

Precision Power Analyzer | PPA5500
Precision Power Analyzer | PPA5500
$ 91.97
Add to cart
Compare
Categories:
Samsung Lcd/Led
,
Description Precision Power Analyzer PPA5500 Technical Specifications Frequency Range Bandwidth PPA5500(30Arms) | PPA5500-LC(10Arms) DC : 10mHz ~ 2MHzPPA5500-HC(50Arms) : DC, 10mHz ~ 1MHz Voltage Input Internal Ranges Normal : 300mVpk ~ 3000Vpk (9 ranges = 300mV, 1V, 3V, 10V, 30V, 100V, 300V, 1KV, 3KV) (240Vrms within 300Vpk range, using 20% over range) Internal Accuracy Normal : 0.01% Rdg 0.038% Rng (0.004% x kHz) 5mV Internal Voltage Input Impedance 3Mohm in parallel with 5pF | 90pF common mode to chassis External Voltage BNC Input Ranges 300uVpk ~ 3Vpk [BNC Connector 3Vpk Max Input]9 Ranges = 300uV | 1mV | 3mV | 10mV | 30mV | 100mV | 300mV | 1V | 3V External Voltage Input Accuracy 0.01% Rdg 0.038% Rng (0.004%xkHz) 3uV External Voltage Input Impedance 1Mohm in parallel with 40pF | 90pF common mode to chassis Current Input PPA5500-LC 10Arms Shunt, 4mm Safety Connectors 3mApk ~ 30Apk (10Arms)(9 ranges = 3mA, 10mA, 30mA, 100mA, 300mA, 1A, 3A, 10A, 30A) PPA5500 30Arms Shunt, 4mm Safety Connectors 30mApk ~ 300Apk (30Arms)(9 ranges = 30mA, 100mA, 300mA, 1A, 3A, 10A, 30A, 100A, 300A) PPA5500-HC 50Arms Shunt, 50A Screw Type Safety Terminals 100mApk ~ 1000Apk (50Arms)(9 ranges = 100mA, 300mA, 1A, 3A, 10A, 30A, 100A, 300A, 1KA) Internal Shunt Accuracy PPA5500-LC : 0.01% Rdg 0.038% Rng 0.004%xkHz 30uA PPA5500 : 0.01% Rdg 0.038% Rng 0.004%xkHz 300uA PPA5500-HC : 0.01% Rdg 0.038% Rng 0.004%xkHz 900uA External Current BNC Input Ranges 300uVpk ~ 3Vpk [BNC Connector 3Vpk Max Input] 9 Ranges = 300uV | 1mV | 3mV | 10mV | 30mV | 100mV | 300mV | 1V | 3V External Current Input Accuracy 0.01% Rdg 0.038% Rng (0.004%/kHz) 3uV Phase Accuracy Degrees PPA5500-LC(10Arms) / PPA5500(30Arms) : 0.005deg (0.01deg/kHz)PPA5500-HC(50Arms) : 0.01deg (0.02deg/kHz) Power Accuracy 10mHz ~ 2MHz [0.03% 0.03%/pf (0.005%×kHz)/pf] Rdg 0.03%VA Rng 40Hz ~ 850Hz [0.02% 0.03%/pf (0.005%×kHz)/pf] Rdg 0.01%VA Rng 16Hz ~ 450Hz Low PF See PPA5500-TE Brochure General Crest Factor 20 (Voltage and Current) Sample Rate 2.2Ms/s on all channels | Real time No-Gap IEC Compliant Modes Pre Compliant: IEC61000-3-2 | IEC61000-3-3 |IEC61000-3-11 | IEC61000-3-12Fully Compliant: IEC62301/EN50564 Standby Power Mode Application Modes PWM Motor Drive | Harmonics and Flicker | Transformer | TTV105 (Airbus ADB0100 Inter harmonics) | Ballast | Inrush | Standby Power CMRR – Common Mode Rejection Ratio 250V @ 50Hz ? ? 1mA (150dB)100V @ 100kHz ? ? 3mA (130dB) Measurement Parameters W | VA | Var | pf | V & A – rms | rectified mean |AC | DC | Peak | Surge | Crest Factor | Form Factor |Star to Delta Conversion | Delta to Star Conversion Frequency (Hz) | Phase (deg) | Fundamentals | Impedance Harmonics | THD | TIF | THF | TRD | TDD Integrated Values | Datalog | Sum, and Neutral Values Datalog (Up to 4 user-selectable measurement functions (60 with PC software) Datalog window No-Gap analysis | Minimum Window 2ms Memory RAM up to 10M records into flash RAM (Non-Volatile) Communication Ports RS232 | LAN | USB | GPIB | Extension (Aux) Standard Accessories Leads Power | RS232 | USB Connection Cables 36A 1.5m long 4mm stackable terminals.1x red | 1x yellow | 2x black per phase(1x red, 1x black per phase with HC version) Connection Clips 4mm terminated alligator clips – 1x red | 1x yellow, and 2x black per phase(1x red | 1x black per phase with HC version) Instruction manual User manual | Communications manual Other documents Calibration certificate | Quick start guide Mechanical and Environmental Display 320×240 dot full-color TFT| White LED-backlit Dimensions 130H x 400W x 315D mm excluding feet Weight 5.4kg (1 Phase) | 6kg (3 Phase) Safety Isolation 1000Vrms or DC (CATII) | 600Vrms or DC (CATIII) Power Supply 90 ~ 265Vrms50 ~ 60Hz40VA Max Operating Conditions 5 deg – 40 deg ambient temp (or air intake temp when rack-mounted)| 20-90% Non-condensing relative humidity. Precision Power Analyzer | PPA5500
