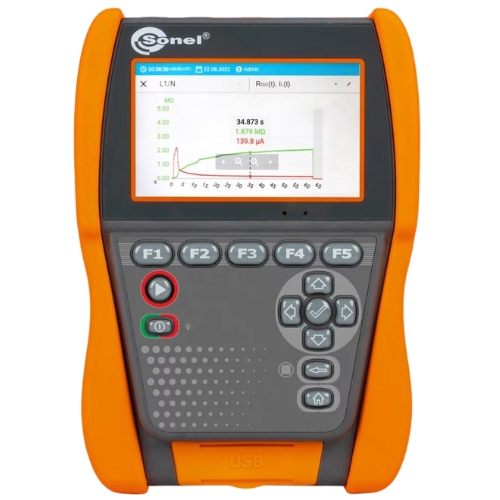

Insulation Resistance Meter | MIC-2511

$ 99.22

Compare

Categories: Samsung Lcd/Led,

Description Insulation Resistance Meter | MIC-2511 Measurement range acc. to EN IEC 61557-2 forISOmin=UISOnom/IISOnom…≤ 2 TΩ (IISO=1.6 mA) Range Resolution Accuracy 0.0…999.9 kΩ 0.1 kΩ ±(3% m.v. 20 digits) 1.000…9.999 MΩ 0.001 MΩ ±(3% m.v. 20 digits) 10.00…99.99 MΩ 0.01 MΩ ±(3% m.v. 20 digits) 100.0…999.9 MΩ 0.1 MΩ ±(3% m.v. 20 digits) 1.000…9.999 GΩ 0.001 GΩ ±(3% m.v. 20 digits) 10.00…99.99 GΩ 0.01 GΩ ±(3% m.v. 20 digits) 100.0…999.9 GΩ 0.1 GΩ ±(3% m.v. 20 digits) 1.000…2.000 TΩ 0.001 TΩ ±(3% m.v. 20 digits) „m.v.” – measured value Values of measured resistance depending on measurement voltage Voltage Un Measurement range 10 V 10 GΩ 25 V 20 GΩ 50 V 50 GΩ 100 V 100 GΩ 250 V 250 GΩ 500 V 500 GΩ 1000 V 1.00 TΩ 2500 V 2.00 TΩ DC and AC voltage measurement Range Resolution Accuracy 0…1500 V 1 V ±(3% m.v. 2 digits) frequency range: 45…65 Hz Capacitance measurement Range Resolution Accuracy 0…999 nF 1 nF ±(5% m.v. 5 digits) 1.00…9.99 μF 0.01 μF ±(5% m.v. 5 digits) Continuity test with current 200 mA Measurement range acc. to EN IEC 61557-2: 0.10…999 Ω Range Resolution Accuracy 0.00…19.99 Ω 0.01 Ω ±(2% m.v. 3 digits) 20.0…199.9 Ω 0.1 Ω ±(2% m.v. 3 digits) 200…999 Ω 1 Ω ±(4% m.v. 3 digits) Temperature measurement Range Resolution Accuracy -40.0…99.9°C 0.1°C ±(3% m.v. 8 digits) -40.0…211.8°F 0.1°F ±(3% m.v. 16 digits) Insulation resistance measurement in EPA areas Range Resolution Accuracy for Un = 10 V 0.0…999.9 kΩ 0.1 kΩ ±(8% m.v. 20 digits) 1.0…9.999 MΩ 0.001 MΩ ±(8% m.v. 20 digits) 10.00…99.99 MΩ 0.01 MΩ ±(8% m.v. 20 digits) 100.0…999.9 MΩ 0.1 MΩ ±(8% m.v. 20 digits) 1.0…10.0 GΩ 0.1 GΩ ±(8% m.v. 20 digits) for Un = 100 V 0.0…999.9 kΩ 0.1 kΩ ±(3% m.v. 20 digits) 1.000…9.999 MΩ 0.001 MΩ ±(3% m.v. 20 digits) 10.00…99.99 MΩ 0.01 MΩ ±(3% m.v. 20 digits) 100.0…999.9 MΩ 0.1 MΩ ±(3% m.v. 20 digits) 1.000…9.999 GΩ 0.001 GΩ ±(3% m.v. 20 digits) 10.00…99.99 GΩ 0.01 GΩ ±(3% m.v. 20 digits) 100.0…200.0 GΩ 0.1 GΩ ±(8% m.v. 20 digits) for Un = 500 V 0.0…999.9 kΩ 0.1 kΩ ±(3% m.v. 20 digits) 1.000…9.999 MΩ 0.001 MΩ ±(3% m.v. 20 digits) 10.00…99.99 MΩ 0.01 MΩ ±(3% m.v. 20 digits) 100.0…999.9 MΩ 0.1 MΩ ±(3% m.v. 20 digits) 1.000…9.999 GΩ 0.001 GΩ ±(3% m.v. 20 digits) 10.00…9999 GΩ 0.01 GΩ ±(3% m.v. 20 digits) 100.0…999.9 GΩ 0.1 GΩ ±(8% m.v. 20 digits) 1000 GΩ 1 GΩ ±(8% m.v. 20 digits) Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost. Insulation Resistance Meter | MIC-2511

Insulation Resistance Meter | MIC-2511
