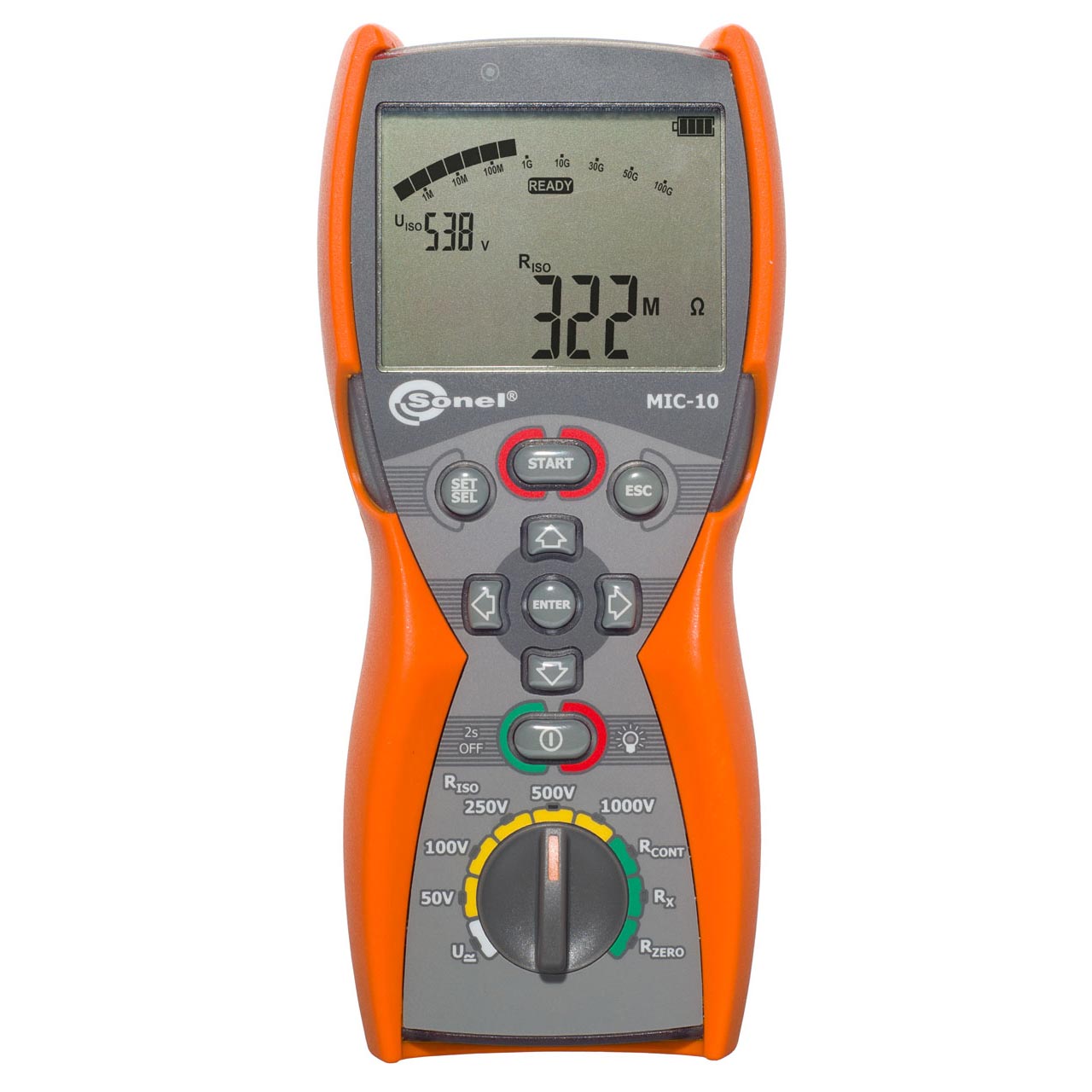

Description Mega Ohm meter | MIC-10 Electric safety of Mega Ohm meter: type of insulation: double, according to EN 61010 – 1 and IEC 61557 measurement category: IV 600 V (III 1000 V) according to EN 61010 – 1 protection class acc. to EN 60529: IP67 Other technical specifications: power supply: 4 alkaline batteries or battery package Ni-MH weight: ~1 kg dimensions: 220 x 100 x 60 mm Insulation resistance measurement (Mega Ohm meter) Measuring range according to EN 61557 – 2 for UN=50 V: 50 kΩ…250,0 MΩ Range Resolution Accuracy 0,0…999,9 kΩ 0,1 kΩ ±(3% m.v. 8 digits) 1,000…9,999 MΩ 0,001 MΩ ±(3% m.v. 8 digits) 10,00…99,99 MΩ 0,01 MΩ ±(3% m.v. 8 digits) 100,0…250,0 MΩ 0,1 MΩ ±(3% m.v. 8 digits) Measuring range according to EN 61557 – 2 for UN=100 V: 100 kΩ…500,0 MΩ Range Resolution Accuracy 0,0…999,9 kΩ 0,1 kΩ ±(3% m.v. 8 digits) 1,000…9,999 MΩ 0,001 MΩ ±(3% m.v. 8 digits) 10,00…99,99 MΩ 0,01 MΩ ±(3% m.v. 8 digits) 100,0…500,0 MΩ 0,1 MΩ ±(3% m.v. 8 digits) Measuring range according to EN 61557 – 2 for UN=250 V: 250 kΩ…2,000 GΩ Range Resolution Accuracy 0,0…999,9 kΩ 0,1 kΩ ±(3% m.v. 8 digits) 1,000…9,999 MΩ 0,001 MΩ ±(3% m.v. 8 digits) 10,00…99,99 MΩ 0,01 MΩ ±(3% m.v. 8 digits) 100,0…999,0 MΩ 0,1 MΩ ±(3% m.v. 8 digits) 1,000…2,000 GΩ 0,001 GΩ ±(3% m.v. 8 digits) Measuring range according to PN-EN 61557 – 2 for UN=500 V: 500 kΩ…5,00 GΩ Range Resolution Accuracy 0,0…999,9 kΩ 0,1 kΩ ±(3% m.v. 8 digits) 1,000…9,999 MΩ 0,001 MΩ ±(3% m.v. 8 digits) 10,00…99,99 MΩ 0,01 MΩ ±(3% m.v. 8 digits) 100,0…999,0 MΩ 0,1 MΩ ±(3% m.v. 8 digits) 1,000…5,000 GΩ 0,001 GΩ ±(4% m.v. 6 digits) Measuring range according to EN 61557 – 2 for UN=1000 V: 1000 kΩ…10,00 GΩ Range Resolution Accuracy 0,0…999,9 kΩ 0,1 kΩ ±(3% m.v. 8 digits) 1,000…9,999 MΩ 0,001 MΩ ±(3% m.v. 8 digits) 10,00…99,99 MΩ 0,01 MΩ ±(3% m.v. 8 digits) 100,0…999,0 MΩ 0,1 MΩ ±(3% m.v. 8 digits) 1,000…5,000 GΩ 0,001 GΩ ±(4% m.v. 6 digits) 5,00…10,00 GΩ 0,01 GΩ ±(4% m.v. 6 digits) Continuity measurement of protective and equipotential conductors with the 200 mA current Measuring range according to EN 61557 – 4: 0,10…1999 Ω Range Resolution Accuracy 0,00…19,99 Ω 0,01 Ω ±(2% m.v. 3 digits) 20,0…199,9 Ω 0,1 Ω ±(2% m.v. 3 digits) 200…999 Ω 1 Ω ±(4% m.v. 3 digits) Voltage on open terminals: <8 V Output current at R <2 Ω: ISC >200 mA: ISC >200 mA Compensation of test leads’ resistance Unidirectional current flow Low-voltage and resistance measurement Range Resolution Accuracy 0,0…199,9 Ω 0,1 Ω ±(3% m.v. 3 digits) 200…1999 Ω 1 Ω ±(3% m.v. 3 digits) Voltage on open terminals: <8 V Current for closed terminals 5 mA < ISC < 15 mA Sound signal and green LED on when measured resistance < 30 Ω ± 50% Compensation of test leads’ resistance Capacitance measurements Range wyświetlania Resolution Accuracy 1…999 nF 1 nF ±(5% m.v. 10 digits) 1,00…9,99µF 0,01µF ±(5% m.v. 10 digits) Capacitance value displayed during the RISO measurement For test voltages below 100 V and measured resistance below 10 MΩ, unspecified capacitance measurement error Measurement of alternating and direct voltage Range Resolution Accuracy 0,0…299,9 V 0,1 V ±(2% m.v. 6 digits) 300…600 V 1 V ±(2% m.v. 2 digits) Frequency range: 45…65 Hz Mega Ohm meter | MIC-10
