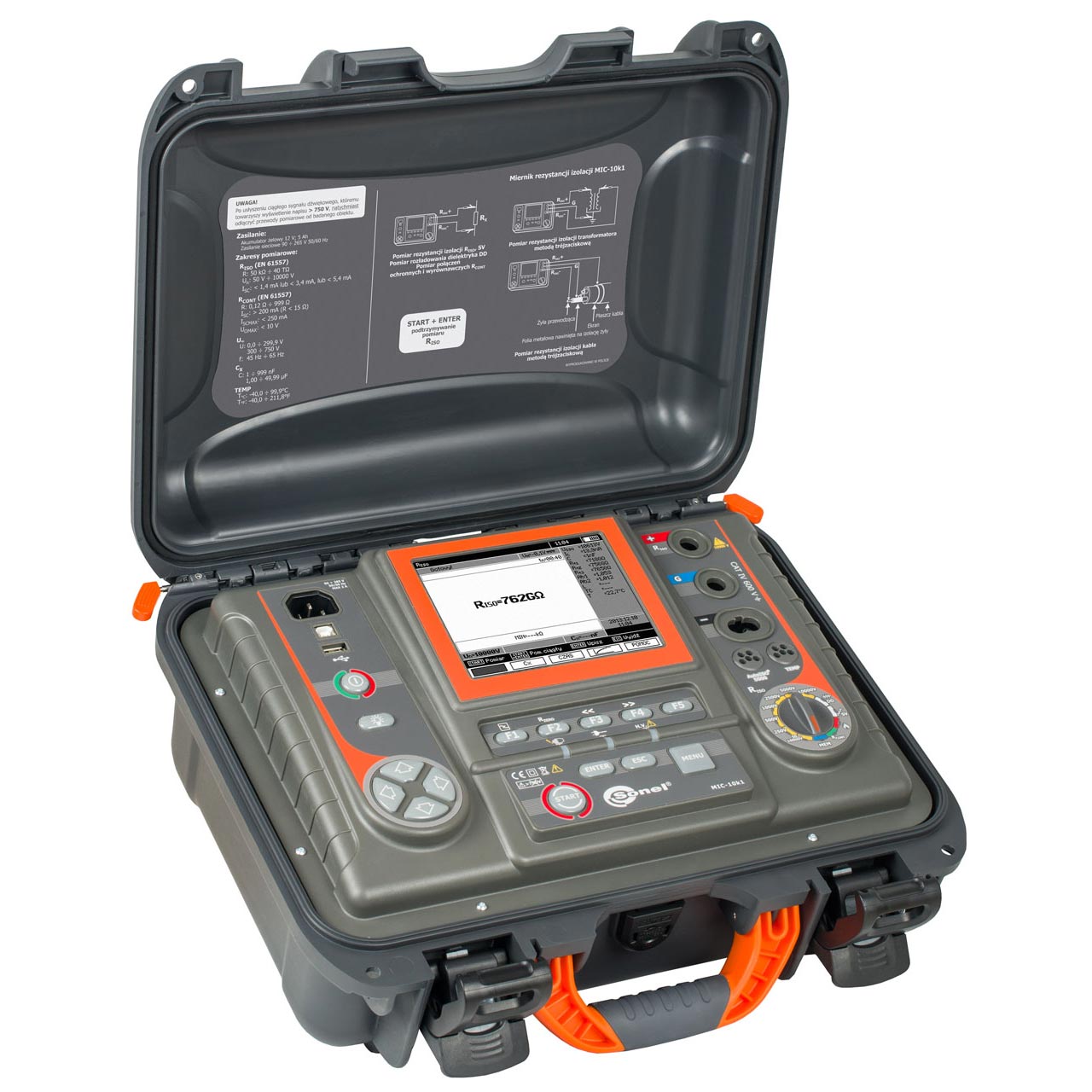

Description 10kV Insulation Resistance meter up to 40 Tera-Ohm | MIC10k1 Measurement range acc. to IEC 61557-2: UN = 10000V: 10,0MΩ…40,0TΩ Range Resolution Accuracy 0,0…999 kΩ 1 kΩ ±(3% m.v. 10 digits) 1,00…9,99 MΩ 0,01 MΩ 10,0…99,9 MΩ 0,1 MΩ 100…999 MΩ 1 MΩ 1,00…9,99 GΩ 0,01 GΩ 10,0…99,9 GΩ 0,1 GΩ 100…999 GΩ 1 GΩ ±(3,5% m.v. 10 digits) 1,00…9,99 TΩ 0,01 TΩ ±(7,5% m.v. 10 digits) 10,0…20,0 TΩ 0,1 TΩ ±(12,5% m.v. 10 digits) 10,0…40,0 TΩ Values of measured resistance depending on measurement voltage Voltage UISO Measurement range AutoISO-5000 measurement range 50 V 200 GΩ 20,0 GΩ 100 V 400 GΩ 40,0 GΩ 250 V 1,00 TΩ 100 GΩ 500 V 2,00 TΩ 200 GΩ 1000 V 4,00 TΩ 400 GΩ 2500 V 10,00 TΩ 400 GΩ 5000 V 20,0 TΩ 400 GΩ 10 000 V 40,0 TΩ – Step voltage insulation resistance measurement Voltage UISO MIC-10k1 50…1000 V 10 V 1000…5000 V 25 V 5000…10000 V 25 V Continuity measurement of protective connections and equipotential bonding with 200 mA current Measurement range acc. to EN 61557-4: 0,12…999 Ω Range Resolution Accuracy 0,00…19,99 Ω 0,01 Ω ±(2%m.v. 3 digits) 20,0…199,9 Ω 0,1 Ω 200…999 Ω 1 Ω ±(4%m.v. 3 digits) Voltage on open terminals: 4…24 V Output current at R < 15 Ω: min. 200 mA (ISC: 200…250 mA) Compensation of test lead resistance Current flowing in both directions, mean value of resistance is displayed DC and AC voltage measurement Range Resolution Accuracy 0.0…29,9 V 0,1 V ±(2% m.v. 20 digits) 30,0…299,9 V 0,1 V ±(2%m.v. 6 digits) 300…750 V 1 V ±(2% m.v. 2 digits) Frequency range: 45…65Hz Measurement of capacitance Display range Resolution Accuracy 1…999 nF 1 nF ±(5%m.v. 5 digits) 1,00…49,99 µF 0,01 µF capacity measurement result is displayed after the RISO measurement for measuring voltages under 100 V capacitance measurement accuracy not specified Measurement of temperature Display range Resolution Accuracy -40,0…99,9 °C 1 °C ±(3%m.v. 8 digits) -40,0…211,8 °F 1 °F ±(3%m.v. 16 digits) Electrical safety: type of insulation: double, in acc. with EN 61010-1 and IEC 61557 measurement category: IV 600 V (III 1000 V) in acc. with EN 61010-1 case protection rating in acc. with EN 60529: IP40 (IP67 – with lid closed) Other technical specifications: power supply of the meter: built-in battery pack weight of the meter: approx. 5,6 kg dimensions: 390 x 310 x 180 mm display: graphic LCD 5,6′ transmission of measurement results USB or Bluetooth®10kV Insulation Resistance meter up to 40 Tera-Ohm | MIC10k1 “m.v.” measured reference value 10kV Insulation Resistance meter up to 40 Tera-Ohm | MIC10k1
