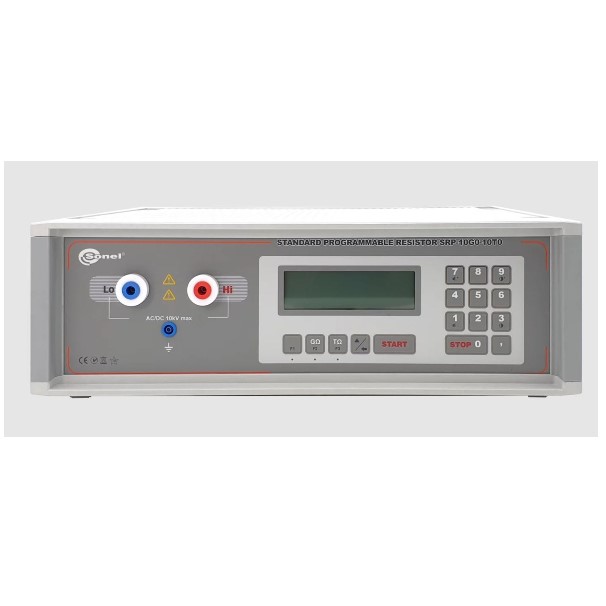

Description Standard Programmable Resistor SRP-10G0-10T0 Technical specifications: Resistance range Resolution Accuracy 10…990 GΩ 10 GΩ 1% 1…10 TΩ 0.1 TΩ 1.5% Additional Technical Specifications: Supply voltage U: 100…240 V ACX (50/60 Hz) Maximum power consumption: 75 VA Operating temperature range: 10…30ºC Maximum current in the measuring circuit: 3 mA Maximum operating voltage: 10 000 V DC Long-term stability of resistors: <1% Maximum operating altitude: 2000 m Dimension: 540 x 450 x 200 mm Weight: approx. 15 kg The calibrator is designed for operating in the temperature range 10…30ºС, relative humidity from 25 to 60% and atmospheric pressure from 630 to 800 millimetres of mercury. Storage temperature in the original packing: -20… 60ºС at max relative humidity 80% for temperatures to 31ºС, decreasing to 50% at 40ºС. Storage temperature range without packaging: 10… 30ºС at relative humidity to 80%. Standard Programmable Resistor SRP-10G0-10T0
