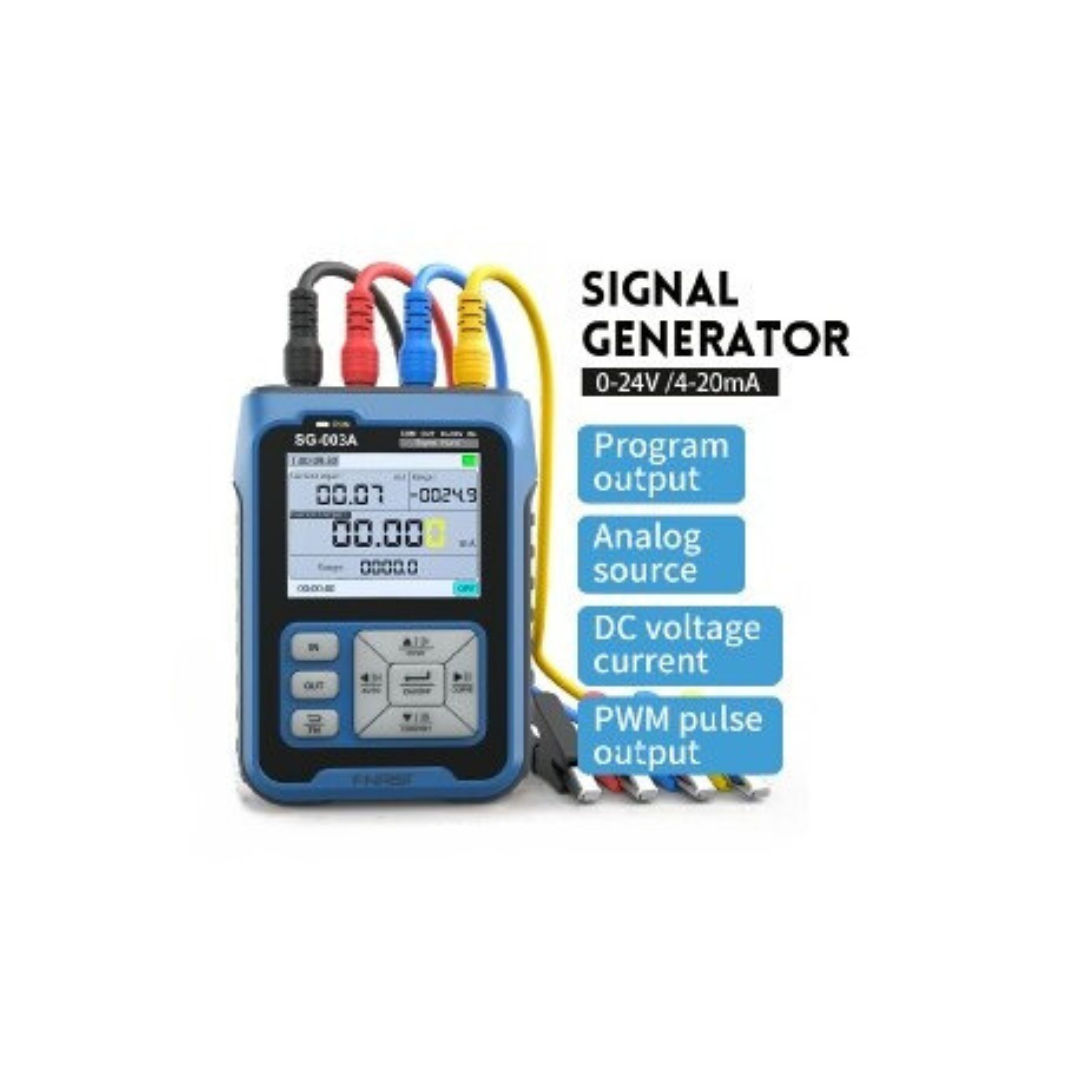

Description Voltage and Current Loop Signal Calibrator | SG-003A Model SG-003A Read & Source Measure (Input) and Source (Output) Simultaneously Active Current (mA) 0.00~24.00mA / ±(0.1% 0.005) Passive Current (XMT) 0.00~24.00mA (max. 30VDC) 24V Loop 0.00~24.00mA (24V or 12V selectable) Voltage (V) 0.00~24.00V / ±(0.1% 0.005) Frequency (Hz/PWM) 0~9999Hz / ±2% (Source only) Output Functions Direct Signal Output or User Configurable: Pre-set values (Stepping) Ramping (Programmable rise, fall and cycle time) Input signal linear conversion to an output signal Engineering units setting of input and output signals Real-time curve display Continuous or timed output Display 5 Digit graphic and backlit 2.4” TFT full-colour LCD screen Communication USB, Modbus Slave, Emulated U-disk for firmware updates Power Supply Built-in 3.7V 3000mAh rechargeable battery (up to 10 hours continuous use) Weight approx. 165g Dimensions (mm) 112 x 82 x 44mm Accessories c/w USB charger, Type-C cable, 4 x test leads with alligator clips and user manual Voltage and Current Loop Signal Calibrator | SG-003A
