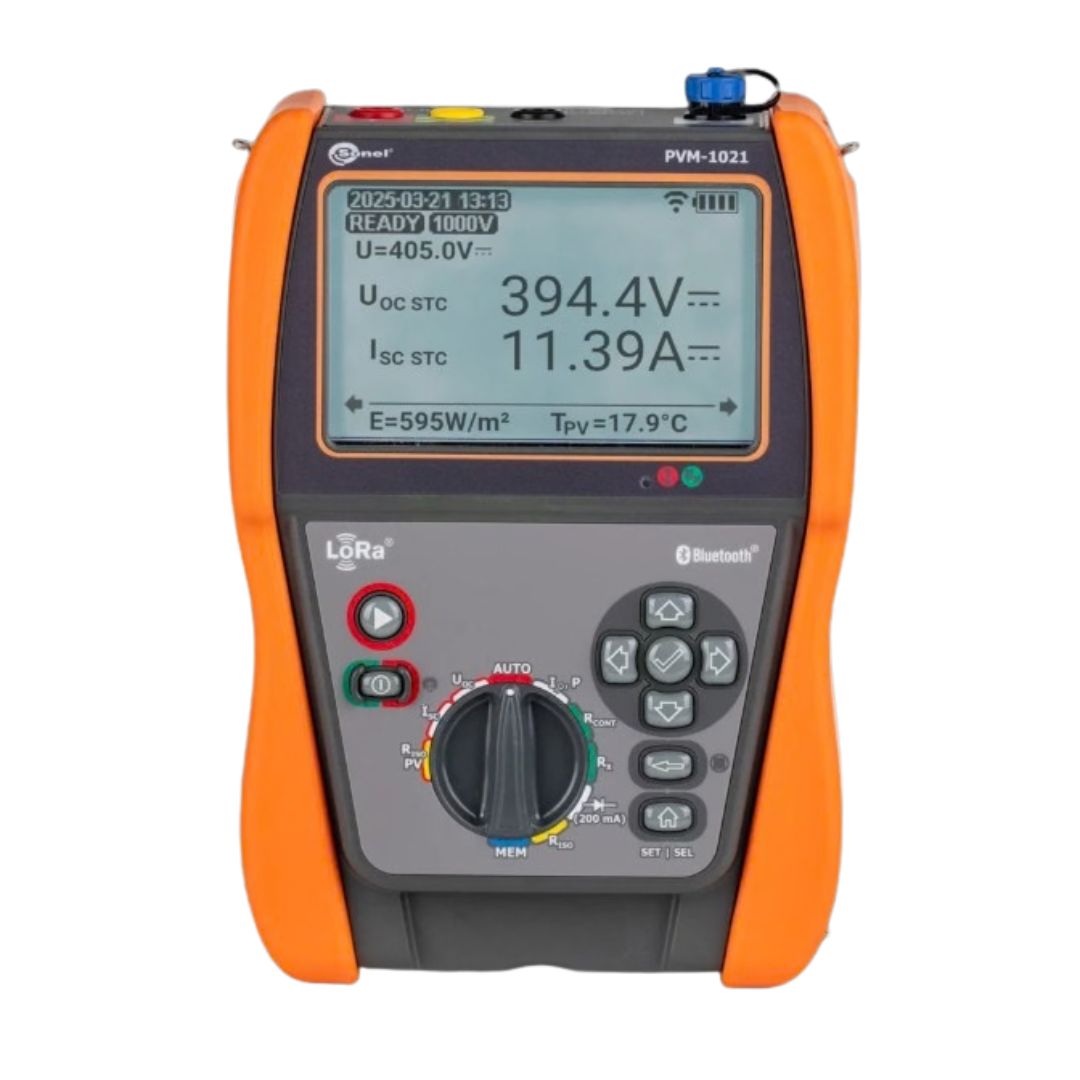

Description Photovoltaic Meter | PVM-1021 Parameter Measurement range Display range Resolution Accuracy Voltage AC voltage 0.0 V…600.0 V 0.0 V…600.0 V 0.1 V ±(2% m.v. 2 digits) DC voltage 0.0 V…1000.0 V 0.0 V…1000.0 V 0.1 V ±(0.5% m.v. 2 digits) Short circuit current ISC 0.00…20.00 A 0.00…20.00 A 0.01 A ±(1% m.v. 2 digits) Insulation resistance Insulation resistance at AC side Measuring voltage 250 V 250.0 kΩ…2.000 GΩ acc. to EN IEC 61557-2 0.0 kΩ…2.000 GΩ from 0.1 kΩ ±(3% m.v. 8 digits) Measuring voltage 500 V 250 kΩ…5.000.0 GΩ acc. to EN IEC 61557-2 0.0 kΩ…5.000 GΩ from 0.1 kΩ from ±(3% m.v. 8 digits) Measuring voltage 1000 V 500 kΩ…9.999.0 GΩ acc. to EN IEC 61557-2 0.0 kΩ…9.999 GΩ from 0.1 kΩ from ±(3% m.v. 8 digits) Insulation resistance at DC side Measuring voltage 250 V / 500 V / 1000 V 250 kΩ…300.0 MΩ acc. to EN IEC 61557-2 0.0 kΩ…300.0MΩ from 0.1 kΩ ±(3% m.v. 8 digits) Resistance of protective conductors and equipotential bondings Measurement of resistance of protective conductors and equipotential bondings with ±200 mA current 0.11 Ω…1999 Ω acc. to EN IEC 61557-4 0.00 Ω…1999 Ω from 0.01 Ω from ±(2% m.v. 3 digits) Measurement of resistance with low current 0.0 Ω…1999 Ω 0.0 Ω…1999 Ω from 0.01 Ω ±(3% m.v. 3 digits) Current measurement 0.0 A…400.0 A 0.0 A…400.0 A from 0.01 Ω from ±(5% m.v. 2 digits) Power measurement 0.00 kW…100.00 kW 0.00 kW…100.00 kW 0.01 kW ±(6% m.v. 5 digits) Photovoltaic Meter | PVM-1021
