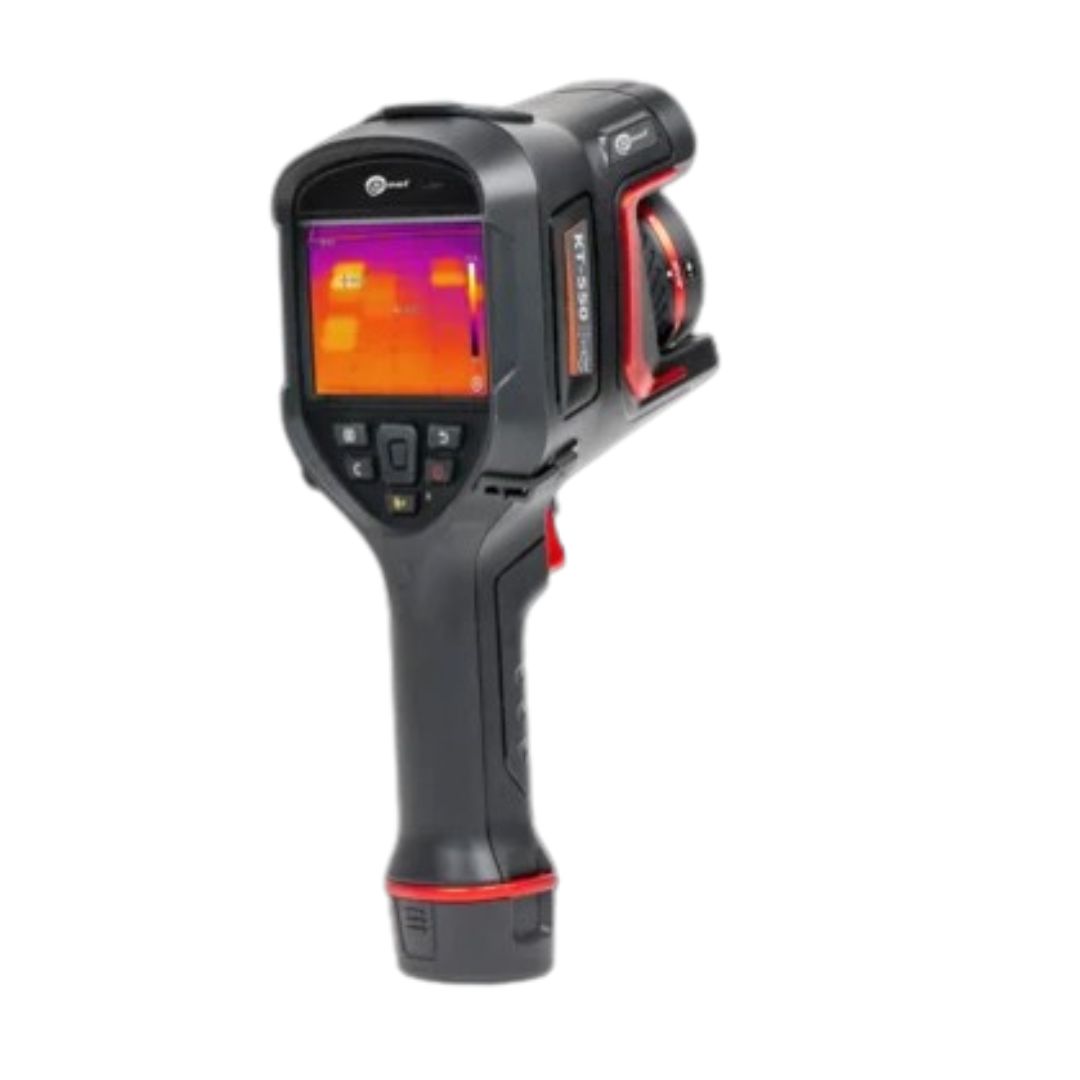

Handheld Thermal Imager | KT550

$ 94.45

Compare

Categories: Samsung Lcd/Led,

Description Handheld Thermal Imager | KT550 Specifications Parameter Description Detector resolution 640 x 480 / 12 μm Detector 7.5~14 μm VOx Frame rate 30 Hz / 9 Hz Sensitivity ≤40 mK Focus Manual / Auto Spatial resolution (IFOV) 0.68 mrad Min. focus distance 0.15 m Lens (field of vision / focal distance) 25° x 19° / 17.7 mm Display 4.3”, 800 x 480 high brightness, capacitive LCD touchscreen Image mode IR / Visual / Infrafusion MIF / PiP Digital Zoom 1…20 Temperature range ▪ Standard Range 1: -40°C… 150°C | -40°F… 302°F Range 2: 0°C… 650°C | 32°F…1202°F ▪ Optional High temperature lens: 500°C…2000°C | -932°F… 3632°F Accuracy (Ambient: 15°C …35°C, object: >0°C) ±2°C | ±4°F or ±2% of reading Image analysis mode 16 points, 16 lines, 16 areas. Temperature indication: min, max, average. Isotherm. Temperature alarm. Smart stroke. Palettes 16 Super-resolution 2x, 1280 x 960 Panoramic images √ Emissivity Selectable from 0.01 to 1.00 or from the list Measurement adjustment Auto-adjustable distance, relative humidity, ambient temperature (reflected) Image file format JPG IR image annotations Additional visual photos, voice, text recognition, text typing Reports module PDF reports Video file format MP4 (without temp. information), IRGD (including temp. information) Built-in features ▪ Visual camera resolution 13 MPix ▪ Other features LED flashlight, GPS, laser pointer, laser rangefinder (0.1…40 m), microphone, speaker, digital compass Wireless communication Wi-Fi, Bluetooth Storage Built-in memory (64 GB), SD card Interfaces SD card slot (max. 256 GB), USB Type-C, tripod Power supply Li-ion battery (4 h of continuous operation), built-in charger, AC adapter 110-230 V (50/60 Hz) Operating temperature -20°C… 50°C | 4°F…122°F Storage temperature -40°C…60°C | -40°F…140°F Housing IP54 Handheld Thermal Imager | KT550

Handheld Thermal Imager | KT550
