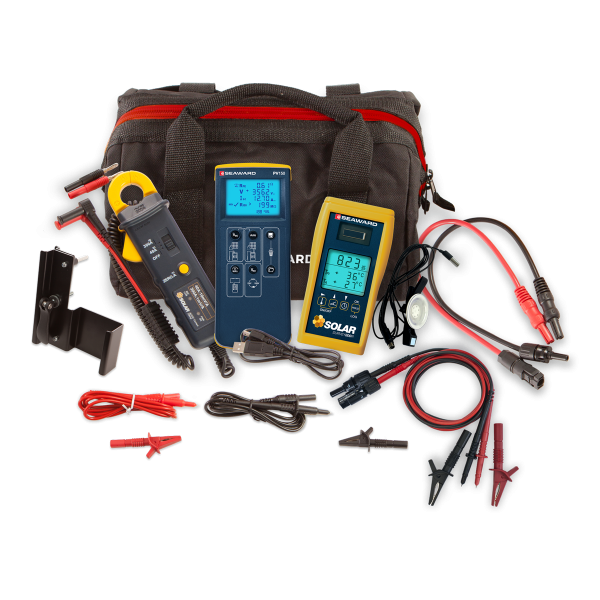

Description Solar PV Installation Tester Kit | PV150 Technical Specifications Open Circuit Voltage Measurement (PV Terminals) Display Range : 0.0VDC – 1000VDC Measuring Range : 5.0VDC – 1000VDC Resolution : 0.1VDC maximum Accuracy : ± (0.5 % 2 digits) Enunciators : DC voltage polarity correct or reversed Short Circuit Current Measurement (PV Terminals) Display Range : 0.00ADC – 15.00ADC Measuring Range : 0.50ADC – 15.00ADC Maximum Power : 10kW Resolution : 0.01ADC maximum Accuracy : ± (1% 2 digits) Earth Continuity Resistance Measurement (4mm Terminals) Test Voltage Open Circuit : >4VDC, nominal Test Current into 2 Ω : >200mA Display Range : 0.00 Ω – 199 Ω Measuring Range (EN 61557-4) : 0.05 Ω – 199 Ω Resolution : 0.01Ω maximum Accuracy : ± (2% 5 digits) Test Leads Zero : Zero up to 10 Ω, by zero button Visible Warning : ≥ 30V AC or DC at inputs Circuitry Protection : Test inhibited if ≥ 30V AC or DC at inputs Repeat tests as per IEC61557-4 : Approx 4000 1 second test Insulation Resistance (Auto Test Sequence, PV Terminals, and Red 4mm Terminal) Test Voltage Open Circuit : 250V | 500V | 1000V (as per IEC61557-2) Test Voltage Specification : -0% 20% (open circuit) Test Voltage @ 1mA : >1mA into UN x (1000Ω/V) Test Current Short Circuit : < 2mA Display Range : 0.05MΩ – 199MΩ Measuring Range (EN 61557-2) : 0.05MΩ – 199MΩ Resolution : 0.01MΩ maximum Accuracy : 0.05MΩ – 100MΩ ± (5% 5 digits) 101MΩ – 199MΩ ± (10% 5 digits) Visible Warning : ≥ 30V AC or DC at inputs Circuitry Protection : Test inhibited if ≥ 30V AC or DC at inputs Repeat tests as per IEC61557-4 : Approx 3000 1 second tests Rpe Voltage Measurement (4mm Terminals) Display Range : 30V – 440VAC/DC Voltage Measuring Range : 30V – 440VDC 30V – 440VAC 50-60Hz Resolution : 1V Accuracy : ± (5% 2 digits) Operating Current (via AC/DC Current Clamp) Display Range : 0.1A – 40.0A Current Measuring Range : 0.1A – 40.0A DC 0.1A – 40.0A AC 50-60Hz Resolution : 0.1A Accuracy : ± (5% 2 digits) DC Operating Power (via AC/DC Current Clamp and PV Terminals) Display Range : 0.00kW – 40kW Measuring Range : 0.50kW – 40kW Resolution : 0.01kW Accuracy : ± (5% 5 digits) PV150 General Specifications Instrument Dimensions and Weight Weight : 0.95kg / 2.1lb Dimensions : 26.4 x 10.7 x 5.8cm / 10.4 x 4.2 x 2.3″ Display : Custom LCD with backlight Power Source : 6 x 1.5V AA cells Battery life : >1000 test sequences Auto power down : User-programmable Onboard memory : Up to 200 complete test datasets Connectivity USB download to PC (CSV format) Wireless “Solarlink TM” to Survey 200R (range -30m/100ft) Software compatibility Compatible with SolarCert software (English language only) Solar PV Installation Tester Kit | PV150
