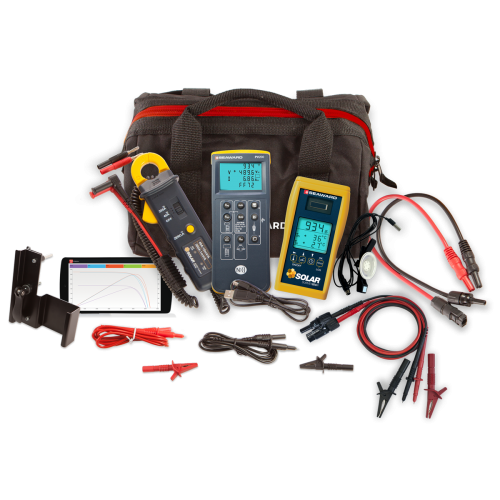

Description Compact solar PV Tester PV200 Technical Specifications Open Circuit Voltage Measurement (PV Terminals) Display Range : 0.0VDC – 1000VDC Measuring Range : 5.0VDC – 1000VDC Resolution : 0.1VDC maximum Accuracy : ± (0.5 % 2 digits) Enunciators : DC voltage polarity correct or reversed Short Circuit Current Measurement (PV Terminals) Display Range : 0.00ADC – 15.00ADC Measuring Range : 0.50ADC – 15.00ADC Maximum Power : 10kW Resolution : 0.01ADC maximum Accuracy : ± (1% 2 digits) Earth Continuity Resistance Measurement (4mm Terminals) Test Voltage Open Circuit : >4VDC, nominal Test Current into 2 Ω : >200mA Display Range : 0.00 Ω – 199 Ω Measuring Range (EN 61557-4) : 0.05 Ω – 199 Ω Resolution : 0.01Ω maximum Accuracy : ± (2% 5 digits) Test Leads Zero : Zero up to 10 Ω, by zero button Visible Warning : ≥ 30V AC or DC at inputs Circuitry Protection : Test inhibited if ≥ 30V AC or DC at inputs Repeat tests as per IEC61557-4 : Approx 4000 1 second test Insulation Resistance (Auto Test Sequence, PV Terminals, and Red 4mm Terminal) Test Voltage Open Circuit : 250V | 500V | 1000V (as per IEC61557-2) Test Voltage Specification : -0% 20% (open circuit) Test Voltage @ 1mA : >1mA into UN x (1000Ω/V) Test Current Short Circuit : < 2mA Display Range : 0.05MΩ – 200MΩ Measuring Range (EN 61557-2) : 0.05MΩ – 200MΩ Resolution : 0.01MΩ maximum Accuracy : 0.05MΩ – 100MΩ ± (5% 5 digits) 101MΩ – 199MΩ ± (10% 5 digits) Visible Warning : ≥ 30V AC or DC at inputs Circuitry Protection : Test inhibited if ≥ 30V AC or DC at inputs Repeat tests as per IEC61557-4 : Approx 4000 1 second tests Insulation Resistance (Point to Point, 4mm Terminals) Test Voltage Open Circuit : 250V | 500V | 1000V (as per IEC61557-2) Test Voltage Specification : -0% 20% (open circuit) Test Voltage @ 1mA : >1mA into UN x (1000Ω/V) Test Current Short Circuit : < 2mA Display Range : 0.05MΩ – 300MΩ Measuring Range (EN 61557-2) : 0.05MΩ – 300MΩ Resolution : 0.01MΩ maximum Accuracy : ± (5% 5 digits) Visible Warning : ≥ 30V AC or DC at inputs Circuitry Protection : Test inhibited if ≥ 30V AC or DC at inputs Repeat tests as per IEC61557-4 : Approx 4000 1 second tests Rpe Voltage Measurement (4mm Terminals) Display Range : 30V – 440VAC/DC Voltage Measuring Range : 30V – 440VDC 30V – 440VAC 50-60Hz Resolution : 1V Accuracy : ± (5% 2 digits) Operating Current (via AC/DC Current Clamp) Display Range : 0.1A – 40.0A Current Measuring Range : 0.1A – 40.0A DC 0.1A – 40.0A AC 50-60Hz Resolution : 0.1A Accuracy : ± (5% 2 digits) DC Operating Power (via AC/DC Current Clamp and PV Terminals) Display Range : 0.00kW – 40kW Measuring Range : 0.50kW – 40kW Resolution : 0.01kW Accuracy : ± (5% 5 digits) PV200 General Specifications Instrument Dimensions and Weight Weight : 1.04kg / 2.3lb Dimensions : 26.4 x 10.7 x 5.8cm / 10.4 x 4.2 x 2.3″ Display : Custom LCD with backlight Power Source : 6 x 1.5V AA cells Battery life : >1000 test sequences Auto power down : User-programmable Onboard memory : Up to 999 complete test datasets Connectivity USB download to PC (CSV format) Wireless “Solarlink TM” to Survey 200R (range -30m/100ft) NFC transfer of data to PVMobile Android App iOS device not supported App compatibility Compatible with Android version 4.2 Jelly Bean iOS devices not supported Software compatibility Compatible with SolarCert software (English language only) Compact Solar PV Tester with I-V curve tracing | PV200
