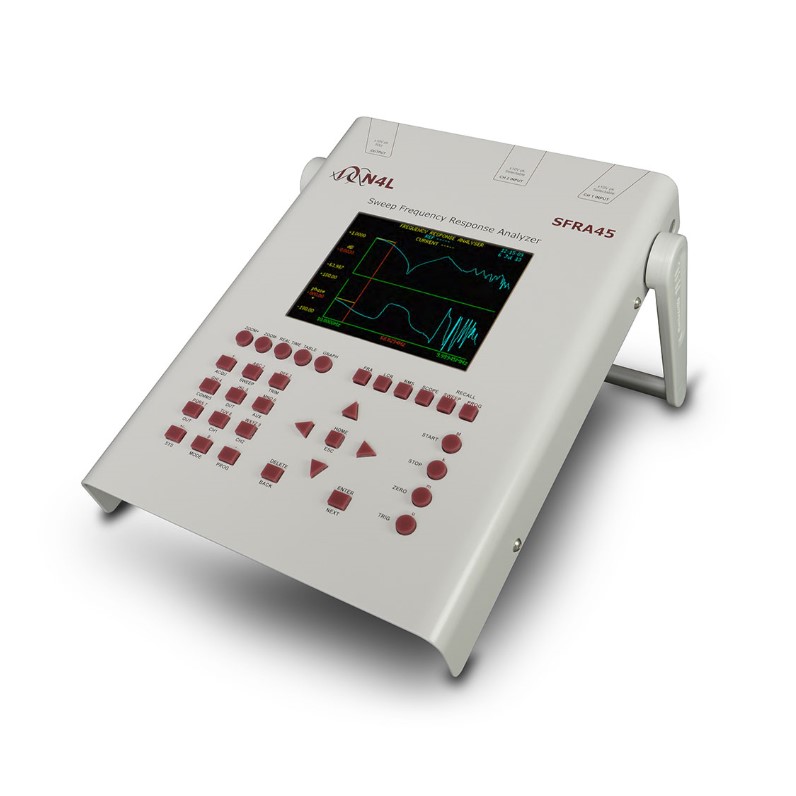

Description SFRA Sweep Frequency Response Analyzer | SFRA45 MEASUREMENT SPECIFICATION Frequency Response Analyser Measurement Magnitude, Gain (CH1/CH2, CH2/CH1),Gain (dB), Offset Gain (dB), Phase (º) Frequency Range 5Hz – 45MHz Gain Accuracy in dB 0.02dB < 50kHz 0.02dB 0.05dB / MHz < 5MHz 0.1dB 0.04dB / MHz < 45MHz Phase Accuracy 0.05º < 10kHz 0.07º 0.0009º / kHz < 5MHz 5.05º 0.0001º / kHz < 45MHz Frequency Source Generator Measurement Real Time DFT, no missing data Speed Up to 100 readings per second Filter Selectable from 0.2 seconds Resolution 5 or 6 digits Input Impedance 50 Ohm or 1M Ohm High Impedance (Selectable) Dynamic Range 120dB L C R Meter Functions L,C,R (AC), Q, Tan Delta, Impedance, Phase – Series or Parallel Circuit Frequency Range 5Hz to 5MHz Current Shunt 50R Internal or External Ranges Inductance Capacitance Resistance Basic Accuracy 0.5% 2%/MHz Sweep Capability All AC functions Impedance Range 100m Ohm to 100K ohm True RMS Voltmeter Channels 2 (Ground Referenced) Frequency Range 5Hz to 5MHz Measurement AC, RMS, PEAK, CF, SURGE, dBm Basic Accuracy (AC) 0.05% range 0.05% reading 0.1mV < 1kHz 0.15% range 0.15% reading 0.1mV < 10kHz 0.5% range 0.5% reading 0.025%/kHz 0.4mV < 5MHz Signal Generator Type Direct Digital Synthesis , Single Frequency or Sweep Frequency 5Hz to 45MHz Waveforms Sine, Square, Triangle, Ramp, White Noise Accuracy Frequency 5ppm over all temperature range Amplitude ±5% < 10MHzAmplitude ±10% < 45MHz Impedance 50 Ohm ± 2% Scaling 1 x 10^-9 to 1 x 10^9 Output Level 50mVpk to 10Vpk INPUT RANGES Inputs 2 x 10Vpk Connectors Ground referenced BNC Coupling AC Max Input 10Vpk from Earth Input Ranges Peak ranging 1mV, 3mV, 10mV, 30mV, 100mV, 300mV, 1V, 3V, 10V Scaling 1 x 10^-9 to 1 x 10^9 Ranging Full auto, Up only or Manual Input Impedance 50 Ohm or 1M Ohm High Impedance Selectable ACCESSORIES AND PORTS Instrument Accessories Leads 3 x BNC to BNC (Output, CH1, CH2), RS232, Power Software CommView, SFRAComm Documentation Calibration Certificate, User Manual Newtons4th SFRA Transformer Connection System Bushing Clamps 2 x Bushing Connection Clamps BNC Cable Reel N4L 18m Cable reel (Signal, CH1, CH2) Earth Braid 2 x 5 meter Earthing Braid Earth Clamps 2 Spare Earth Braid 2 x 500mm USB Memory Stick 2 GB SYSTEM SPECIFICATIONS Sweep Functions FRA, Impedance Steps Up to 2000 Steps Window From 50ms with no gap between each log Memory 1 GB Internal or External USB General Display 5.7″ 1/4VGA Colour high brightness backlit Dimensions (Instrument) 305H x 230W x 45D mm “Tablet Style” Weight (Instrument) 2.7Kg Dimensions (Carry Case) 760mm x 420mm x 150mm Weight (Full system including case) 14.9Kg Program Stores 100, Location 1 loaded upon power up Sweep Stores 2000, all parameters in any sweep function Remote Operation Full Capability, Control and Data Operating Temperature -5 to 50ºC Storage Temperature -10 to 60ºC Relative Humidity Range 20 to 90% Non-Condensing IP Protection of Inputs and Outputs IP30 – CEI EN 60529 Max Altitude 2,000 Meters Power Supply 9-18V @ 3A, AC adapter or 12V dc from car or external batteries Warranty 3 Years SFRA Sweep Frequency Response Analyzer | SFRA45
