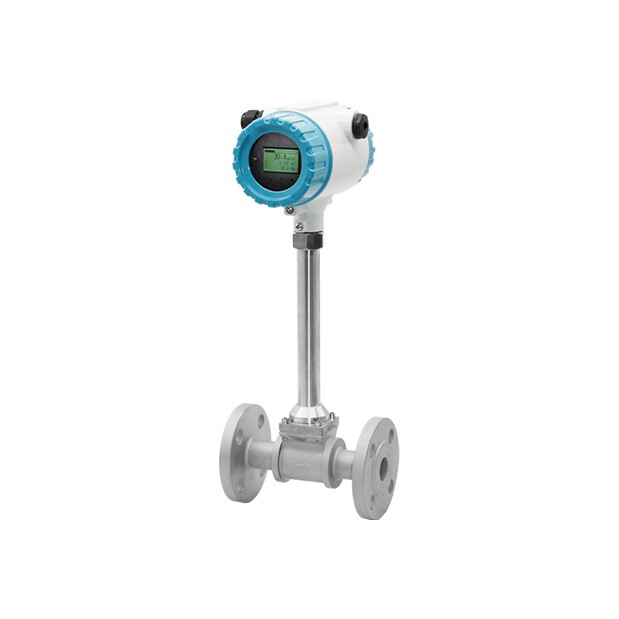

Standard Vortex Flow Meter | QT LUGB

$ 98.78

Compare

Categories: Samsung Lcd/Led,

Description Standard Vortex Flow Meter | QT LUGB Table 1: Vortex Flow Meter Technical Data Measured Medium Liquid, Gas, Steam Medium Temp -40℃~ 200℃; -40℃~ 280℃; 40℃~ 350℃ Nominal Pressure 1.6MPa;2.5MPa;4.0MPa (Other pressure can be custom, need consult supplier) Accuracy 1.0% (Flange), 1.5% (Insertion) Measuring range ratio 1:10 (Standard air condition as reference) 1:15 (Liquid) Flow Range Liquid:0.4-7.0m/s; Gas:4.0-60.0m/s; Steam:5.0-70.0m/s Specifications DN15-DN300 (Flange), DN80-DN2000 (Insertion), DN15-DN100 (Thread), DN15-DN300 (Wafer), DN15-DN100 (Sanitary) Material SS304 (Standard), SS316 (Optional) Pressure Loss Coefficient Cd≤2.6 Vibration Acceleration Allowed ≤0.2g IEP ATEX II 1G Ex ia IIC T5 Ga Ambient Condition Ambient Temp:-40℃-65℃ (Non-explosion-proof site); -20℃-55℃ (Explosion-proof site) Relative Humidity:≤85% Pressure:86kPa-106kPa Power Supply 12-24V/DC or 3.6V battery powered Signal Output Pulse frequency signal 2-3000Hz, Low level≤1V, high level≥6V Two-wire system 4-20 signal (isolated output), Load≤500 Table 2: Caliber(mm) Inner Diameter d (mm) Length L (mm) Height H (mm) Flange Outer Diameter D2(mm) Central Dia of Bolts Hole D1(mm) Bolt Hole Diameter D3(mm) Screw Quantity n 15 15 170 440 95 70 15 4 20 20 170 443 100 75 15 4 25 26 170 455 125 90 19 4 32 32 170 460 135 100 19 4 40 38 190 460 140 105 19 4 50 48 190 466 155 120 19 4 65 62 220 482 175 140 19 4 80 73 220 492 185 150 19 8 100 95 240 528 210 175 19 8 125 118 260 561 250 210 23 8 150 140 280 605 280 240 23 8 200 200 300 636 330 290 23 12 250 250 360 702 400 355 25 12 300 300 400 745 445 400 25 16 Table 3: Vortex Flow Meter Flow Range Size(mm) Liquid(Reference medium:normal temperature water, m³/h) Gas(Reference medium:20℃, 101325pa condition air, m³/h) Standard Extended Standard Extended 15 0.8~6 0.5~8 6~40 5~50 20 1~8 0.5~12 8~50 6~60 25 1.5~12 0.8~16 10~80 8~120 40 2.5~30 2~40 25~200 20~300 50 3~50 2.5~60 30~300 25~500 65 5~80 4~100 50~500 40~800 80 8~120 6~160 80~800 60~1200 100 12~200 8~250 120~1200 100~2000 125 20~300 12~400 160~1600 150~3000 150 30~400 18~600 250~2500 200~4000 200 50~800 30~1200 400~4000 350~8000 250 80~1200 40~1600 600~6000 500~12000 300 100~1600 60~2500 1000~10000 600~16000 400 200~3000 120~5000 1600~16000 1000~25000 500 300~5000 200~8000 2500~25000 1600~40000 600 500~8000 300~10000 4000~40000 2500~60000 Table 4: Vortex Flow Meter Model Selection LUGB XXX X X X X X X X X X Calibre (mm) DN15-DN300 Reference Code, please check calibre code table 10 Nominal Pressure 1.6Mpa 1 2.5Mpa 2 4.0Mpa 3 Others 4 Connection Flange 1 Wafer 2 Tri-clamp(Sanitary) 3 Thread 4 Insertion 5 Others 6 Medium Liquid 1 Common Gas 2 Saturated Steam 3 Superheated Steam 4 Others 5 Special Mark Normal N Standard Signal Output M Intrinsically safe Explosion-proof B On-Site Display X High Temperature (350℃) G Temperature Compensation W Pressure Compensation Y Temperature&Pressure Compensation Z Structure Type Compact/Integral 1 Remote 2 Power Supply DC24V D 3.6V Lithium Battery E Others G Output Signal 4-20mA A Pulse B 4-20mA,HART C 4-20mA/Pulse,RS485 D 4-20mA/Pulse, HART E Others F Flange Standard DIN PN16 1 DIN PN25 2 DIN PN40 3 ANSI 150# A ANSI 300# B ANSI 600# C JIS 10K D JIS 20K E JIS 40K F Others G Standard Vortex Flow Meter | QT LUGB

Standard Vortex Flow Meter | QT LUGB
