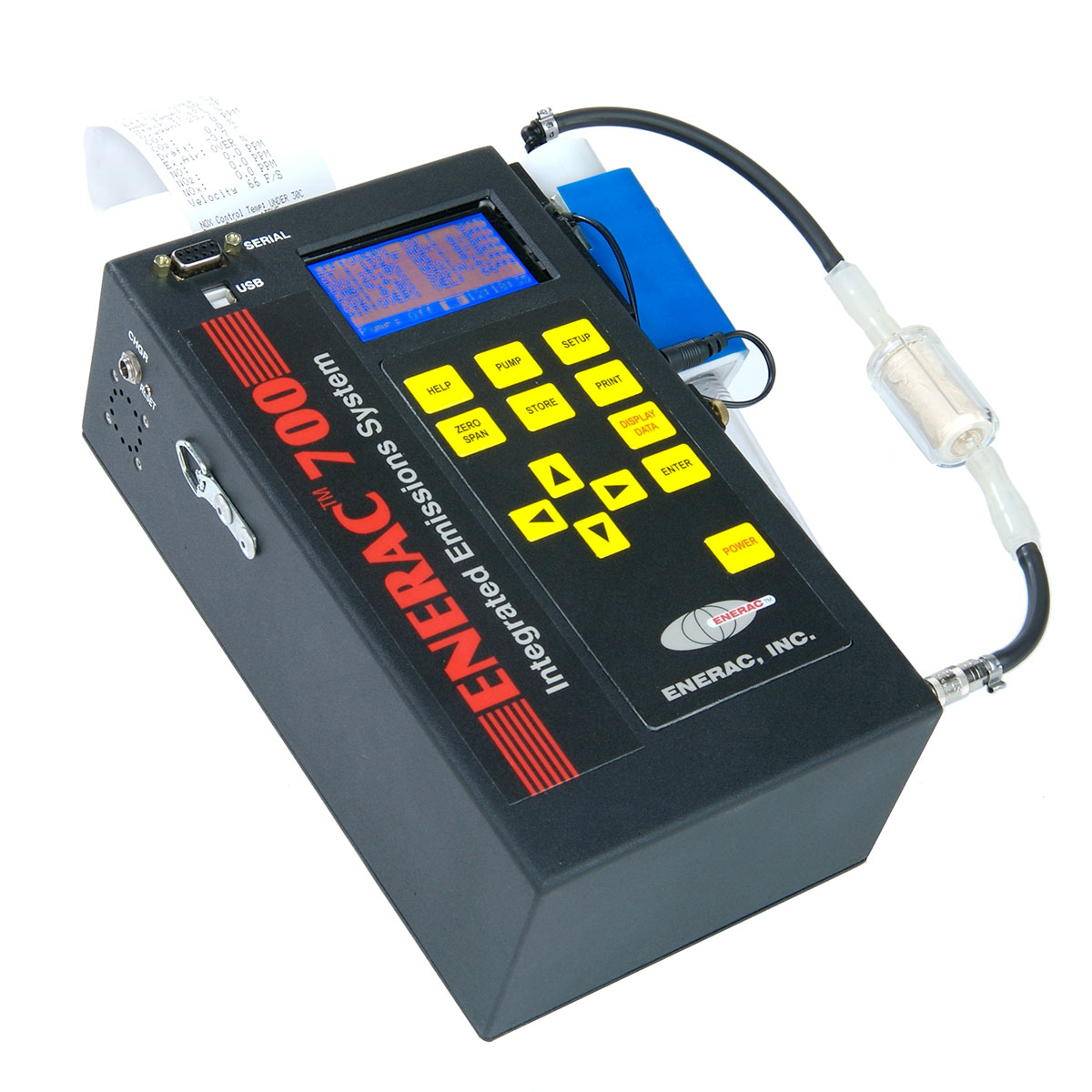

Description Enerac 700 Gas Combustion Analyser General Specifications DIMENSIONS in cm : 14.8W x 24.8 H x 8.26D WEIGHT: 2.8kg POWER: 4 D size NiMH rechargeable And 120/240 VAC Adapter DISPLAY: 4×8 Line 128 x 64 pixel Dual Display MEMORY: 500 Internal Storage Buffers PRINTER: 2? Graphic Thermal Printer COMMUNICATIONS: Serial (RS 232) and USB ports, up to 115k Baud; Bluetooth MODEL 700 SPECIFICATIONS MEASURED PARAMETER RANGE RESOLUTION ACCURACY SENSOR TYPE Ambient Temperature 0-150 °F 1 degree F or C /- 2 ° F M Type RTD Stack Temperature (net) 0-2,000 °F (1,100 °C) 1 degree F or C /- 2 ° F M Type K thermocouple Oxygen (O 2 ) 0-25% 0.1 % /- 0.2% M Electrochemical Carbon Monoxide (CO) 0-1,500/4,500 ppm 1 ppm /- 1-2%M (< /- 1%**) Dual Range SEM Nitric Oxide (NO) 0-500/1,500 ppm 0.1 ppm /- 1-2%M (< /- 1%**) Dual Range SEM Nitrogen Dioxide (NO2 ) 0-500/1,500 ppm 0.1 ppm /- 1-2%M (< /- 1%**) Dual Range SEM Sulfur Dioxide (SO2 ) 0-1,500/4,500 ppm 1 ppm /- 1-2%M Dual Range SEM Combustibles 0-5% 0.1% /- 2% (CH4) M Catalytic Sensor Stack Draft 10″ to – 40″ WC 0.1 ” WC /- 2 % M Silicone Diaphragm Stack Velocity / Flow 0-200 ft/sec (0-6,500 cfm) 1 ft/sec Meets EPA Method 2 Type S pitot tube Hydrocarbons C xH y 0-30,000 ppm 1 ppm /-3% M (meets EPA method 25B) NDIR Carbon Monoxide (CO) 0-15% 0.01% /-3% M NDIR Carbon Dioxide (CO2 ) 0-20% 0.01% /-3% M NDIR CALCULATED PARAMETERS RANGE RESOLUTION ACCURACY Combustion Efficiency 0-100% 0.1% /- 1% calculated Carbon Dioxide 0-40% 0.1% /- 2% calculated Excess Air 0-1000% 1% /- .2% calculated NOx (NO NO2) 0-1,000 or 0-3,000 ppm 0.1 ppm /- 4% (< /- 2%**) Emissions Conversion Units (CO, NO, NO2, SO2) calculated milligrams / cubic meter 0-2,500 mg/m3 2 mg/m3 /- 2% M (< /- 1%**) pounds / million btu 0-99.99 #/mbtu 0.01 #/mbtu /- 2% grams / brake-hp-hr 0-99.99 g/bhp-hr 0.01 g/bhp-hr /- 2% Oxygen Correction factor for emissions adjustable 0-20% in 1% steps pls *Accuracy(M: Measured): When Calibrated prior to use per Enerac specifications ** Based on CTM-030 data collected from 3rd Party testing using 0-50ppm SEM sensors SEM Dual Range sensors (sophisticated electrochemical sensors) all come in different ranges and can be engineered to address different ranges and their respective application(s). The sensors listed are standard ranges. Currently, Enerac also offers Low Dual Range SEM Sensors (0-50/150 ppm) available for CO, NO, NO2. Higher/Lower Range SEM sensors can be engineered to your application range. Typically a Dual Range SEM Sensor is set at a 1:3 ratio (i.e. 0-50/150 ppm). Just let us know what range is required for your application. H2S SEM Sensors Can be substituted for a CO, NO, NO2 or the SO2 sensor slot. The H2S Dual Range SEM Sensor range is 0-200/600ppm. Enerac 700 Gas Combustion Analyser
