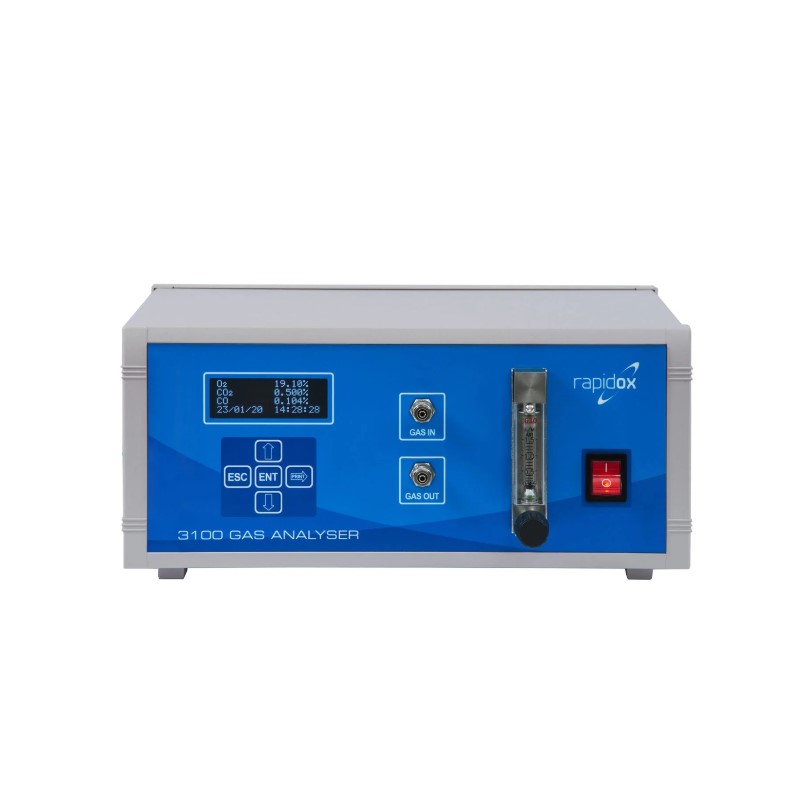

Multigas Analyser – Overview The Rapidox 3100 range includes precision single, dual and triple gas analysis instruments providing powerful functionality and extensive features. Measurable gases include oxygen (O2), carbon dioxide (CO2), carbon monoxide (CO), hydrogen (H2), moisture (H2O), ethylene (C2H2), chlorine (Cl2), methane (CH2), nitrous oxide (N2O), nitric oxide (NO), ammonia (NH2), sulfur dioxide (SO2) and ozone (O2). Typical gas analysis configurations include a combination of oxygen and another gas. However, other compatible gas sensor arrangements can be specified. Features on all models include four programmable alarm circuits (volt-free contacts), programmable analogue outputs (0-10V and 4-20mA) for each sensor, easy calibration (user selectable gases), RS232 / RS485 / ModBus-RTU communications and complete data logging software. Standard A type K thermocouple input and sensor are included for independent temperature measurements up to 1250°C, with readings displayed and logged along with the gas analysis. The Rapidox 3100 complies with EMC Directive 2004 / 108 / EC. UL/ETL Certification Number: UL-61010-1. The flow of test gas can be adjusted with the flow gauge/needle valve on the front panel. Applications include processing, research and development. It has proven popular with universities and research institutions worldwide. Optional long-life pump to draw a gas sample at a flow rate set by the user between 0-1 litres per minute. Or the unit can be operated under flowing gas conditions. Multigas Analyser – Features Bench version or 19″ rack-mounted version Fast and accurate response Easy user calibration procedure Low maintenance and long life sensor expectancy Four fully programmable alarm settings Digital outputs and fully programmable analogue outputs Software includes control of analyser, live graphing & Excel compatible data-logging Operates on any worldwide mains voltage (90-260VAC) Type K thermocouple input allows for independent temperature measurements Password protection feature Complies with EMC Directive 2004 / 108 / EC. UL/ETL Certification Number: UL-61010-1
