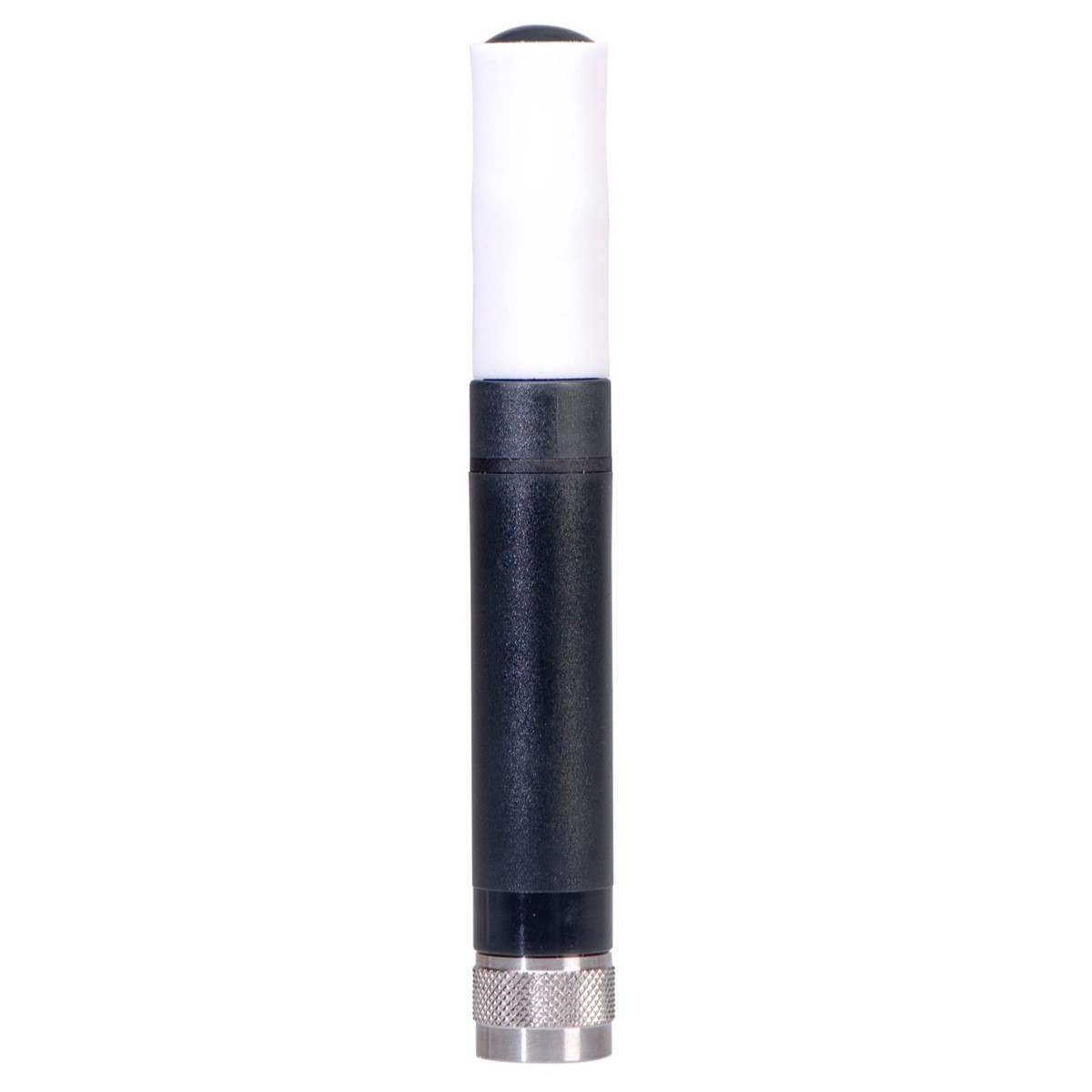

Description Accurate Humidity Sensor Probe | HC2A-S PROBE TYPE Standard probe OPERATING RANGE -50 to 100 °C / 0 to 100 %rh ACCURACY W. ADJUSTMENT PROFILE “STANDARD” ±0.8 %RH / ±0.1 K, at 10…30 °C Adjustment at 23 °C and 10, 35, 80 %RH ACCURACY W. ADJUSTMENT PROFILE “HIGH PRECISION” ±0.5 %RH / ±0.1 K, at 10…30 °C at 23 °C and 10, 20, 30, 40, 50, 60, 70, 80, 90 %RH POWER SUPPLY / POWER CONSUMPTION 3.3 – 5 VDC CURRENT CONSUMPTION 4.5 mA at 3.3 VDC LONG-TERM STABILITY <1 %rh / year HUMIDITY SENSOR Hygromer HT-1 TEMPERATURE SENSOR PT100 1/3 DIN Class B PROBE PROTECTION Polycarbonate plastic cage, black FILTER CARTRIDGE Polyethylene FILTER TYPE Polyethylene, 40 ?m RESPONSE TIME T 63 <15 sec. ALLOWED WIND SPEED 20 m/s, with filter PSYCHROMETRIC CALCULATIONS Dew or frost point REPRODUCIBILITY AIRCHIP <0.02 %rh / 0.01 K EXPLOITATION SOFTWARE ROTRONIC HW4 PROBE ADJUSTMENT BY SOFTWARE 1 Point & multipoint %rh & °C FIRMWARE UPDATE With internet and HW4 software USER INFORMATION from Software HW4 (device manager) DATA PROCESSING VIA HW4 with interface cables DEVICE PROTECTION BY PASSWORD Yes TYPE OF OUTPUT SIGNALS 2 x 0?1 VDC ANALOGUE OUTPUTS SCALEABLE BY THE USER Yes ANALOG OUTPUT SIGNAL (STANDARD) 0?1 V = 0?100 %rh; 0?1 V = -40?60 °C DIGITAL OUTPUT SIGNAL (STANDARD) UART SERVICE INTERFACE UART REVERSE VOLTAGE PROTECTION Mechanically in the connector MAX. CABLE LENGTH Up to 5 m with passive cable. Up to 100 m with active cable. PROBE MATERIAL PEEK ENCLOSURE MATERIAL Polycarbonate HOUSING Polycarbonate FDA/GAMP COMPATIBILITY FDA 21 CFR Part 11 and GAMP compatible DIMENSIONS Ø15 x 108 mm WEIGHT 17 g Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost. Accurate Humidity Sensor Probe | HC2A-S
