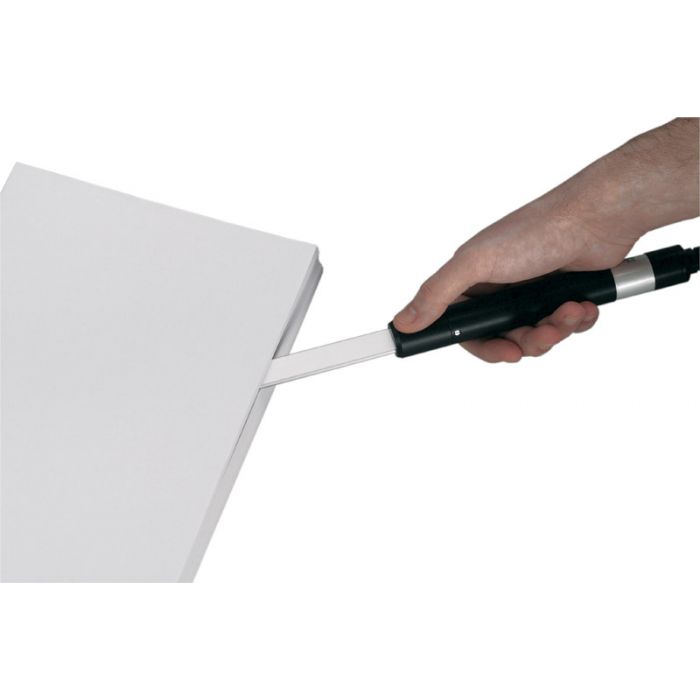

Description Sword Hand-held Paper Humidity Probe | HC2-HS28 Probe type Sword probe Humidity sensor Hygromer IN-1 Temperature sensor PT100 1/3 DIN Class B Long-term stability <1 %rh / year Accuracy w. adjustment profile “standard” at 23 °C / 10, 35, 80 %rh ± 0.8 %rh / ± 0.1 K Accuracy at 23 ±5 °C ±0.8 %rh / ±0.1 K Reproducibility Airchip <0.02 %rh / 0.01 K Response time t 63 <15 sec. Power consumption 3.2…5 VDC, Calibrated @ 3.3 VDC / ~4.5 mA Operating range -40…85 °C / 0…100 %rh Allowed wind speed 3 m/s Exploitation software ROTRONIC HW4 Psychrometric calculations Dew or frost point Analogue outputs scaleable by the user Yes Software Update With internet and HW4 software User information from Software HW4 (devicemanager) Data processing via HW4 with interface cables Type of output signals 2 x 0…1 VDC Digital output signal (standard) UART Service Interface UART FDA/GAMP compatibility FDA 21 CFR Part 11 and GAMP compatible Probe adjustment by software 1 Point & multipoint %rh & °C Device Protection by password Yes Analogue output signal (standard) 0…1 V = 0…100 %rh; 0…1 V = -40…60 °C Reverse voltage protection Mechanically in the connector Probe material Aluminium Probe protection Slots in sword blade Probe cable material TPU Enclosure material Handle: POM, black / probe: Aluminum Weight 220 g / 240 g Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost. Sword Hand-held Paper Humidity Probe | HC2-HS28
