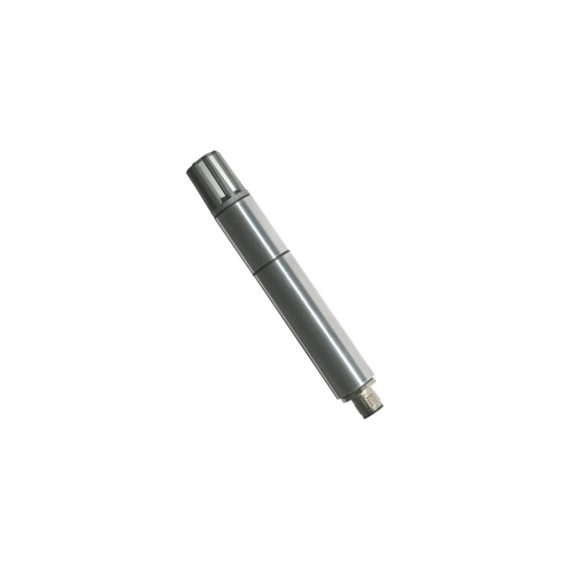

Description Weather Humidity, Temperature and Pressure Sensor | THP[pro] Id-No. 00.08095.100000 00.08095.100030 Modbus RS485 Measuring range air temperature -40… 70 °C Measuring range relative humidity 0…100 % r.h. Measuring range barometric 500…1100 hPa Accuracy air temperature ± 0.1 K (0…60 °C) ± 0.2 K (-40…0 °C) Accuracy relative humidity typ. ± 1.5 % (0…80 %) r. h. ± 2 % (> 80 %) r. h Reaction time rel. humidity (at v = 1.5 m/s): 30 s Accuracy barometric pressure: ± 2 hPa (-30… 70 °C), ± 1 hPa (-10… 60 °C) • ± 0.5 hPa at 25 °C Resolution air temperature 0.1 °C Resolution relative humidity 0.1 % r.F. Resolution barometric pressure: 0.1 hPa Protocols NMEA 0183 | WIMHU | WIMTA | WIMMB | Modbus RTU. Interface 00.08095.100000 Serial RS 422/ Talker | Baudrate 4800 | 1 Hz | 8 N 1 | Modbus RTU | SDI-12 * 00.08095.100030 Serial RS 485 Modbus RTU Supply voltage 4.8…33 V DC Power consumption 4 mA at 24 VDC | 6 mA at 12 VDC | 11 mA at 4.8 VDC | without terminating resistor Dimensions H 140 mm x Ø 20 mm Housing Aluminium specially-coated | M12 plug connector (4-pole) Protection class IP 65 (housing) Weight approx. 80 g Options (order separately) * Service: 97.08095.000010 · Pre-configuration of the standard THP[pro] to SDI-12 Accessories (order separately) 00.08141.600000 Sensor shelter with natural ventilation 00.08141.600004 Sensor shelter with artificial ventilation 32.14567.060010 sensor cable, 15 m, 4 pole, M12 plug 32.14567.060000 sensor cable, 12 m, 4 pole, M12 plug Weather Humidity, Temperature and Pressure Sensor | THP[pro]
