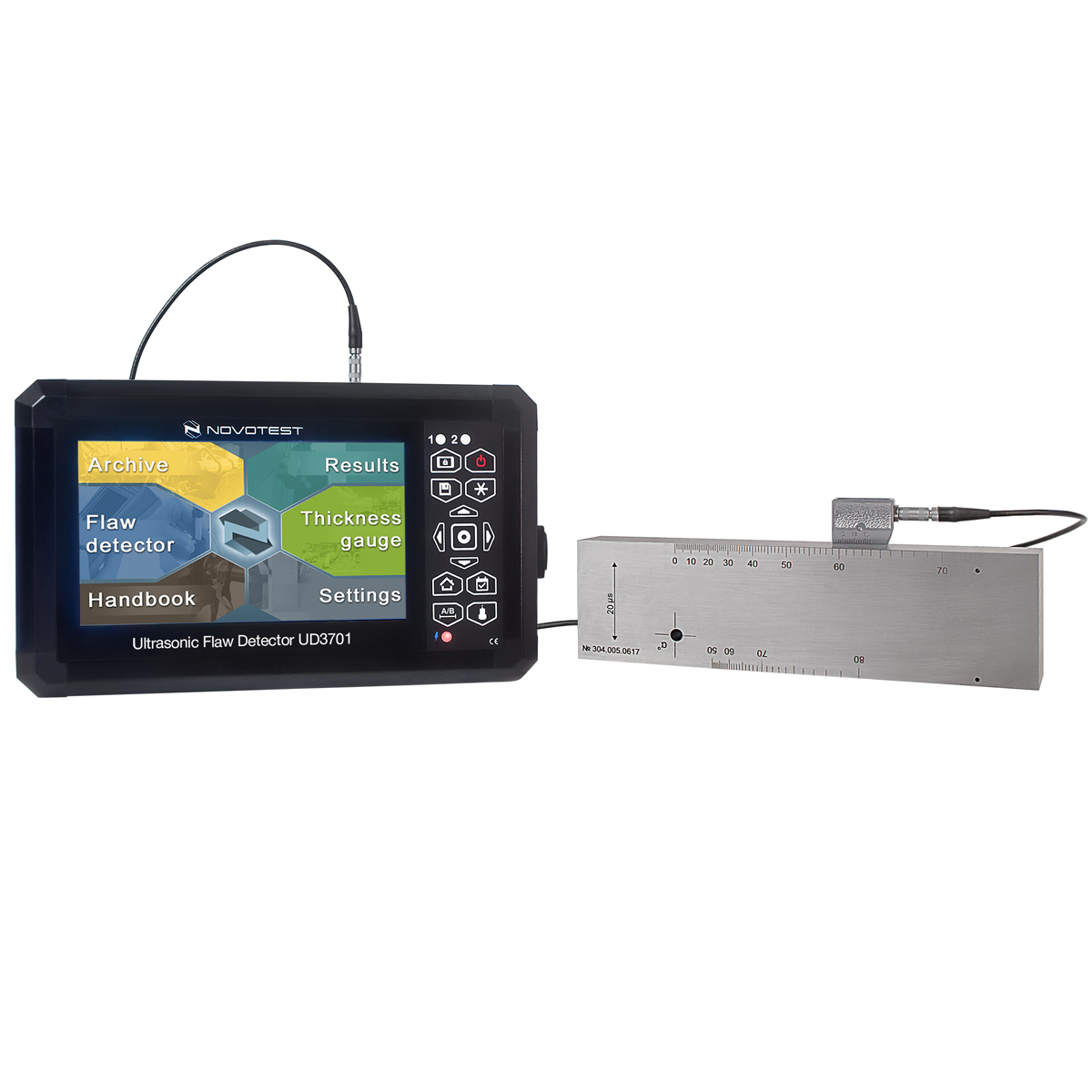

Ultrasonic Flaw Detector – Overview The Ultrasonic Flaw Detector is designed to detect internal defects, such as discontinuities and heterogeneities of materials in products and welds. It can determine the location of defects and measure the thickness, velocity of propagation and attenuation of ultrasonic waves in the materials including metals, plastics, glass etc. This enables you to search for corrosion, cracks, internal delamination and other defects. There are two predefined colour schemes: dark and light. This option allows the operator to choose a view for a dark room or in bright sunlight. Using two independent gates, the operator can set the limits for amplitude or distance (time) of the signals on the scan, which will indicate the presence of defects through sound and light indications. This allows the operator to scan the object without continuous monitoring of the display, which subsequently reduces the complexity of testing. The device is ideally suited for performing ultrasound diagnostics in laboratory and workshop conditions, and it can also be used in the field. We recommend a special cover that protects the device from dirt and moisture for use in the field. This also allows the operator to completely free his hands and easily test various products directly at the facility. Using special software, the device allows a user to transfer data to a PC. The device can save records and settings of tested objects and used probes. Ultrasonic Flaw Detector – Features Archive measurements, settings, probes Transfer data to a PC Frequency range from 0 – 10 MHz, with smooth adjustment Operating mode of DAC and TVG curves (up to 16 points) Super-bright touch display Display of scale of scanning in microseconds and millimetres Simulation of measurement from a stored record in the device memory Automatic calculation of the delay in the probe DGS control mode, with automatic calculation of the equivalent reflector zone
