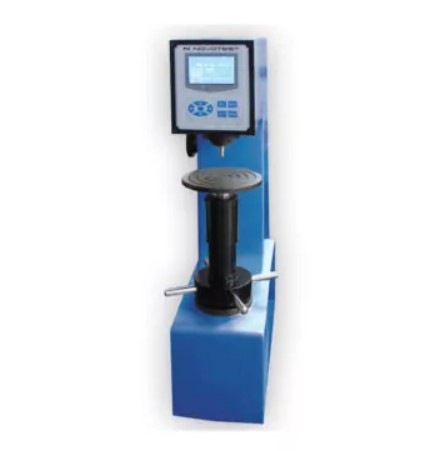

Description Benchtop Rockwell Hardness Tester | TS-R-C Indenter Conical Rockwell diamond indenter (120 °): diamond tip as a cone with 120 degrees of the cone apex angle and the bead size of 1/16 inch (1.5875 mm) Scales 20-88 HRA 20-100 HRB 20-70 HRC 40-77 HRD 70-100 HRE 30-94 HRG 80-100 HRH 40-100 HRK Hardness resolution value 0.1 Measurement accuracy <1.0% Conversion scales Plastic Rockwell, Brinell, Vickers Initial testing load(accuracy ±2%) 98,07N (10kg) Testing load (accuracy ±1%) 588,4N (60kg) 980,7N (100kg) 1471N (150kg) Measuring time 5~60 sec Testing materials Cemented carbides, thin steel and shallow case hardened steel Steel, hard cast irons, pearltic malleable iron, titanium, deep case hardened steel & other material harder than HRB 100 Thin steel and medium case hardened steel and pearlitic malleable iron Hardened and surface hardened steel, hardened and tempered steel; cold and hard casted parts, forged parts; hard alloy steel; aluminium alloys; bearing steel; carbonised steel sheets and others Max height of test sample 100 mm (210 mm – without protective cover) (can be produced up to 400 mm) Max depth of test sample 165 mm Power supply 220V±5%, 50~60Hz Data output LCD Built-in printer RS-232 interface Recommended operating conditions Air temperature: 0… 40 °С Air pressure: 94 – 106.7 kPa Humidity: up to 65% Net weight 86 kg Gross weight 96 kg Package dimensions 630*500*860 mm (L*W*H) Benchtop Rockwell Hardness Tester | TS-R-C
