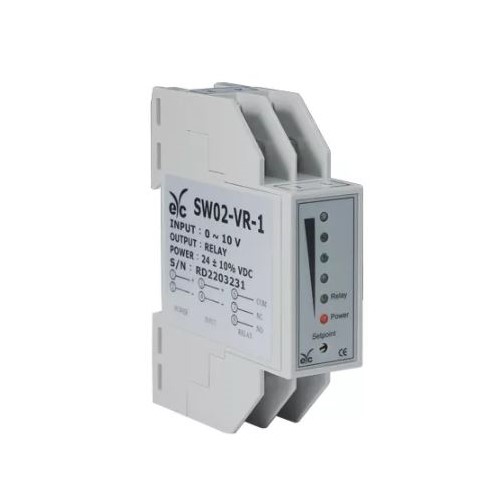

Description Signal Monitor | SW02 Specifications Input / Output Input 4 … 20 mA / 0 … 10 V Output Relay SPDT Load resistance Current output：< 10 Ω Voltage output：≧1 MΩ Indicator Red : Power Yellow : Action Green : Signal range Relays Relay capacity Max current：2 A Max voltage：AC 240 V / DC 120 V Max power：125 VA / 60 W Environment Operating temperature 10 … 60°C Operating humidity 0 … 95%RH (Non-condensing) Storage temperature -20 … 70°C Electrical Power supply DC 24 V±10% Electrical connection Screw terminals Installation Installation DIN-rail Protection IP rating IP30 Electrical protection Reverse polarity, Short circuit Certification Certification CE Material Housing ABS Weight 68 g Signal Monitor | SW02
