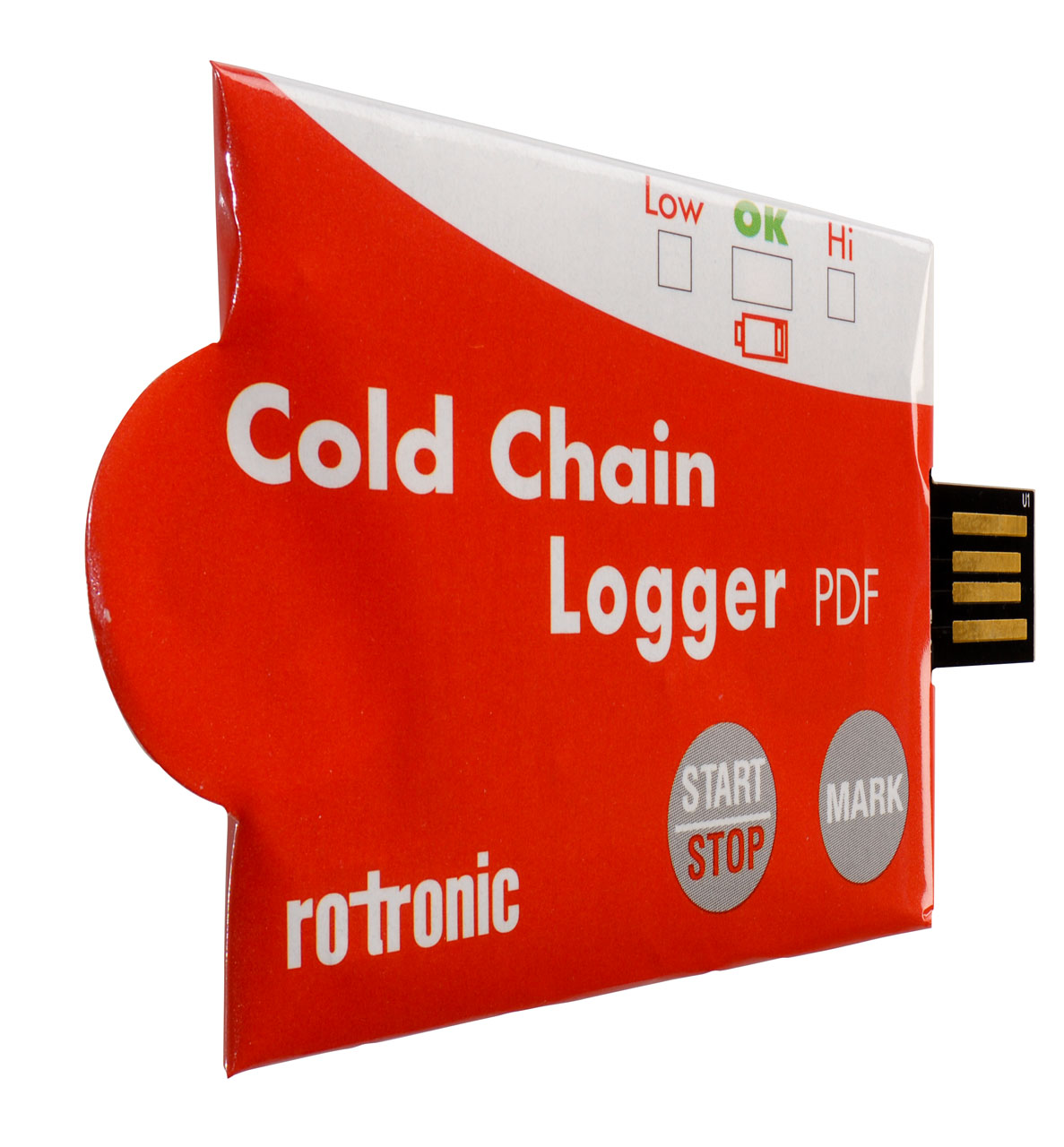

Description Cold Chain Temperature Logger | TL-CC1 (Box of 10) TYPE OF LOGGER Single use PARAMETERS Temperature RANGE OF APPLICATION -30…70 °C / -22…158 °F / < 80 %RH ACCURACY ±0.5 °C (-30…70 °C) RESOLUTION 0.1 °C BATTERY CR2032 (not replaceable) LOGGING INTERVAL 0.5/5/10/30/60/90/120 min START DELAY 0.5/5/10/30/60/90/120 min ALARM RANGES -20…-10 °C, -10…0 °C, 2…8 °C, 0…15 °C, 0…25 °C, 15…25 °, freely selectable values ALARM TYPE Deactivated, single or cumulative STORAGE PERIOD 12 months STORAGE CAPACITY 8192 data points MARK FUNCTION Marking of up to 8 points during transport OPERATION START/STOP button, MARK button LED INDICATORS LED “Low” flashes red when value below alarm point LED “Hi” flashes red when value above alarm point LED “OK” flashes green during data logging LED “Battery” flashes red when low battery OPERATING SYSTEM Windows COMMUNICATION INTERFACES USB IP PROTECTION RATING IP65 (when placed in plastic bag) CONFORMITY GxP, EN 12830, FDA 21 CFR Part 11 and GAMP5 DIMENSIONS Without bag: 80(L) x 43(W) x 2.5(D) mm with bag: 105(L) x 55(W) x 2.5(D) mm WEIGHT ≈ 10g Cold Chain Temperature Logger | TL-CC1 (Box of 10)
