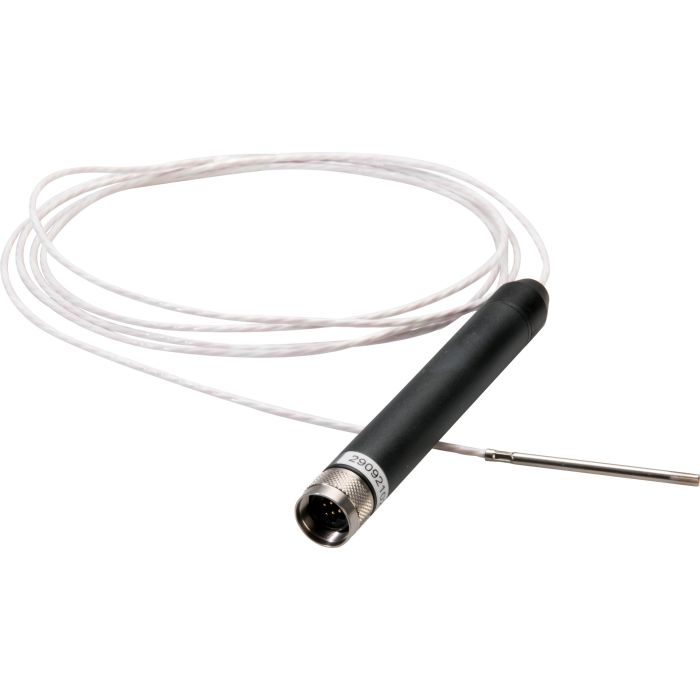

Description Digital Temperature Probe | RMS-TCD-S-001 Temperature sensor 4 wire PT100 1/3 DIN (DIN EN 60751 Long-term stability ±0.5 °C/year Measuring range -200…200°C* (*see data sheet / siehe Datenblatt / voir fiche technique / vedere scheda tecnica) Relative humidity range 0…100 %rh Digital output signal (standard) UART Storage Conditions -40…85 °C IP protection rating Housing: IP65 Sensor : IP68 Connector Standard Rotronic 7-pin connector Length 110 mm Communication interfaces MODBUS RTU Probe material Stainless steel – austenitic – 1.4571 (316Ti) bar Probe cable material Perfluoroalkoxy alkanes (PFA) Enclosure material Polycarbonate Probe lengths 50 mm Housing Yes Current consumption -3.8 mA Power supply 3.3…5 VDC Adjustment Option 1: 2 point user adjustment possible Option 2: A, B and C coefficients Evaluation software / Compatibility RMS Config; Rotronic Monitoring System T63 90 s Battery lifetime RMS-LOG-868/915/L: @60 s 240 d RMS-LOG-L-D: @60s 18 d Cable lengths 2 metres Accuracy ±0.25 °C at -50…85 °C Diameter 15 mm Cable diameter 2.2 mm Probe diameter 3 mm Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost. Digital Temperature Probe | RMS-TCD-S-001
