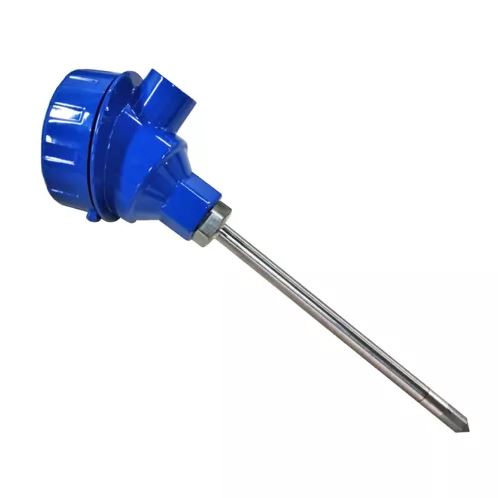

Temperature and Humidity Transmitter EX-Series | THM14EX

$ 99.40

Categories: Samsung Lcd/Led,

Description Temperature and Humidity Transmitter EX-Series | THM14EX Input Input: Capacitive Humidity Sensor & Pt 1000 Measuring range: Temperature: -20 … 80°C Humidity: 0 … 100 %RH Output Output: 4 … 20 mA Signal connection: 2 -wire Accuracy: ±0.3°C 0.002°C x tactual / Humidity:±2%RH(20 … 80%RH) Temperature error: 0.2%RH/°C Load resistance: 4 … 20 mA ≦ 500 Ω Output calibration(ZERO & SPAN) Adjustment Span: 10%of zero-point and full-scale Response time(Temp. : 25°C ; Air velocity ≧1 m/s): t90 Electrical Power supply: DC 24 V±10% Ui=24V Li=100mA Pi=0.78W Ci≈0 Li≈0 Current consumption: DC Electrical connection: 1/2″NPT Internal thread Environment Medium: Air Operating Temp.: -20 … 80°C Operating Humid.: 0 …100%RH (Non-condensing) Storage temperature: -20 … 80°C Installation Installation: Metal quick connector (Suggested option) Protection IP rating: IP66 Electrical protection: █ Polarity reversal protection █ Over voltage █Short circuit Certification Certification: NEPSI Explosion-proof mark: Ex ia IIC T4 Ga; Ex tD A21 IP66 T95°C Material Material: SUS304/ Rugged aluminum Weight: Metal : 650 g (without wire) Temperature and Humidity Transmitter EX-Series | THM14EX
