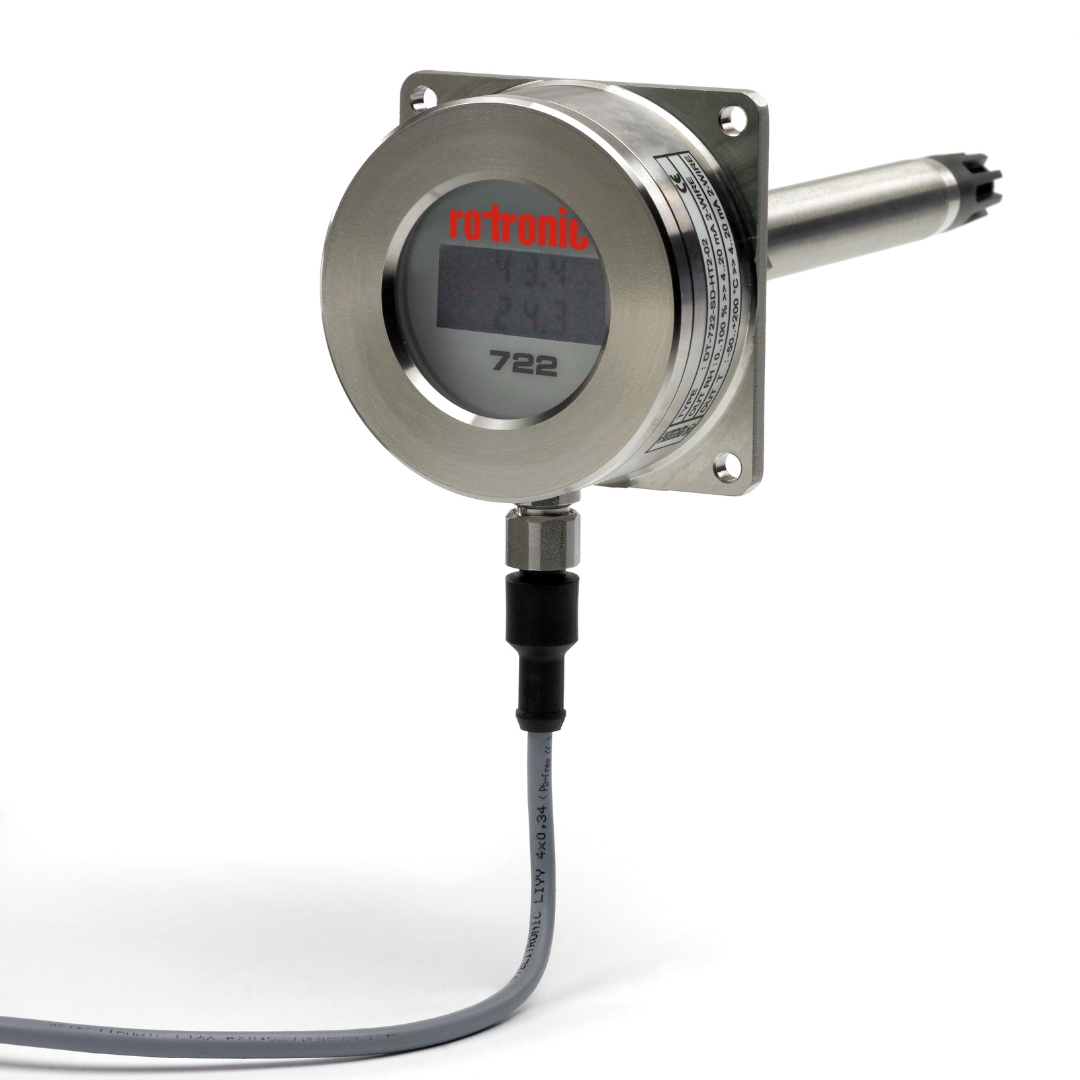

Industrial Humidity and Temperature Transmitter | DT722

$ 30.08

Categories: Samsung Lcd/Led,

Description Industrial Humidity and Temperature Transmitter | DT722 Technical Information Performance Measurement range (RH) 0…100 %rh Measurement range (T) -40…150 °C (-40…302 °F) Accuracy @ 25 °C (77 °F) humidity < ±2 %rh (5…95 %rh) Accuracy @ 25 °C (77 °F) temperature ±0.2 °C (±0.36 °F) typical Stability – RH sensor ± ±1 %rh/year Response time – RH sensor <10 sec typical (for 90 % of the step change) Electrical specifications Output signal 4…20 mA Supply voltage 8…32 V DC Supply voltage influence ±0.01 %rh/V typical Operating humidity Operating humidity probe, housing, storage 10…95 %rh (non-condensing) Operating temperatures Probe -40…150 °C (-40…302 °F) Housing -20…70 °C (-4…158 °F) Storage -30…75 °C (-22…167 °F) Mechanical specifications Ingress protection IP65 (NEMA 4 level) Housing material Stainless steel Weight 200 mm/800 g (7.87″/28.22 oz) 300 mm/900 g (11.81″/31.75 oz) 500mm/1040 g (19.69″/36.68 oz) 900 mm/1412 g (35.43″/49.80 oz) Electrical connections 5 pin, M12 Industrial Humidity and Temperature Transmitter | DT722
