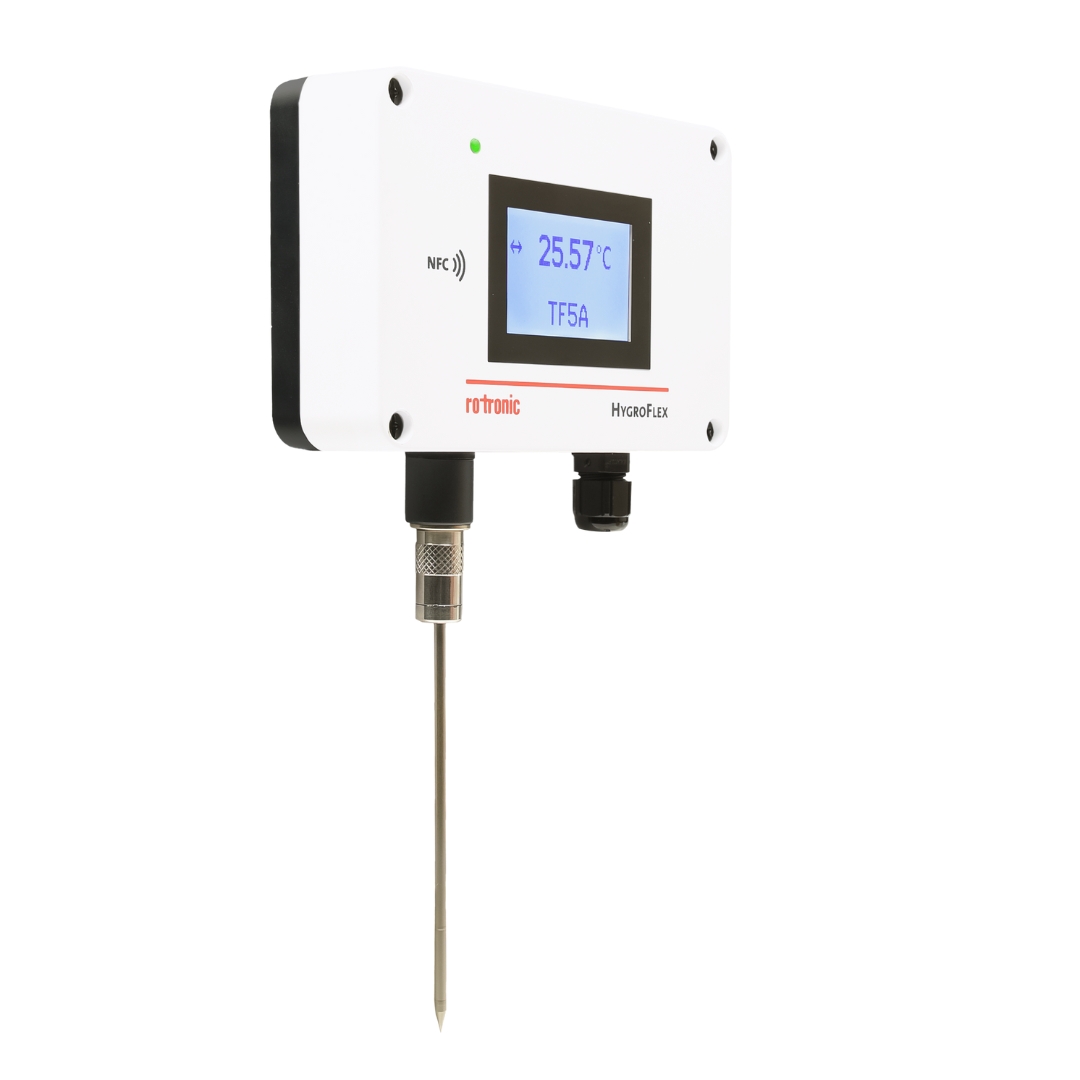

Description Advanced Temperature Transmitter | TF5A TF5A-2 2-wire TF5A-3 / TF5A-D 3/4-wire Temperature probe PT100 Class A probes, various types Accuracy @ 23°C ± 0.1°C Initialisation time Typically, 5 sec. Measurement interval 1 sec. Measurement range -200…600 °C (probe dependent) Range of applications -10…60 °C with display -40…80 °C without display Display Resolution to 2 decimal places Output signals analog 4…20 mA Freely scalable 0…1/5/10 V, 0…20, 4…20 mA Resolution analogue output 15 Bit Output signal digital – RS-485 signals on screw terminal Cable connections 1 x M12, screw terminals Power supply 10…28 VDC 18…36 VDC Circuit type 2-wire 3 /4 wire Current consumption 2x23mA max.80 mA (when both outputs are connected) Load per analogue output Max. 500 Ω Interface UART, NFC and USB Software HygroSoft Housing material PC-ABS Dimensions 122 x 82 x 40.5 mm Weight 204 g IP-Protection IP65 Soldering material Lead free (RoHS-Directive 2011/65/ EU) Standards CE Conformity 2014/30/EU Conformity GAMP5 and FDA 21 CFR Part 11 ¹ FDA conformity is applicable only when the device is operated in combination with the HygroSoft software. Probes for Temperature Transmitters Type Accuracy @ 23°C (Class A) Application Range Cable / Operating range at connector AC1900 Fixed probe, 100 mm x 3 mm ± 0.20 °C -50…300 °C -40…105 °C without cable AC1903 Cable probe, 200 x 6 mm, not waterproof ± 0.20 °C -50…350 °C -40…105 °C 2 m, thermoplastic cable AC1904 Cable probe, 50 mm x 6 mm, waterproof ± 0.20 °C -50…105 °C -40…105 °C 2 m, thermoplastic cable AC1909 Fixed probe, 100 mm x 4.5mm, air measurement ± 0.20 °C -50…150 °C -40…105 °C without cable AC1913-A Kapton foil probe, 20 x 15 x 2 mm ± 0.20 °C -50…200 °C -40…105 °C 1 m, four PFA wires AC1916-A-T Cable probe, 60 mm x 6 mm, waterproof, high temperature ± 0.20 °C -100…250 °C -40…85 °C 2 m PTFE cable Compatibility: TF5A all versions. Advanced Temperature Transmitter | TF5A
