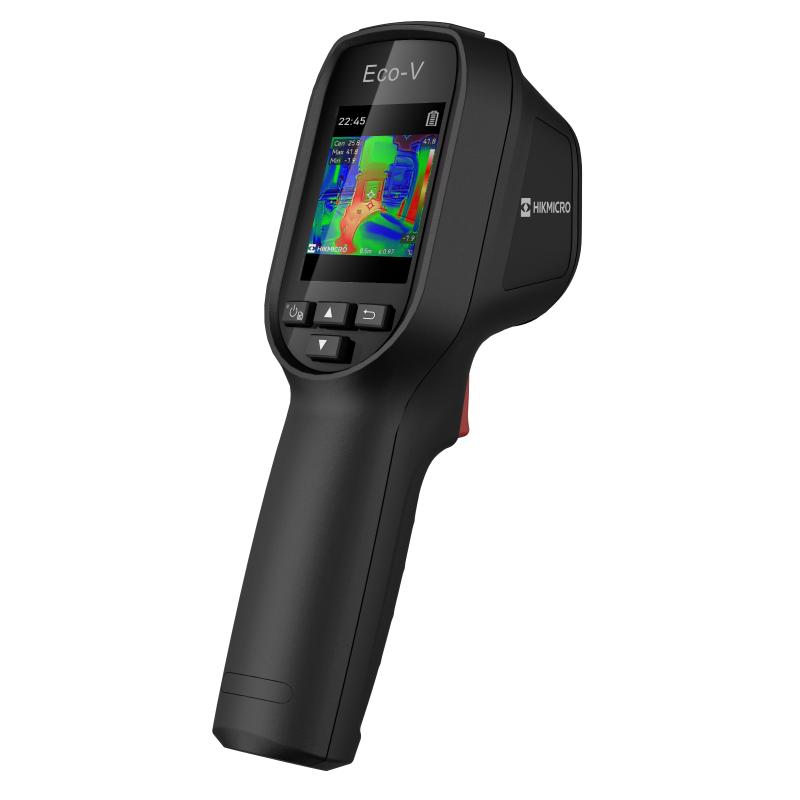

Description Economical Thermal Imager | ECO Eco Eco-V Infrared Image IR Resolution 96 × 96 (9,216 pixels) 96 × 96 (9,216 pixels) NETD < 50 mK (@ 25 °C, F#=1.0) < 50 mK (@ 25 °C, F#=1.0) Image Frequency 25 Hz 25 Hz Detector Pitch 12 μm 12 μm Spectral Range 7.5 to 14 μm 7.5 to 14 μm Focal Length 1.35 mm 1.35 mm F-number F1.0 F1.0 Field of View (FOV) 50° × 50° 50° × 50° Spatial Resolution (IFOV) 8.89 mrad 8.89 mrad Focus Mode Focus Free Focus Free Image Display Visual Camera – 640 × 480 Display 240 × 320 Resolution, 2.4” LCD Screen 240 × 320 Resolution, 2.4” LCD Screen Image Modes Thermal Thermal/Visual/Fusion Colour Palettes White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion Colour Alarm Above alarm Above alarm Measurement and Analysis Object Temperature Range -20°C to 550°C (-4 °F to 1022 °F) -20°C to 550°C (-4 °F to 1022 °F) Accuracy Max (±2°C, ±2%) at ambient temperature 25°C and object temperature above 0°C Max (±2°C, ±2%) at ambient temperature 25°C and object temperature above 0°C Measurement Tools Center Spot, Hot Spot, Cold Spot Center Spot, Hot Spot, Cold Spot Level and Span Mode Auto/Manual Auto/Manual Data Storage and Communication Storage Media Built-in 4 GB flash memory Built-in 4G eMMC (user available storage space is less than the nominal capacity) Image Storage Capacity Approx. 30,000 Images Approx. 18,000 Images General USB Interface USB Type-C USB Type-C Battery Type Rechargeable Li-ion battery Rechargeable Li-ion battery Battery Operating Time Approx. 8 hours Approx. 8 hours Battery Charging Time ±3 hours fully charged (Adapter Output：5 V 2 A ) ± 3 hours fully charged (Adapter Output：5 V 2 A ) Protection Level IP54 IP54 Drop Test Height 2 m 2 m Working Temperature Range -10 °C to 50 °C -10 °C to 50 °C Storage Temperature Range -40 °C to 70 °C -40 °C to 70 °C Relative Humidity < 95% non-condensing < 95% non-condensing Weight Approx. 290 g Approx. 290 g Dimension 196 × 117 × 59 mm 196 × 117 × 59 mm Tripod Mounting UNC ¼”-20 UNC ¼”-20 Laser Yes, Class II Yes, Class II Economical Thermal Imager | ECO
