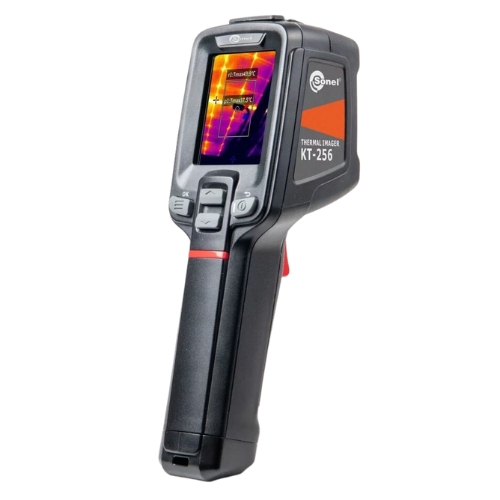

Basic Diagnostics Thermal Imaging Camera | KT-256

$ 98.27

Categories: Samsung Lcd/Led,

Description Basic Diagnostics Thermal Imaging Camera | KT-256 Parameter Description Detector resolution 256 x 192 / 12 μm Detector 7.5~14 μm Frame rate 25 Hz Sensitivity 45 mK Lens (field of vision / focal distance) 56° x 48° / 3.2 mm Spatial resolution (IFOV) 3.75 mrad Display 2.4″ 240 x 320 px LCD Image mode IR / Visual / Infrafusion MIF / PiP Temperature range Range 1: -20°C… 150°C | -20°F… 302°F Range 2: 100°C… 550°C | 212°F…1022°F Accuracy ±2°C | ±4°F or ±2% of reading (for ambient temperature 15°C…30°C, object temp. ≥0°C) Image analysis mode Point. 3 areas. Temperature indication: min, max. Temp. alarm Palettes 6 Emissivity Selectable from 0.01 to 1.00 or from the list Measurement adjustment Adjustable distance, ambient temperature (reflected) Image file format JPG Built-in features Visual camera 5 MPix, LED flashlight, laser pointer Interfaces microSD card slot (max. 32 GB), USB type C, tripod Power supply Li-Ion battery (operating time >16 hours), built-in charger (charging time) Basic Diagnostics Thermal Imaging Camera | KT-256
