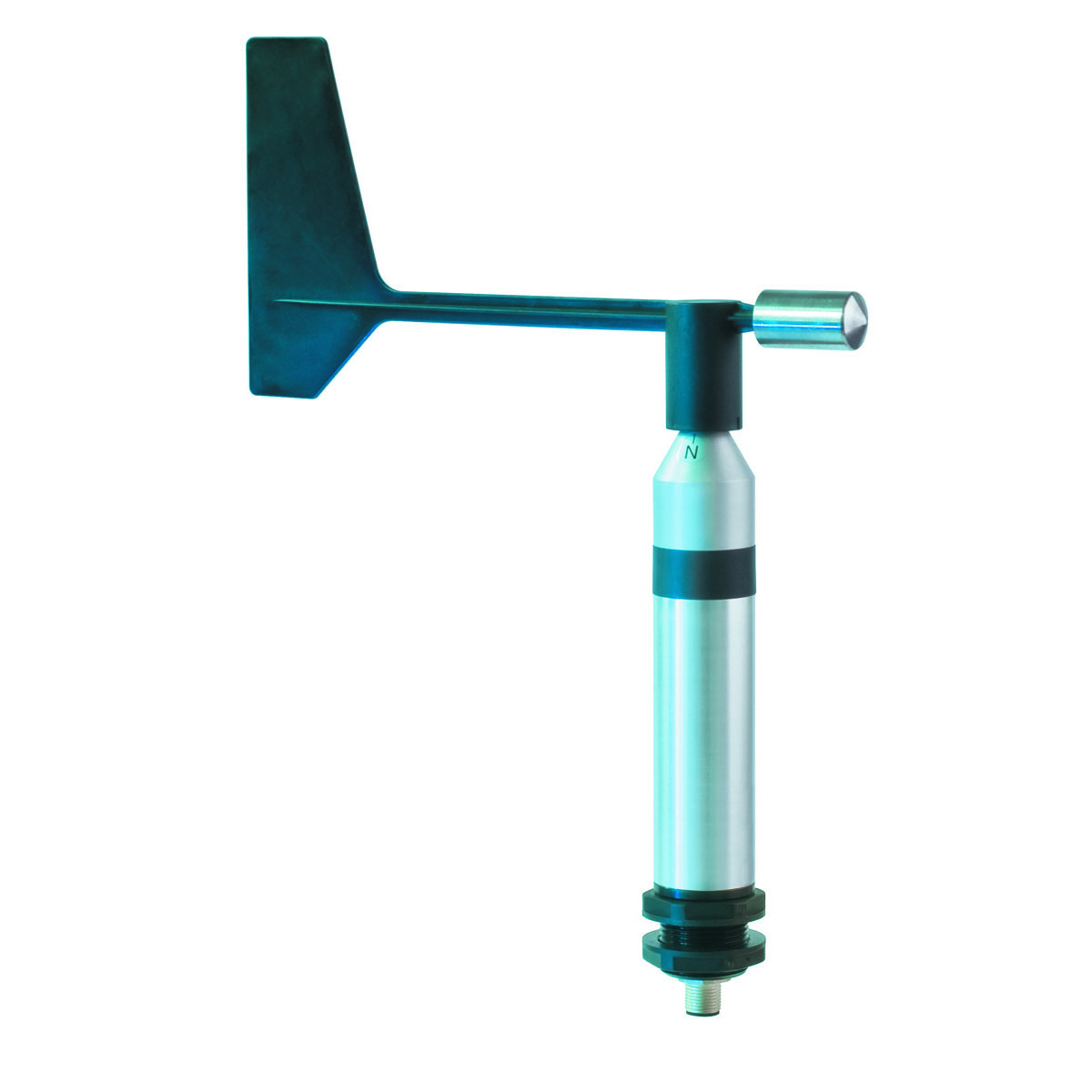

Description Industrial Wind Direction Meter |14567 Pro Id-No. 00.14567.100000 Wind direction 0…20 mA output 00.14567.100040 Wind direction 4…20 mA output 00.14567.100180 Wind direction 0…10 VDC output = 0…360° Measuring range 0…360° Accuracy ± 2° Resolution 2° Starting value < 0.7 m/s Output max. load 600 Ohms | 0(4)…20 mA Range of application temperatures -30… 70 °C heated | wind speed 0…60 m/s Supply voltage 24 (20…28) VDC | max. 800 mA | electrically controlled heating – 18 W Measuring elements plastic | wind vane – dimensionally stable Measuring principle Hall Sensor Array Dimensions wind vane L 232 mm – H 327 mm Housing aluminium | anodised | IP 55 | Ø 32 mm |bore Ø 30 mm for mounting at traverse Weight approx. 0.35 kg Included in delivery cable | with plug |12 m | ready-for-use Industrial Wind Direction Meter |14567 Pro
