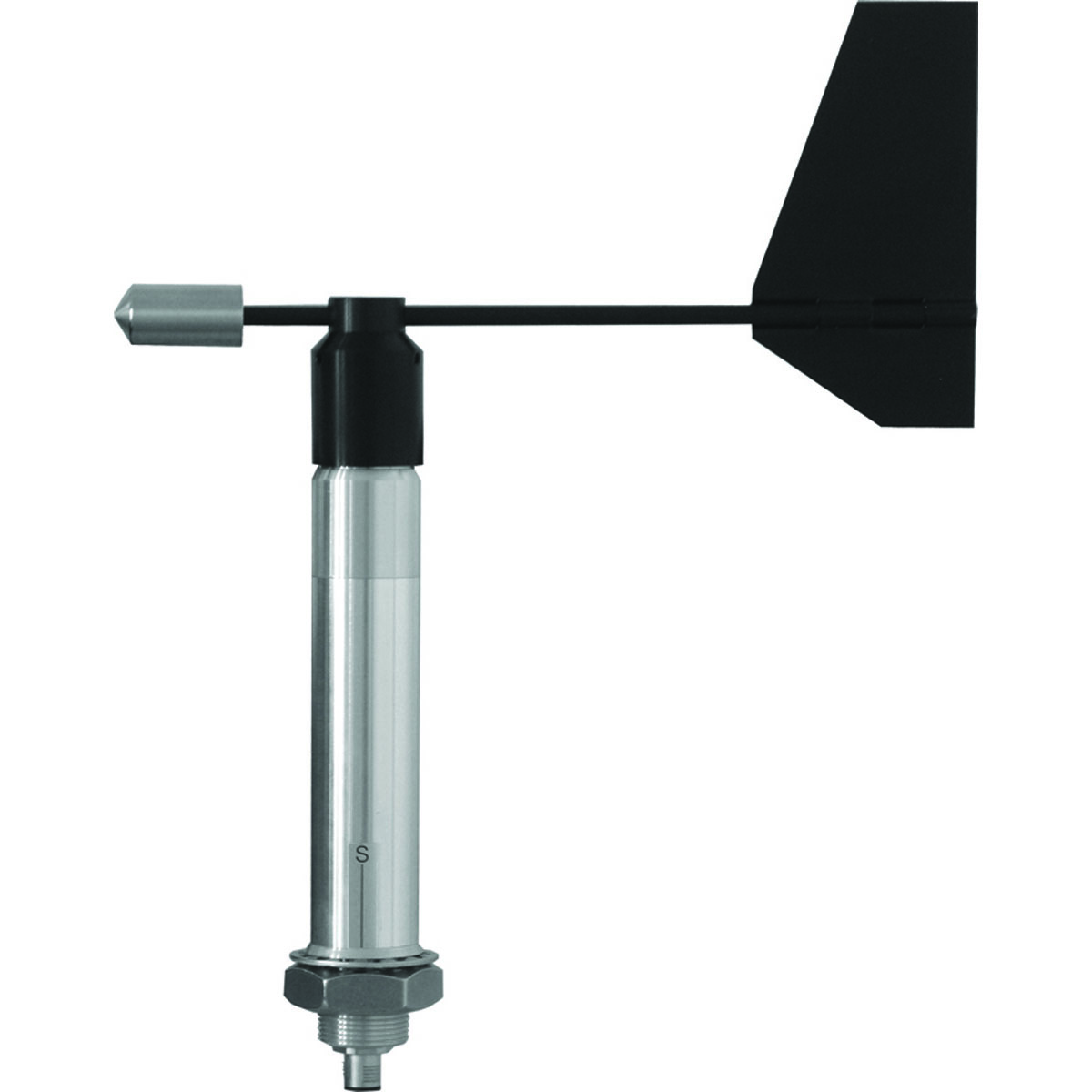

Description Wind Direction Sensor | PRO-Wea Id-No. 00.14523.130040 PRO-WEA 00.14523.230040 PRO-WEA RF Measuring range 0…360° Accuracy ± 2° Resolution < 1° Starting value < 0.5 m/s Output 4 Hz update rate 4…20 mA = 0…360° at the current output (4…20 mA) a load of max. 600 Ohm must not be exceeded Range of application temperatures -40… 70 °C heated wind speed max. gusts 100 m/s humidity 0…100 % r.h. Supply voltage 24 VDC (20…28 VDC) ? 18 W heating max. 800 mA the heating within the sensor head prevents blocking of the moving parts under most climatological conditions Measuring elements aluminium special surface reinforced wind vane PRO-WEA RF Measuring principle Hall Sensor Array, non-contact Housing seawater resistant aluminium IP 65 in an upright position M12 cable-plug connection stainless steel nut and lock washer Weight 0.4 kg Included in delivery 1 sensor 15 m cable with 4 pin M12 plug connector Wind Direction Sensor | PRO-Wea
