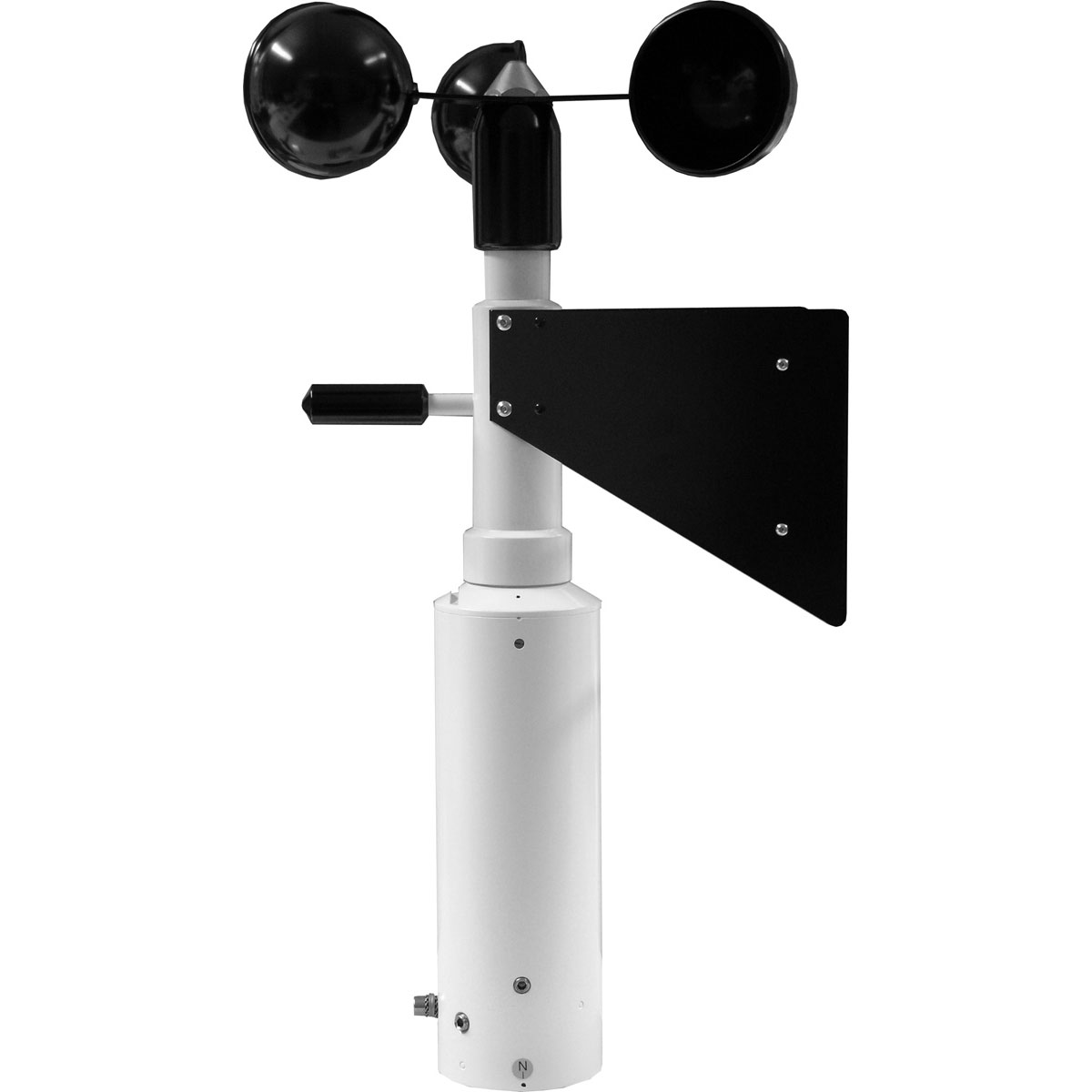

Description Combined Naval Wind Sensor | 24513 Id-No. 00.24513.205010 Meas. range wind direction 0…360° Meas. range wind speed 0.4…60 m/s Accuracy wind direction ± 2.5° Accuracy wind speed ± 2 % FS Resolution wind direction < 1° Resolution wind speed 0.1 m/s Starting value wind direction: < 0.8 m/s related to a deflection of the wind vane of 90° wind speed: ≤ 0.4 m/s Protocols NMEA 0183 | WIMWV InterfaceS Serial RS 485/ Talker baud rate 4800 1 Hz (at measuring cycle 4 Hz) 8 N 1 Range of application temperatures -35… 70 °C heated wind speed 0…60 m/s Supply voltage 24 VDC/ 50 mA heating 24 VDC/ 1.5 A/ max. 35 VA electrically controlled Measuring elements wind direction: wedge-shaped wind vane wind speed: 3-armed cup rotor Dimensions cup rotor Ø 280 mm H 520 mm for mounting pipe Ø 50 mm Housing seawater resistant aluminium Weight 2.7 kg Options (order separately) Accessories (order separately) Data logger met[LOG] Visualisation and evaluation software MeteoWare-CS3 Display unit METEO- LCD/NAV 32.16420.066100 Sensorkabel, 10 m 12-pole bayonet plug Combined Naval Wind Sensor | 24513
